當前位置：首頁 » 行業資訊 » LORA模塊低抖動專用晶振530FC125M000DG/125MHz/XO/7050mm/2.5V/SMD-6

LORA模塊低抖動專用晶振530FC125M000DG/125MHz/XO/7050mm/2.5V/SMD-6

返回列表 來源：金洛鑫 瀏覽：- 發布日期：2023-05-19 15:39:27【大 中 小】

Silicon晶振Si530 XO利用天空工作解決方案的先進DSPLL®電路提供一個高頻低抖動時鐘。Si530可提供從10到945MHz的任意速率輸出頻率，并選擇頻率到1400MHz。與傳統的XO不同，每個輸出頻率都需要一個不同的晶體，石英晶體振蕩器Si530使用一個固定的晶體來提供一個大范圍的輸出頻率。這種基于集成電路的方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了優越的電源噪聲抑制，簡化了在通信系統中通常發現的噪聲環境中產生低抖動時鐘的任務。有源晶振Si530 IC的XO可在工廠中進行配置，可用于各種用戶規格，包括頻率、電源電壓、輸出格式和溫度穩定性。特定的配置在裝運時被工廠編程，從而消除了與定制振蕩器相關的長交貨時間。LORA模塊低抖動專用晶振530FC125M000DG/125MHz/XO/7050mm/2.5V/SMD-6

原廠代碼 貼片晶振廠家 型號 頻率 電壓 頻率穩定度 包裝/封裝
530FB125M000DG Silicon晶振 Si530 125MHz 2.5V ±20ppm 6-SMD, No Lead
530BB125M000DG Silicon晶振 Si530 125MHz 3.3V ±20ppm 6-SMD, No Lead
530FB200M000DG Silicon晶振 Si530 200MHz 2.5V ±20ppm 6-SMD, No Lead
530BC156M250DG Silicon晶振 Si530 156.25MHz 3.3V ±7ppm 6-SMD, No Lead
530BA125M000DG Silicon晶振 Si530 125MHz 3.3V ±50ppm 6-SMD, No Lead
530BB100M000DG Silicon晶振 Si530 100MHz 3.3V ±20ppm 6-SMD, No Lead
530FC156M250DG Silicon晶振 Si530 156.25MHz 2.5V ±7ppm 6-SMD, No Lead
530FA156M250DG Silicon晶振 Si530 156.25MHz 2.5V ±50ppm 6-SMD, No Lead
530FC125M000DG Silicon晶振 Si530 125MHz 2.5V ±7ppm 6-SMD, No Lead
530AC622M080DG Silicon晶振 Si530 622.08MHz 3.3V ±7ppm 6-SMD, No Lead
530AC125M000DG Silicon晶振 Si530 125MHz 3.3V ±7ppm 6-SMD, No Lead
530AC200M000DG Silicon晶振 Si530 200MHz 3.3V ±7ppm 6-SMD, No Lead
530BC200M000DG Silicon晶振 Si530 200MHz 3.3V ±7ppm 6-SMD, No Lead
530FC200M000DG Silicon晶振 Si530 200MHz 2.5V ±7ppm 6-SMD, No Lead
530AC156M250DG Silicon晶振 Si530 156.25MHz 3.3V ±7ppm 6-SMD, No Lead
530AC155M520DG Silicon晶振 Si530 155.52MHz 3.3V ±7ppm 6-SMD, No Lead
530BC148M500DG Silicon晶振 Si530 148.5MHz 3.3V ±7ppm 6-SMD, No Lead
530AC106M250DG Silicon晶振 Si530 106.25MHz 3.3V ±7ppm 6-SMD, No Lead
530EC106M250DG Silicon晶振 Si530 106.25MHz 2.5V ±7ppm 6-SMD, No Lead
530FC106M250DG Silicon晶振 Si530 106.25MHz 2.5V ±7ppm 6-SMD, No Lead
530BC106M250DG Silicon晶振 Si530 106.25MHz 3.3V ±7ppm 6-SMD, No Lead
530EC155M520DG Silicon晶振 Si530 155.52MHz 2.5V ±7ppm 6-SMD, No Lead
530EC187M500DG Silicon晶振 Si530 187.5MHz 2.5V ±7ppm 6-SMD, No Lead
530AC000110DG Silicon晶振 Si530 148.35165MHz 3.3V ±7ppm 6-SMD, No Lead
530AC148M500DG Silicon晶振 Si530 148.5MHz 3.3V ±7ppm 6-SMD, No Lead
530EC000110DG Silicon晶振 Si530 148.35165MHz 2.5V ±7ppm 6-SMD, No Lead
530FC000110DG Silicon晶振 Si530 148.35165MHz 2.5V ±7ppm 6-SMD, No Lead
530BC155M520DG Silicon晶振 Si530 155.52MHz 3.3V ±7ppm 6-SMD, No Lead
530EC156M250DG 貼片晶振 Si530 156.25MHz 2.5V ±7ppm 6-SMD, No Lead
530AC187M500DG Silicon晶振 Si530 187.5MHz 3.3V ±7ppm 6-SMD, No Lead
530BC187M500DG Silicon晶振 Si530 187.5MHz 3.3V ±7ppm 6-SMD, No Lead
530FC187M500DG Silicon晶振 Si530 187.5MHz 2.5V ±7ppm 6-SMD, No Lead
530EC148M500DG Silicon晶振 Si530 148.5MHz 2.5V ±7ppm 6-SMD, No Lead
530EC200M000DG Silicon晶振 Si530 200MHz 2.5V ±7ppm 6-SMD, No Lead
530FC155M520DG Silicon晶振 Si530 155.52MHz 2.5V ±7ppm 6-SMD, No Lead
530BC000110DG Silicon晶振 Si530 148.35165MHz 3.3V ±7ppm 6-SMD, No Lead
530FC148M500DG Silicon晶振 Si530 148.5MHz 2.5V ±7ppm 6-SMD, No Lead
530EC312M500DG Silicon晶振 Si530 312.5MHz 2.5V ±7ppm 6-SMD, No Lead
530BC250M000DG Silicon晶振 Si530 250MHz 3.3V ±7ppm 6-SMD, No Lead
530EC311M040DG Silicon晶振 Si530 311.04MHz 2.5V ±7ppm 6-SMD, No Lead
530FC311M040DG Silicon晶振 Si530 311.04MHz 2.5V ±7ppm 6-SMD, No Lead
530FC622M080DG Silicon晶振 Si530 622.08MHz 2.5V ±7ppm 6-SMD, No Lead
530BC311M040DG Silicon晶振 Si530 311.04MHz 3.3V ±7ppm 6-SMD, No Lead
530EC622M080DG Silicon晶振 Si530 622.08MHz 2.5V ±7ppm 6-SMD, No Lead
530BC622M080DG Silicon晶振 Si530 622.08MHz 3.3V ±7ppm 6-SMD, No Lead
530AC311M040DG Silicon晶振 Si530 311.04MHz 3.3V ±7ppm 6-SMD, No Lead
530FC312M500DG Silicon晶振 Si530 312.5MHz 2.5V ±7ppm 6-SMD, No Lead
530AC312M500DG Silicon晶振 Si530 312.5MHz 3.3V ±7ppm 6-SMD, No Lead
530EC250M000DG Silicon晶振 Si530 250MHz 2.5V ±7ppm 6-SMD, No Lead
530AC250M000DG Silicon晶振 Si530 250MHz 3.3V ±7ppm 6-SMD, No Lead
530FC250M000DG Silicon晶振 Si530 250MHz 2.5V ±7ppm 6-SMD, No Lead
530BC312M500DG Silicon晶振 Si530 312.5MHz 3.3V ±7ppm 6-SMD, No Lead
530FC50M0000DG Silicon晶振 Si530 50MHz 2.5V ±7ppm 6-SMD, No Lead
530AA156M250DG Silicon晶振 Si530 156.25MHz 3.3V ±50ppm 6-SMD, No Lead
530FB100M000DG Silicon晶振 Si530 100MHz 2.5V ±20ppm 6-SMD, No Lead
530BC125M000DG Silicon晶振 Si530 125MHz 3.3V ±7ppm 6-SMD, No Lead
530EC125M000DG Silicon晶振 Si530 125MHz 2.5V ±7ppm 6-SMD, No Lead
530CA28M6000DG Silicon晶振 Si530 28.6MHz 3.3V ±50ppm 6-SMD, No Lead
530AC125M000DGR Silicon晶振 Si530 125MHz 3.3V ±7ppm 6-SMD, No Lead
530BC125M000DGR Silicon晶振 Si530 125MHz 3.3V ±7ppm 6-SMD, No Lead
530EC125M000DGR Silicon晶振 Si530 125MHz 2.5V ±7ppm 6-SMD, No Lead
530AC106M250DGR Silicon晶振 Si530 106.25MHz 3.3V ±7ppm 6-SMD, No Lead
530BC106M250DGR Silicon晶振 Si530 106.25MHz 3.3V ±7ppm 6-SMD, No Lead
530EC106M250DGR Silicon晶振 Si530 106.25MHz 2.5V ±7ppm 6-SMD, No Lead
530FC106M250DGR Silicon晶振 Si530 106.25MHz 2.5V ±7ppm 6-SMD, No Lead
530BC25M0000DGR Silicon晶振 Si530 25MHz 3.3V ±7ppm 6-SMD, No Lead
530RB150M000DG Silicon晶振 Si530 150MHz 2.5V ±20ppm 6-SMD, No Lead
530RB200M000DG Silicon晶振 Si530 200MHz 2.5V ±20ppm 6-SMD, No Lead
530BC100M000DG Silicon晶振 Si530 100MHz 3.3V ±20ppm 6-SMD, No Lead
530AC155M520DGR Silicon晶振 Si530 155.52MHz 3.3V ±7ppm 6-SMD, No Lead
530AC156M250DGR Silicon晶振 Si530 156.25MHz 3.3V ±7ppm 6-SMD, No Lead
530BC155M520DGR Silicon晶振 Si530 155.52MHz 3.3V ±7ppm 6-SMD, No Lead
530BC156M250DGR Silicon晶振 Si530 156.25MHz 3.3V ±7ppm 6-SMD, No Lead
530EC155M520DGR Silicon晶振 Si530 155.52MHz 2.5V ±7ppm 6-SMD, No Lead
530EC156M250DGR Silicon晶振 Si530 156.25MHz 2.5V ±7ppm 6-SMD, No Lead
530FC155M520DGR Silicon晶振 Si530 155.52MHz 2.5V ±7ppm 6-SMD, No Lead
530FC156M250DGR Silicon晶振 Si530 156.25MHz 2.5V ±7ppm 6-SMD, No Lead
530AC187M500DGR Silicon晶振 Si530 187.5MHz 3.3V ±7ppm 6-SMD, No Lead
530BC187M500DGR Silicon晶振 Si530 187.5MHz 3.3V ±7ppm 6-SMD, No Lead
530EC187M500DGR Silicon晶振 Si530 187.5MHz 2.5V ±7ppm 6-SMD, No Lead
530FC187M500DGR Silicon晶振 Si530 187.5MHz 2.5V ±7ppm 6-SMD, No Lead
530AC000110DGR 進口晶振 Si530 148.35165MHz 3.3V ±7ppm 6-SMD, No Lead
530AC148M500DGR Silicon晶振 Si530 148.5MHz 3.3V ±7ppm 6-SMD, No Lead
530AC200M000DGR Silicon晶振 Si530 200MHz 3.3V ±7ppm 6-SMD, No Lead
530BC000110DGR Silicon晶振 Si530 148.35165MHz 3.3V ±7ppm 6-SMD, No Lead
530BC148M500DGR Silicon晶振 Si530 148.5MHz 3.3V ±7ppm 6-SMD, No Lead
530BC200M000DGR Silicon晶振 Si530 200MHz 3.3V ±7ppm 6-SMD, No Lead
530EC000110DGR Silicon晶振 Si530 148.35165MHz 2.5V ±7ppm 6-SMD, No Lead
530EC148M500DGR Silicon晶振 Si530 148.5MHz 2.5V ±7ppm 6-SMD, No Lead
530EC200M000DGR Silicon晶振 Si530 200MHz 2.5V ±7ppm 6-SMD, No Lead
530FC000110DGR Silicon晶振 Si530 148.35165MHz 2.5V ±7ppm 6-SMD, No Lead
530FC148M500DGR Silicon晶振 Si530 148.5MHz 2.5V ±7ppm 6-SMD, No Lead
530BC130M250DG Silicon晶振 Si530 130.25MHz 3.3V ±7ppm 6-SMD, No Lead
530BC154M000DG Silicon晶振 Si530 154MHz 3.3V ±7ppm 6-SMD, No Lead
530AC312M500DGR Silicon晶振 Si530 312.5MHz 3.3V ±7ppm 6-SMD, No Lead
530BC312M500DGR Silicon晶振 Si530 312.5MHz 3.3V ±7ppm 6-SMD, No Lead
530EC312M500DGR Silicon晶振 Si530 312.5MHz 2.5V ±7ppm 6-SMD, No Lead
530FC312M500DGR Silicon晶振 Si530 312.5MHz 2.5V ±7ppm 6-SMD, No Lead
530AC250M000DGR Silicon晶振 Si530 250MHz 3.3V ±7ppm 6-SMD, No Lead
530AC311M040DGR Silicon晶振 Si530 311.04MHz 3.3V ±7ppm 6-SMD, No Lead
530AC622M080DGR Silicon晶振 Si530 622.08MHz 3.3V ±7ppm 6-SMD, No Lead
530BC250M000DGR Silicon晶振 Si530 250MHz 3.3V ±7ppm 6-SMD, No Lead
530BC311M040DGR Silicon晶振 Si530 311.04MHz 3.3V ±7ppm 6-SMD, No Lead
530BC622M080DGR Silicon晶振 Si530 622.08MHz 3.3V ±7ppm 6-SMD, No Lead
530EC250M000DGR Silicon晶振 Si530 250MHz 2.5V ±7ppm 6-SMD, No Lead
530EC311M040DGR Silicon晶振 Si530 311.04MHz 2.5V ±7ppm 6-SMD, No Lead
530EC622M080DGR Silicon晶振 Si530 622.08MHz 2.5V ±7ppm 6-SMD, No Lead
530FC250M000DGR Silicon晶振 Si530 250MHz 2.5V ±7ppm 6-SMD, No Lead
530FC311M040DGR Silicon晶振 Si530 311.04MHz 2.5V ±7ppm 6-SMD, No Lead
530FC622M080DGR Silicon晶振 Si530 622.08MHz 2.5V ±7ppm 6-SMD, No Lead
530CA40M0000BG Silicon晶振 Si530 40MHz 3.3V ±50ppm 6-SMD, No Lead
LORA模塊低抖動專用晶振530FC125M000DG/125MHz/XO/7050mm/2.5V/SMD-6

Si530晶振特點：

可與任意速率輸出頻率從10MHz到945MHz和選擇頻率1.4GHz

第三代DSPLL®具有優越的抖動性能

比基于saw的振蕩器好3倍的頻率穩定性

內部固定晶體頻率確保高可靠性和低老化

可用CMOS，LVPECL，LVDS，和CML輸出差分晶振

3.3V，2.5V，和1.8V供應選項

工業標準7.0x5.0mm毫米包和針形

無鉛/RoHS兼容

應用于：超聲波SONET/SDH，網絡，SD/高清視頻，測試和測量，時鐘和數據恢復，F(xiàn)PGA/ASIC時鐘生成

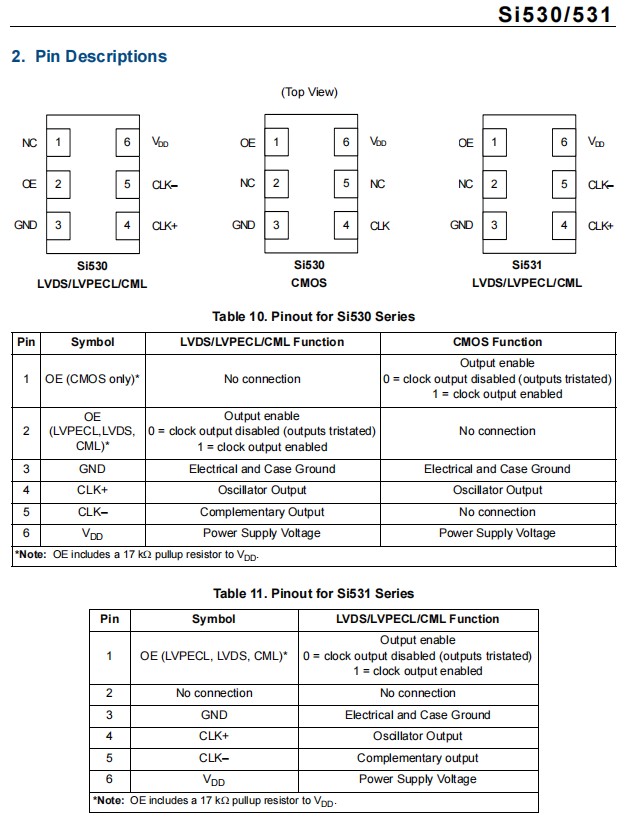

Si530，Si531
