ABRACON發布性能超強的超低抖動晶振,AK2APAF1-156.2500進口晶振

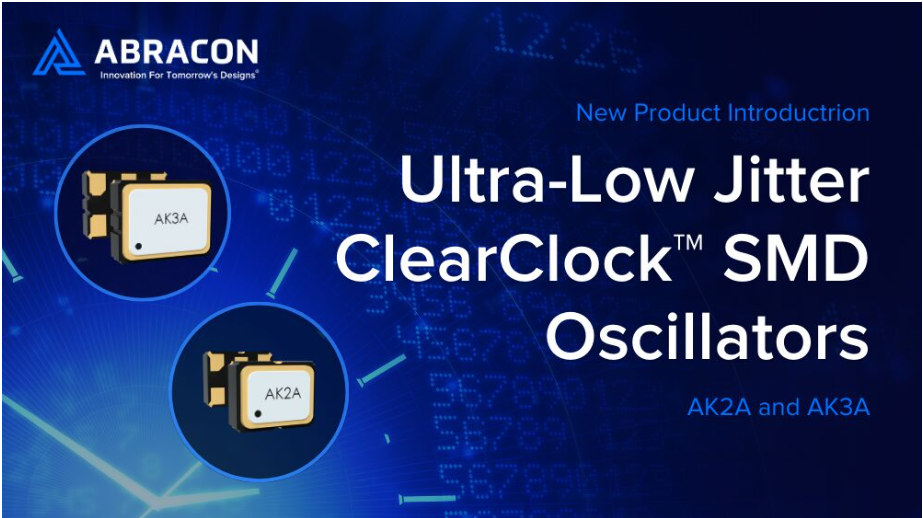

Abracon宣布推出新型超低抖動ClearClockSMD振蕩器，德克薩斯州斯派斯伍德，Abracon晶振是頻率控制、定時、功率、磁性、射頻和天線解決方案的領先供應商，通過增加全新的AK2A和AK3A系列振蕩器，擴展了其高性能ClearClock振蕩器系列。Abracon的這一全新超低抖動SMD振蕩器系列旨在為各種高速應用提供穩定準確的時鐘信號，例如光收發器和模塊、數據中心、網絡交換機和網關以及100G/200G/400G/800G以太網。AK2A和AK3A系列提供可靠、高效的振蕩，同時在-25°C至+40°C的溫度范圍內保持85ppm的穩定性，在-15°C至+20°C的溫度范圍內保持70ppm的穩定性。
這些新型ClearClockSDM晶振非常適合需要100至212/5MHz載波頻率且需要高達400Gbps通道速率的應用。AK2A和AK5A振蕩器的封裝尺寸支持3.2x2.5和2.5x2.3的行業標準封裝尺寸，提供節省空間的設計，與以前的型號相比，抖動性能顯著提高。這些振蕩器還支持各種差分輸出，使其能夠輕松集成到各種系統中。第三種泛音ClearClock技術減輕了基于鎖相環（PLL）的乘法，消除了降低整體功耗的機會。
“新型AK2A和AK3A系列有源晶體振蕩器封裝尺寸小，RMS抖動性能極低，僅為83fs，”產品線經理RogerBurns解釋道。“這種組合使它們與以前的迭代不同，這些迭代僅在更大的封裝尺寸下可用，使這些新的ClearClock振蕩器非常適合光收發器，數據中心，存儲和服務器，網絡交換機和網關，100G/200G/400G/800G以太網，光纖通道和PCIe終端應用。
| ABRACON晶振 | 生產品牌 | 型號 | 類型 | 頻率 | 輸出 | 電壓 | 頻率穩定度 | 工作溫度 |
| ASV-48.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 48MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-50.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 50MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-11.0592MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 11.0592MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-50.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 50MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-3.6864MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 3.6864MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-33.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 33MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-7.3728MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 7.3728MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-12.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 12MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-3.6864MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 3.6864MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-24.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 24MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-25.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 25MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-30.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 30MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-10.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 10MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-16.384MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 16.384MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-27.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 27MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-60.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 60MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-18.432MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 18.432MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-29.4912MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 29.4912MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-8.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 8MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-24.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 24MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-16.384MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 16.384MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-33.333MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 33.333MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-30.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 30MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-10.000MHZ-LCS-T | Abracon LLC | ASV | XO (Standard) | 10MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-16.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 16MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-26.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 26MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-12.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 12MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-40.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 40MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-60.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 60MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-19.200MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 19.2MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-20.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 20MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-22.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 22MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-24.576MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 24.576MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA2-40.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 40MHz | HCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| ASA2-48.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 48MHz | HCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| ASA-25.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 25MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-3.6864MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 3.6864MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-30.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 30MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-38.400MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 38.4MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-48.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 48MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-7.3738MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 7.3738MHz | HCMOS, TTL | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA-8.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 8MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASV-50.000MHZ-LCS-T | Abracon LLC | ASV | XO (Standard) | 50MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-50.000MHZ-LCS-T | Abracon LLC | ASV | XO (Standard) | 50MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASV-40.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 40MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-24.576MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 24.576MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-27.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 27MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-18.432MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 18.432MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-8.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 8MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-14.7456MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 14.7456MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-20.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 20MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-4.000MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 4MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-14.31818MHZ-EJ-T | Abracon LLC | ASV | XO (Standard) | 14.31818MHz | HCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| ASV-133.333MHZ-EC-T | Abracon LLC | ASV | XO (Standard) | 133.333MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| ASA-27.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 27MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA2-12.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 12MHz | HCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| ASA2-27.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 27MHz | HCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| ASA-24.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 24MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASA2-25.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 25MHz | HCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| ASA2-26.000MHZ-L-T | Abracon LLC | ASA | XO (Standard) | 26MHz | HCMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| ASV-150.000MHZ-EC-T | Abracon LLC | ASV | XO (Standard) | 150MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| ASV-125.000MHZ-EC-T | Abracon LLC | ASV | XO (Standard) | 125MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| ASV-100.000MHZ-EC-T | Abracon LLC | ASV | XO (Standard) | 100MHz | HCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| ASV-14.31818MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 14.31818MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-12.0000MHZ-LC-S-T | Abracon LLC | ASV | XO (Standard) | 12MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| ASV-24.576MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 24.576MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-20.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 20MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
| ASV-10.000MHZ-E-T | Abracon LLC | ASV | XO (Standard) | 10MHz | HCMOS | 3.3V | ±100ppm | -20°C ~ 70°C |
