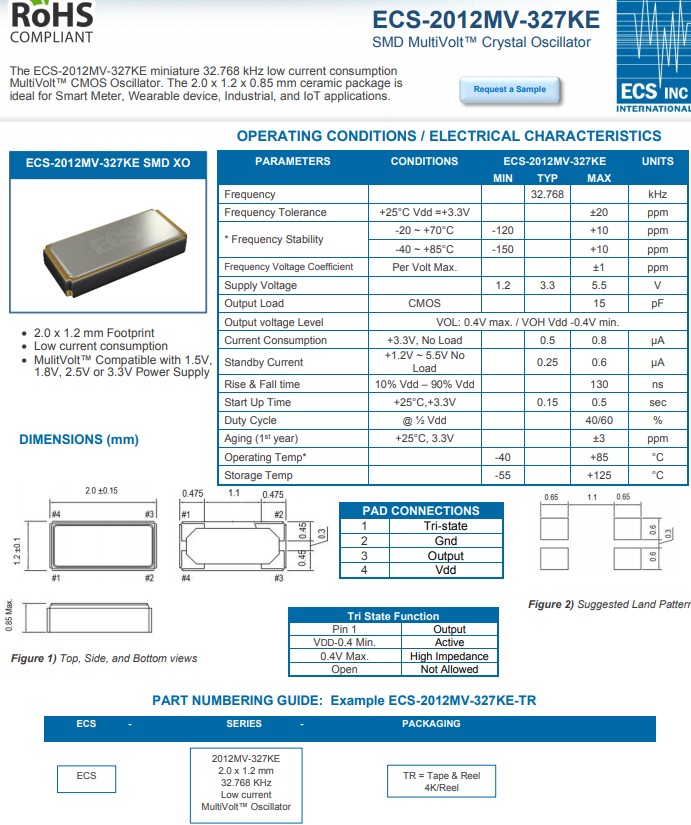

微型32.768K振蕩器ECS-2012MV-327KE-TR是智能儀器儀表專用晶振
ECS晶振新推出ECS-2012MV-327KE，是一款微型32.768KHz低電流消耗，多電壓™ CMOS振蕩器，小體積尺寸2.0x1.2x0.85mm陶瓷封裝四腳貼片晶振，作為MultiVolt的一部分，這些電子元件在-40°C至+85°C的標準工業工作溫度下提供32.768K的頻率、10ppm的頻率穩定性和0.5A的低功耗™ECS-2012MV-327KE是振蕩器系列，設計采用1.2V至5.5V的可變電源電壓或標準1.8V、2.5V、3.0V或3.3V電源供電。該器件針對各種無補償貼片振蕩器提供更高的穩定性，是智能儀表、可穿戴設備、工業和物聯網應用的理想之選。微型32.768K振蕩器ECS-2012MV-327KE-TR是智能儀器儀表專用晶振
微型32.768K振蕩器ECS-2012MV-327KE-TR是智能儀器儀表專用晶振
特點：
小體積尺寸：2.0x1.2x0.85mm四腳貼片晶振
頻率：32.768KHz
穩定性：-150至+10 ppm @-40℃至+85℃
溫度范圍：-40℃至+85℃
電流消耗：0.5A
多伏特銩支持+1.8V、+2.5V、+3.0V或+3.3V，或者1.2V至5.5V供給
HCMOS輸出
符合RoHS和REACH標準
應用：物聯網，產業的，無線的，可穿戴設備，智能電表，醫療(非維持生命)
原廠代碼
品牌
型號
頻率
工作溫度
ECS-2520S25-240-FN-TR
ECS Crystal
ECS-2520S
24MHz
-40°C ~ 85°C
ECS-2520S25-240-FN-TR
ECS Crystal
ECS-2520S
24MHz
-40°C ~ 85°C
ECS-2520S25-240-FN-TR
ECS Crystal
ECS-2520S
24MHz
-40°C ~ 85°C
ECS-2520S25-500-FN-TR
ECS Crystal
ECS-2520S
50MHz
-40°C ~ 85°C
ECS-2520S25-500-FN-TR
ECS Crystal
ECS-2520S
50MHz
-40°C ~ 85°C
ECS-2520S25-500-FN-TR
ECS Crystal
ECS-2520S
50MHz
-40°C ~ 85°C
ECS-2520S18-100-FN-TR
ECS Crystal
ECS-2520S
10MHz
-40°C ~ 85°C
ECS-2520S18-100-FN-TR
ECS Crystal
ECS-2520S
10MHz
-40°C ~ 85°C
ECS-2520S18-100-FN-TR
ECS Crystal
ECS-2520S
10MHz
-40°C ~ 85°C
ECS-2520S18-120-FN-TR
ECS Crystal
ECS-2520S
12MHz
-40°C ~ 85°C
ECS-2520S18-120-FN-TR
ECS石英晶振
ECS-2520S
12MHz
-40°C ~ 85°C
ECS-2520S18-120-FN-TR
ECS Crystal
ECS-2520S
12MHz
-40°C ~ 85°C
ECS-2520S18-160-FN-TR
ECS Crystal
ECS-2520S
16MHz
-40°C ~ 85°C
ECS-2520S18-160-FN-TR
ECS Crystal
ECS-2520S
16MHz
-40°C ~ 85°C
ECS-2520S18-160-FN-TR
ECS Crystal
ECS-2520S
16MHz
-40°C ~ 85°C
ECS-2520S18-240-FN-TR
ECS Crystal
ECS-2520S
24MHz
-40°C ~ 85°C
ECS-2520S18-240-FN-TR
ECS Crystal
ECS-2520S
24MHz
-40°C ~ 85°C
ECS-2520S18-240-FN-TR
ECS Crystal
ECS-2520S
24MHz
-40°C ~ 85°C
ECS-2520S18-250-FN-TR
ECS Crystal
ECS-2520S
25MHz
-40°C ~ 85°C
ECS-2520S18-250-FN-TR
ECS Crystal
ECS-2520S
25MHz
-40°C ~ 85°C
ECS-2520S18-250-FN-TR
ECS Crystal
ECS-2520S
25MHz
-40°C ~ 85°C
ECS-2520S18-260-FN-TR
ECS Crystal
ECS-2520S
26MHz
-40°C ~ 85°C
ECS-2520S18-260-FN-TR
ECS Crystal
ECS-2520S
26MHz
-40°C ~ 85°C
ECS-2520S18-260-FN-TR
ECS Crystal
ECS-2520S
26MHz
-40°C ~ 85°C
ECS-2520S18-320-FN-TR
ECS Crystal
ECS-2520S
32MHz
-40°C ~ 85°C
ECS-2520S18-320-FN-TR
ECS Crystal
ECS-2520S
32MHz
-40°C ~ 85°C
ECS-2520S18-320-FN-TR
ECS Crystal
ECS-2520S
32MHz
-40°C ~ 85°C
