當前位置：首頁 » 行業資訊 » 汽車胎壓檢測專用晶振NX3225SA-27.000MHZ-STD-CSR-1

汽車胎壓檢測專用晶振NX3225SA-27.000MHZ-STD-CSR-1

來源：金洛鑫瀏覽：- 發布日期：2023-06-08 19:28:23【大中小】

日本電波工業株式NDK晶振，型號NX3225S，是一款小體積晶振尺寸3.2×2.5×0.55mm四腳貼片晶振，無源晶振，石英晶體諧振器，無鉛環保晶振，頻率范圍：12MHz~50MHz，工作溫度范圍：-40℃至+125℃，在極端惡劣的環境條件下也能具有穩定的啟動特性，優異的抗環境性能，如耐熱、振動和抗沖擊性，回流溫度分布（可用于無鉛焊接），符合AEC-Q200，緊湊的表面安裝晶體單元，特別石英晶體諧振器適用于汽車電子設備，汽車電子控制板，汽車動力轉向控制器，汽車遙控器，汽車音影晶振，汽車胎壓檢測，通訊設備，無線網絡，藍牙模塊，醫療設備，平板電腦等應用。汽車胎壓檢測專用晶振NX3225SA-27.000MHZ-STD-CSR-1

原廠編碼	品牌	型號	頻率	頻率穩定度	包裝/封裝
NX3225SA-24.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	24MHz	±15ppm	4-SMD, No Lead
NX3225SA-16.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	16MHz	±15ppm	4-SMD, No Lead
NX3225SA-32.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	32MHz	±15ppm	4-SMD, No Lead
NX3225SA-26.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	26MHz	±15ppm	4-SMD, No Lead
NX3225SA-20.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	20MHz	±15ppm	4-SMD, No Lead
NX3225SA-14.31818MHZ-STD-CSR-1	NDK晶振	NX3225SA	14.31818MHz	±15ppm	4-SMD, No Lead
NX3225SA-24.576MHZ-STD-CSR-1	NDK晶振	NX3225SA	24.576MHz	±15ppm	4-SMD, No Lead
NX3225SA-27.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	27MHz	±15ppm	4-SMD, No Lead
NX3225SA-32M-EXS00A-02994	NDK晶振	NX3225SA	32MHz	±15ppm	4-SMD, No Lead
NX3225SA-25.000M-STD-CSR-3	NDK晶振	NX3225SA	25MHz	±15ppm	4-SMD, No Lead
NX3225SA-20.000M-STD-CSR-3	NDK晶振	NX3225SA	20MHz	±15ppm	4-SMD, No Lead
NX3225SA-26.000M-STD-CSQ-1	NDK晶振	NX3225SA	26MHz	±10ppm	4-SMD, No Lead
NX3225SA-30.000M-STD-CSR-3	NDK晶振	NX3225SA	30MHz	±15ppm	4-SMD, No Lead
NX3225SA-32MHZ-EXS00A-CS02368	NDK晶振	NX3225SA	32MHz	±16ppm	4-SMD, No Lead
NX3225SA-25.000M-STD-CRS-2	NDK晶振	NX3225SA	25MHz	±50ppm	4-SMD, No Lead
NX3225SA-27M-STD-CRS-2	NDK晶振	NX3225SA	27MHz	±50ppm	4-SMD, No Lead
NX3225SA-12MHZ-STD-CSR-6	NDK晶振	NX3225SA	12MHz	±25ppm	4-SMD, No Lead
NX3225SA-16MHZ-STD-CSR-6	NDK晶振	NX3225SA	16MHz	±25ppm	4-SMD, No Lead
NX3225SA-26.000000MHZ-G4	NDK晶振	NX3225SA	26MHz	±10ppm	4-SMD, No Lead
NX3225SA-26.000000MHZ-B1	NDK晶振	NX3225SA	26MHz	±10ppm	4-SMD, No Lead
NX3225SA-16.000000MHZ-T1	NDK晶振	NX3225SA	16MHz	±10ppm	4-SMD, No Lead
NX3225SA-26.000000MHZ-G2	NDK晶振	NX3225SA	26MHz	±11ppm	4-SMD, No Lead
NX3225SA-16.000000MHZ-B3	NDK晶振	NX3225SA	16MHz	±15ppm	4-SMD, No Lead
NX3225SA-26.000000MHZ-G3	NDK晶振	NX3225SA	26MHz	±10ppm	4-SMD, No Lead
NX3225SA-39.000000MHZ-B4	NDK晶振	NX3225SA	39MHz	±10ppm	4-SMD, No Lead
NX3225SA-20.000M-STD-CRS-2	NDK晶振	NX3225SA	20MHz	±50ppm	4-SMD, No Lead
NX3225SA-16.000M-STD-CRS-2	NDK晶振	NX3225SA	16MHz	±50ppm	4-SMD, No Lead
NX3225SA-26.000M-STD-CSR-3	NDK晶振	NX3225SA	26MHz	±15ppm	4-SMD, No Lead
NX3225SA-40.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	40MHz	±15ppm	4-SMD, No Lead
NX3225SA-20.000000MHZ-B2	NDK晶振	NX3225SA	20MHz	±15ppm	4-SMD, No Lead
NX3225SA-114.285MHZ-EXS00A-CS06528	NDK晶振	NX3225SA	114.285MHz	±20ppm	4-SMD, No Lead
NX3225SA-27.12M-STD-CSR-3	NDK晶振	NX3225SA	27.12MHz	±15ppm	4-SMD, No Lead
NX3225SA-12.000M-STD-CRS-2	NDK晶振	NX3225SA	12MHz	±50ppm	4-SMD, No Lead
NX3225SA-12.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	12MHz	±15ppm	4-SMD, No Lead
NX3225SA-13.56M-STD-CSR-3	無源晶振	NX3225SA	13.56MHz	±15ppm	4-SMD, No Lead
NX3225SA-40M-EXS00A-CS03880	NDK晶振	NX3225SA	40MHz	±17ppm	4-SMD, No Lead
NX3225SA-25.000M-STD-CSR-6	NDK晶振	NX3225SA	25MHz	±25ppm	4-SMD, No Lead
NX3225SA-12MHZ-STD-CSR-3	NDK晶振	NX3225SA	12MHz	±15ppm	4-SMD, No Lead
NX3225SA-24.000M-STD-CSR-3	NDK晶振	NX3225SA	24MHz	±15ppm	4-SMD, No Lead
NX3225SA-22.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	22MHz	±15ppm	4-SMD, No Lead
NX3225SA-25.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	25MHz	±15ppm	4-SMD, No Lead
NX3225SA-12.288M-STD-CSR-3	NDK晶振	NX3225SA	12.288MHz	±15ppm	4-SMD, No Lead
NX3225SA-13M-STD-CSR-6	NDK晶振	NX3225SA	13MHz	±25ppm	4-SMD, No Lead
NX3225SA-12.288M-STD-CRS-2	NDK晶振	NX3225SA	12.288MHz	±50ppm	4-SMD, No Lead
NX3225SA-44.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	44MHz	±15ppm	4-SMD, No Lead
NX3225SA-16MHZ-STD-CSR-3	NDK晶振	NX3225SA	16MHz	±15ppm	4-SMD, No Lead
NX3225SA-40.000M-STD-CRS-2	NDK晶振	NX3225SA	40MHz	±50ppm	4-SMD, No Lead
NX3225DA-16.000MHZ-EXS00A-03311	NDK晶振	NX3225SA	16MHz	-	4-SMD, No Lead

汽車胎壓檢測專用晶振NX3225SA-27.000MHZ-STD-CSR-1

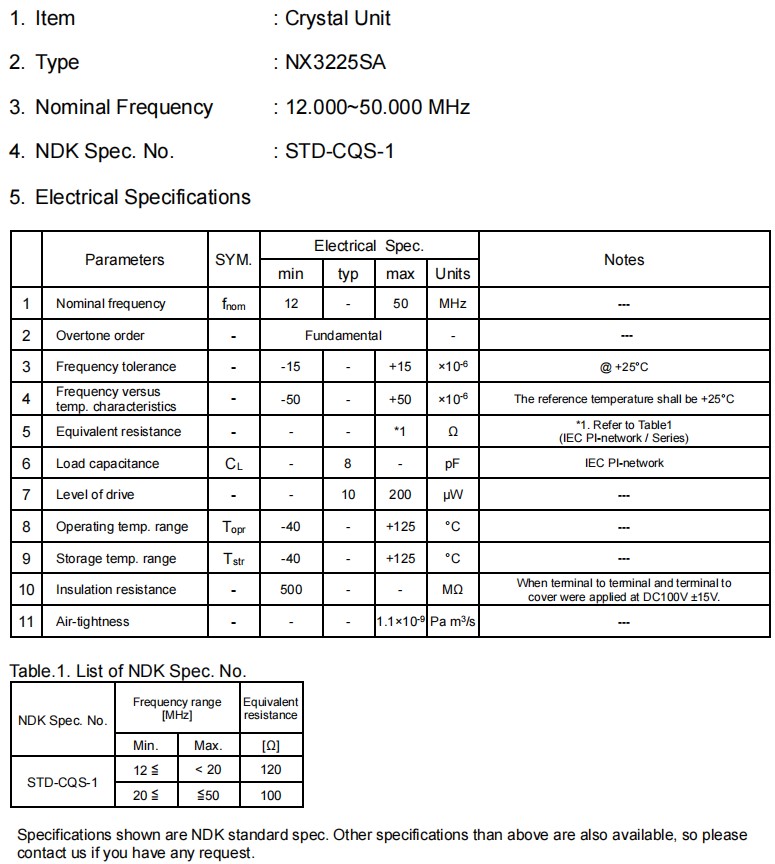

NX3225SA晶振特征：
緊湊型表面安裝晶體單元，適用于汽車設備
緊湊且?。ㄐ吞枺?.2×2.5×0.55 mm）諧振器
即使在極其惡劣的環境條件下，它也具有穩定的啟動特性
優異的耐環境性能
如耐熱性、抗震性和抗震性
回流溫度曲線（可用于無鉛焊接）
符合AEC-Q200標準

汽車胎壓檢測專用晶振NX3225SA-27.000MHZ-STD-CSR-1，日本電波工業株式NDK晶振會社作為壓電石英晶體元器件、壓電石英晶振、有源晶振、壓電陶瓷諧振器、石英晶振器件的專業生產廠家，以“通過對客戶的服務，為社會繁榮和世界和平作出貢獻”的創業理念為基礎于1948年成立。現在我們作為提供電子業必不可少的，在豐富用途被廣泛使用的晶體元器件產品以及應用水晶技術的傳感器等新的高附加價值產品的頻率綜合生產廠家，正以企業的繼續成長為目標而努力。

日本電波工業株式NDK貼片晶振廠家經營范圍：晶體諧振器、晶體振蕩器等晶體元器件、應用器件、石英晶振,陶瓷晶振,聲表面諧振器,有源晶振,壓控振蕩器,貼片晶振,人工水晶及芯片等的晶體相關產品的制造與銷售。
