前言:關于愛普生晶振這個品牌已經是老生常談了,是金洛鑫電子主要供應的進口產品之一,在我司官網上有許多關于愛普生晶體和振蕩器相關的技術或產品文章,各位感興趣的可以關注金洛鑫電子的官方網站查看.

上個月エプソン水晶デバイス接連宣布了兩大產品方面最新進展,第一件是已經成功研發出兩款3.2×1.5mm的超低功耗32.768K晶體振蕩器系列,分別命名為SG-3031CM和SG-3031CMA.既然都是同一種封裝,料號也相似,那么這兩款石英晶振之間,到底有什么不同,請看接下來的分析.

內置32.768K晶體單元,無需調整即可高效運行;工作溫度-40°C至+105°C;使用CMOSIC可以減少電流消耗;VIO控制擺幅;應用領域:工業,安全,智能電表,計時和睡眠功能時鐘.

X1B000391000116愛普生最新低功耗振蕩器資訊附送編碼名單

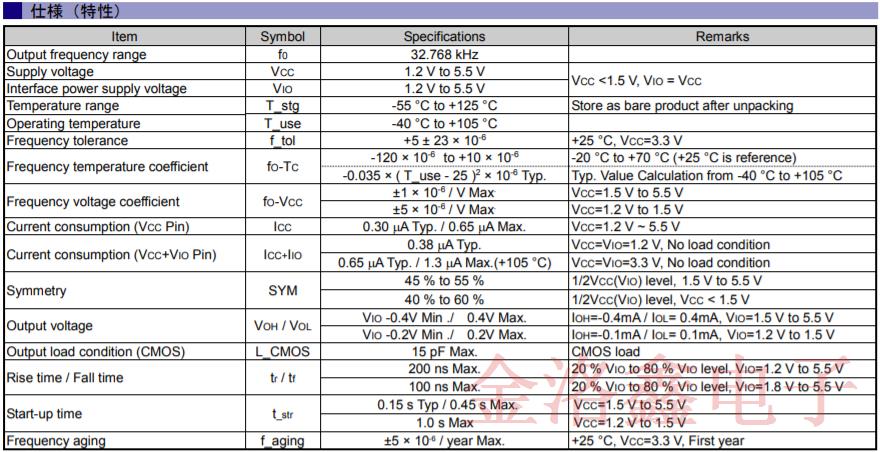

除非另有說明,否則上表中顯示的石英晶振特性(規格)基于額定工作溫度和電壓條件.

X1B000391000116愛普生最新低功耗振蕩器資訊附送編碼名單

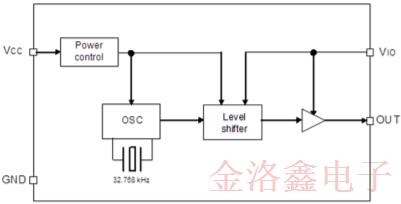

VIO是OUT輸出的電源引腳,也可以用作OE引腳.設置為禁用時,將VIO設置為0V.VCC是用于操作32.768kHz振蕩的電源引腳.可以通過最小化兩個電源的施加電壓來最小化功耗.但是,當VCC<1.5V時,VIO=VCC.

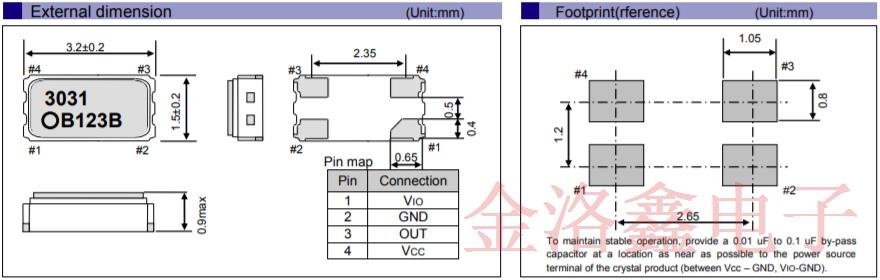

SG-3031CM/CMA封裝尺寸圖

1.具有優化的CMOSIC設計的

-低功耗-最大0.65uA的低功耗.*1

-1:Vcc=1.2V至5.5V,VIO=0.0V,T_use=+105℃

-電源電壓范圍從1.2V至5.5V

-Vio-PIN是接口電源電壓

2.寬溫度范圍最高可達105度

-SG-3031CMA和SG-3031CM石英晶振的工作溫度范圍最高為+105℃.

3.符合AEC-Q100標準

-SG-3031CMA符合AEC-Q100標準,適用于汽車應用.

4.附加價值主張

-內置的32.768kHz音叉晶體單元可在較寬的溫度范圍內提供穩定的頻率,而無需用戶進行調整.

-確保產品質量始終如一

-內部開發和制造晶體和IC-內部組裝和檢查晶體振蕩器

X1B000391000116愛普生最新低功耗振蕩器資訊附送編碼名單

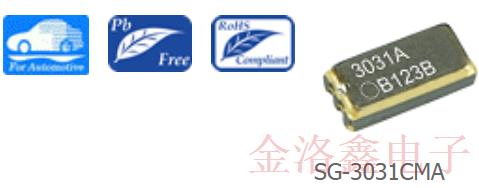

內置的32.768kHz石英晶振可實現無調整的高效運行;工作溫度-40°C至+105°C;使用CMOSIC可以減少電流消耗;VIO控制擺幅;符合AEC-Q100;應用領域:信息娛樂和通信設備,車身(ECU*),用于計時和睡眠功能的時鐘.ECU:電子控制單元.

X1B000391000116愛普生最新低功耗振蕩器資訊附送編碼名單

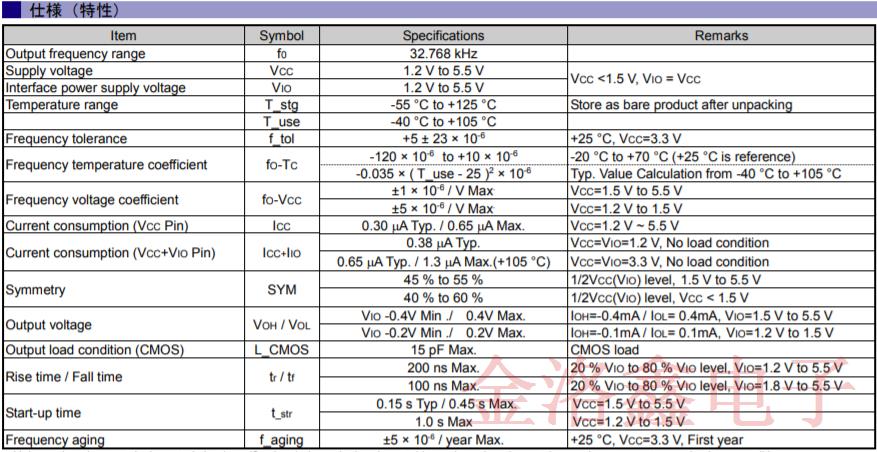

除非另有說明,否則上表中顯示的特性(規格)基于額定工作溫度和電壓條件.

X1B000391000116愛普生最新低功耗振蕩器資訊附送編碼名單

X1G0036410022	SG-211SEE晶振	38.400000MHz	2.50x2.00x0.80mm
X1G0036410023	SG-211SEE晶振	27.000000MHz	2.50x2.00x0.80mm
X1G0036410024	SG-211SEE晶振	38.400000MHz	2.50x2.00x0.80mm
X1G0036410025	SG-211SEE晶振	26.000000MHz	2.50x2.00x0.80mm
X1G0036410026	SG-211SEE晶振	50.000000MHz	2.50x2.00x0.80mm
X1G0036410027	SG-211SEE晶振	25.000000MHz	2.50x2.00x0.80mm
X1G0036410028	SG-211SEE晶振	25.000000MHz	2.50x2.00x0.80mm
X1G0036410030	SG-211SEE晶振	37.400000MHz	2.50x2.00x0.80mm
X1G0036410031	SG-211SEE晶振	12.288000MHz	2.50x2.00x0.80mm
X1G0036410032	SG-211SEE晶振	27.000000MHz	2.50x2.00x0.80mm
X1G0036410033	SG-211SEE晶振	27.000000MHz	2.50x2.00x0.80mm
X1G0036410034	SG-211SEE晶振	24.000000MHz	2.50x2.00x0.80mm
X1G0036410035	SG-211SEE晶振	25.000000MHz	2.50x2.00x0.80mm
X1G0036410036	SG-211SEE晶振	4.000000MHz	2.50x2.00x0.80mm
X1G0036410037	SG-211SEE晶振	15.625000MHz	2.50x2.00x0.80mm
X1G0036410038	SG-211SEE晶振	25.000000MHz	2.50x2.00x0.80mm
X1G0036410039	SG-211SEE晶振	24.000000MHz	2.50x2.00x0.80mm
X1G0036410041	SG-211SEE晶振	50.000000MHz	2.50x2.00x0.80mm
X1G0036410042	SG-211SEE晶振	25.000000MHz	2.50x2.00x0.80mm
X1G0036410043	SG-211SEE晶振	19.200000MHz	2.50x2.00x0.80mm
X1G0036410044	SG-211SEE晶振	37.125000MHz	2.50x2.00x0.80mm
X1G0036410045	SG-211SEE晶振	27.000000MHz	2.50x2.00x0.80mm
X1G0039310001	SG-210SCH晶振	100.000000MHz	2.50x2.00x0.90mm
X1G0039310004	SG-210SCH晶振	125.000000MHz	2.50x2.00x0.90mm
X1G0039310009	SG-210SCH晶振	100.000000MHz	2.50x2.00x0.90mm
X1G0039310011	SG-210SCH晶振	125.000000MHz	2.50x2.00x0.90mm
X1G0039310013	SG-210SCH晶振	150.000000MHz	2.50x2.00x0.90mm
X1G0039310014	SG-210SCH晶振	156.250000MHz	2.50x2.00x0.90mm
X1G0039310018	SG-210SCH晶振	106.250000MHz	2.50x2.00x0.90mm
X1G0039310024	SG-210SCH晶振	150.000000MHz	2.50x2.00x0.90mm
X1G0039310032	SG-210SCH晶振	133.333300MHz	2.50x2.00x0.90mm
X1G0039310033	SG-210SCH晶振	160.000000MHz	2.50x2.00x0.90mm
X1G0039310039	SG-210SCH晶振	125.006250MHz	2.50x2.00x0.90mm
X1G0039310042	SG-210SCH晶振	114.285000MHz	2.50x2.00x0.90mm
X1G0039310043	SG-210SCH晶振	133.333000MHz	2.50x2.00x0.90mm
X1G0039310044	SG-210SCH晶振	133.000000MHz	2.50x2.00x0.90mm
X1G0039410001	SG-210SDH晶振	100.000000MHz	2.50x2.00x0.90mm
X1G0039410002	SG-210SDH晶振	125.000000MHz	2.50x2.00x0.90mm
X1G0039410003	SG-210SDH晶振	100.000000MHz	2.50x2.00x0.90mm
X1G0039410004	SG-210SDH晶振	133.333000MHz	2.50x2.00x0.90mm
X1G0039410008	SG-210SDH晶振	125.000000MHz	2.50x2.00x0.90mm
X1G0039410010	SG-210SDH晶振	100.000000MHz	2.50x2.00x0.90mm
X1G0039410013	SG-210SDH晶振	156.250000MHz	2.50x2.00x0.90mm
X1G0039410014	SG-210SDH晶振	125.000000MHz	2.50x2.00x0.90mm
X1G0039510001	SG-210SEH晶振	125.000000MHz	2.50x2.00x0.90mm
X1G0039510002	SG-210SEH晶振	100.000000MHz	2.50x2.00x0.90mm
X1G0039510003	SG-210SEH晶振	133.333000MHz	2.50x2.00x0.90mm
X1G0039510004	SG-210SEH晶振	156.250000MHz	2.50x2.00x0.90mm
X1G0039510008	SG-210SEH晶振	100.000000MHz	2.50x2.00x0.90mm
X1G0039510009	SG-210SEH晶振	133.330000MHz	2.50x2.00x0.90mm
X1G0039510010	SG-210SEH晶振	145.000000MHz	2.50x2.00x0.90mm
X1G0039510011	SG-210SEH晶振	150.000000MHz	2.50x2.00x0.90mm
X1G0039510013	SG-210SEH晶振	100.000000MHz	2.50x2.00x0.90mm
X1G0039510014	SG-210SEH晶振	98.304000MHz	2.50x2.00x0.90mm
X1G0041710002	SG-210STF晶振	33.300000MHz	2.50x2.00x0.90mm
X1G0041710005	SG-210STF晶振	1.000000MHz	2.50x2.00x0.90mm
X1G0041710006	SG-210STF晶振	1.843200MHz	2.50x2.00x0.90mm
X1G0041710007	SG-210STF晶振	2.000000MHz	2.50x2.00x0.90mm
X1G0041710008	SG-210STF晶振	3.686400MHz	2.50x2.00x0.90mm
X1G0041710009	SG-210STF晶振	4.000000MHz	2.50x2.00x0.90mm
X1G0041710010	SG-210STF晶振	4.096000MHz	2.50x2.00x0.90mm
X1G0041710011	SG-210STF晶振	5.000000MHz	2.50x2.00x0.90mm
X1G0041710012	SG-210STF晶振	6.000000MHz	2.50x2.00x0.90mm
X1G0041710013	SG-210STF晶振	6.144000MHz	2.50x2.00x0.90mm
X1G0041710014	SG-210STF晶振	7.372800MHz	2.50x2.00x0.90mm
X1G0041710015	SG-210STF晶振	8.000000MHz	2.50x2.00x0.90mm
X1G0041710016	SG-210STF晶振	10.000000MHz	2.50x2.00x0.90mm
X1G0041710017	SG-210STF晶振	11.289600MHz	2.50x2.00x0.90mm
X1G0041710018	SG-210STF晶振	12.000000MHz	2.50x2.00x0.90mm
X1G0041710019	SG-210STF晶振	12.288000MHz	2.50x2.00x0.90mm
X1G0041710020	SG-210STF晶振	12.500000MHz	2.50x2.00x0.90mm
X1G0041710021	SG-210STF晶振	13.000000MHz	2.50x2.00x0.90mm
X1G0041710022	SG-210STF晶振	13.500000MHz	2.50x2.00x0.90mm
X1G0041710023	SG-210STF晶振	13.560000MHz	2.50x2.00x0.90mm
X1G0041710024	SG-210STF晶振	14.318180MHz	2.50x2.00x0.90mm
X1G0041710025	SG-210STF晶振	14.745600MHz	2.50x2.00x0.90mm
X1G0041710026	SG-210STF晶振	15.000000MHz	2.50x2.00x0.90mm
X1G0041710027	SG-210STF晶振	16.000000MHz	2.50x2.00x0.90mm
X1G0041710028	SG-210STF晶振	19.200000MHz	2.50x2.00x0.90mm
X1G0041710029	SG-210STF晶振	20.000000MHz	2.50x2.00x0.90mm
X1G0041710030	SG-210STF晶振	22.579200MHz	2.50x2.00x0.90mm
X1G0041710031	SG-210STF晶振	24.000000MHz	2.50x2.00x0.90mm
X1G0041710032	SG-210STF晶振	24.576000MHz	2.50x2.00x0.90mm
X1G0041710033	SG-210STF晶振	25.000000MHz	2.50x2.00x0.90mm
X1G0041710034	SG-210STF晶振	26.000000MHz	2.50x2.00x0.90mm
X1G0041710035	SG-210STF晶振	27.000000MHz	2.50x2.00x0.90mm
X1G0041710036	SG-210STF晶振	27.120000MHz	2.50x2.00x0.90mm
X1G0041710037	SG-210STF晶振	28.636360MHz	2.50x2.00x0.90mm
X1G0041710038	SG-210STF晶振	29.491200MHz	2.50x2.00x0.90mm
X1G0041710039	SG-210STF晶振	30.000000MHz	2.50x2.00x0.90mm
X1G0041710040	SG-210STF晶振	32.000000MHz	2.50x2.00x0.90mm
X1G0041710041	SG-210STF晶振	33.333000MHz	2.50x2.00x0.90mm
X1G0041710042	SG-210STF晶振	36.000000MHz	2.50x2.00x0.90mm
X1G0041710043	SG-210STF晶振	37.400000MHz	2.50x2.00x0.90mm
X1G0041710044	SG-210STF晶振	38.400000MHz	2.50x2.00x0.90mm
X1G0041710045	SG-210STF晶振	40.000000MHz	2.50x2.00x0.90mm
X1G0041710046	SG-210STF晶振	48.000000MHz	2.50x2.00x0.90mm
X1G0041710047	SG-210STF晶振	50.000000MHz	2.50x2.00x0.90mm
X1G0041710048	SG-210STF晶振	52.000000MHz	2.50x2.00x0.90mm
X1G0041710049	SG-210STF晶振	54.000000MHz	2.50x2.00x0.90mm
