無人駕駛汽車應用晶振TSX-3225編碼X1E000021001916
近幾年以來，無人產品推出了太多的產品，有無人超市，無人機，無人售貨機，無人駕駛汽車等多種科技在高速的發展著，科技的發展帶動電子元器件的發展電子元器件-“晶振”為現代的科技帶來了巨大的貢獻，用小小的身體發揮著大大的能量。

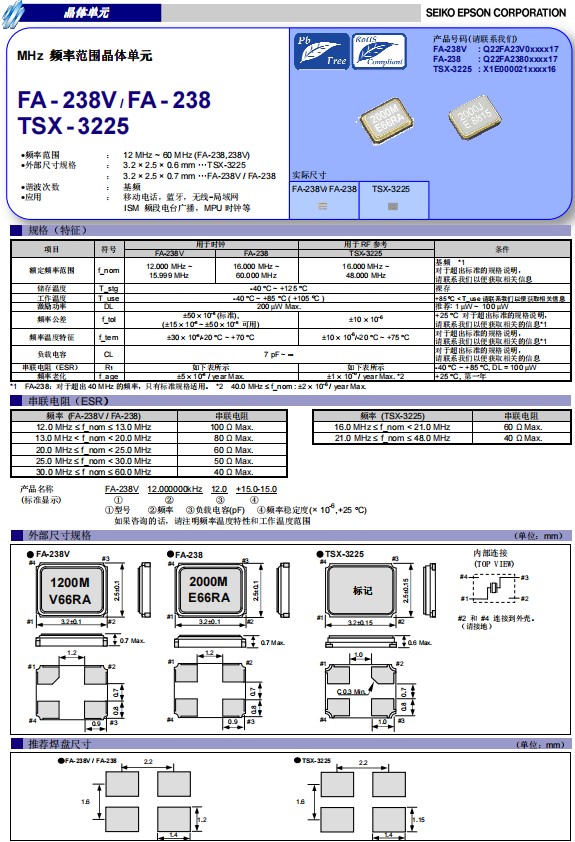

愛普生晶振TSX-3225是一款小體積尺寸3.2x2.5mm無源晶振，石英晶體諧振器，四腳貼片晶振，頻率范圍:16MHz至48MHz，工作溫度范圍:-40℃至+85℃/+105℃，具有超小型，輕薄型，耐熱及耐環境特性，適用于無人駕駛汽車，車載電子，智能手機，移動電話，無線藍牙，平板電腦，無線局域網，ISM頻段電臺廣播，MPU時鐘等。
無人駕駛汽車應用晶振TSX-3225編碼X1E000021001916
            愛普生晶振
|
   尺寸
|
   型號
|
   頻率
|
   負載
|
   精度
|
         頻率公差
|
   工作溫度
|
| X1E000021001916 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 9pF | +/-10ppm | +/-9ppm | -20to+75°C |
| X1E000021004716 | 3.2x2.5x0.6mm | TSX-3225 | 20.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+105°C |
| X1E000021004816 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+105°C |
| X1E000021011116 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021011216 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021011316 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021011416 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021011516 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021011616 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021011716 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021011816 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021011916 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 12pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021012016 | 3.2x2.5x0.6mm | TSX-3225 | 16.000000MHz | 16pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021012116 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021012216 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021012316 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021012416 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021012516 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021012616 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021012716 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021012816 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021012916 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 12pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021013016 | 3.2x2.5x0.6mm | TSX-3225 | 24.000000MHz | 16pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021013116 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021013216 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021013316 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021013416 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021013516 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021013616 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021013716 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021013816 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021014016 | 3.2x2.5x0.6mm | TSX-3225 | 25.000000MHz | 16pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021014116 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021014216 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021014316 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021014416 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021014516 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021014616 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021014716 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021014816 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021014916 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 12pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021015016 | 3.2x2.5x0.6mm | TSX-3225 | 26.000000MHz | 16pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021015116 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021015216 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021015316 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021015416 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021015516 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021015616 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021015716 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021015816 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021015916 | 3.2x2.5x0.6mm | TSX-3225 | 27.000000MHz | 12pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021016116 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021016216 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021016316 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021016416 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021016516 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000021016616 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000021016716 | 3.2x2.5x0.6mm | TSX-3225 | 32.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
無人駕駛汽車應用晶振TSX-3225編碼X1E000021001916
3225mm體積貼片晶振適用于汽車電子領堿的表面貼片型石英晶振，該產品已被確定的高信賴性最適合用于汽車電子部件晶體在極端嚴酷的環境條件下也能發揮穩定的起振特性。TSX-3225晶振本身具有耐熱，耐振，耐沖擊等優良的耐環境特性，滿足無鉛焊接的髙溫回流溫度曲線要求符合AEC-Q200標準。此款晶振屬于車規級別晶振，多用于汽車中車載導航設備、安全設備、ADAS、導航儀等領域。
