LVDS輸出差分晶振X1G005351003300是一款低抖動振蕩器

來源：金洛鑫瀏覽：- 發布日期：2022-08-26 16:19:34【大中小】

日本愛普生LVDS晶振也就是我們所說的EPSON差分晶振,具有多種輸出功能，能夠輕易識別網絡信號以及精確的處理雙極信號.差分貼片晶體振蕩器使用于產品中能夠很容易地識別小信號,能夠從容精確地處理'雙極'信號,對外部電磁干擾（EMI）是高度免疫的.

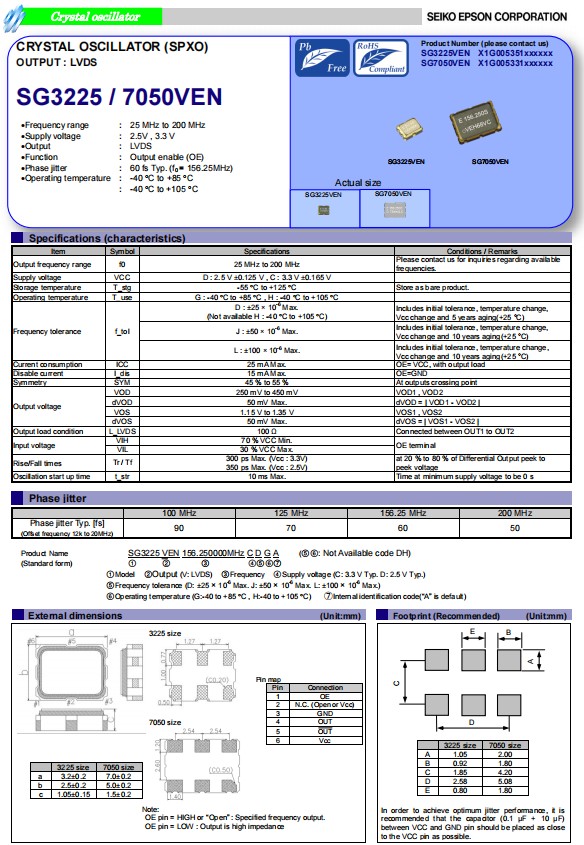

愛普生晶振SG3225VEN，是一款LVDS輸出差分晶振，小體積晶振尺寸3.2x2.5mm有源晶振，石英晶體振蕩器，寬頻率范圍25MHz至200MHz，六腳貼片晶振，超小型輕薄型，具有低電源電壓，低耗能，低電平，低抖動，低功耗等特性。差分晶振作為目前行業中高要求、高技術石英晶體振蕩器，具有相位低、損耗低的特點。因此也被稱之為“低抖動振蕩器，低抖動石英晶振，低相位晶振，低損耗晶振”

LVDS輸出差分晶振X1G005351003300是一款低抖動振蕩器

Product Number	Model	Frequency	愛普生晶振	Output Wave	Supply Voltage	Ope Temperature
X1G005351000100	SG3225VEN	72.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G005351000200	SG3225VEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351000300	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G005351000700	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351000800	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351001100	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351001200	SG3225VEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351001900	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351002000	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351002100	SG3225VEN	148.351640 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351002200	SG3225VEN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351002300	SG3225VEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351002400	SG3225VEN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351002600	SG3225VEN	30.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351002700	SG3225VEN	36.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351002800	SG3225VEN	42.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351002900	SG3225VEN	48.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351003000	SG3225VEN	54.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351003100	SG3225VEN	60.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351003200	SG3225VEN	70.656000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351003300	SG3225VEN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351003400	SG3225VEN	182.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C

X1G005351003600	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351003700	SG3225VEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004100	SG3225VEN	135.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004200	SG3225VEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004400	SG3225VEN	25.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004500	SG3225VEN	27.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004600	SG3225VEN	160.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004700	SG3225VEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004800	SG3225VEN	156.253906 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004900	SG3225VEN	48.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351005100	SG3225VEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351005200	SG3225VEN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351005400	SG3225VEN	130.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351005500	SG3225VEN	70.656000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351005600	SG3225VEN	25.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351006100	SG3225VEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351006200	SG3225VEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351006500	SG3225VEN	135.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351006900	SG3225VEN	161.132812 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351007100	SG3225VEN	60.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C

LVDS輸出差分晶振X1G005351003300是一款低抖動振蕩器

差分晶振有不同的輸出信號,LV-PECL,LVDS,HCSL,是差分晶振通用的輸出信號.一般為六腳貼片晶振,能夠很容易地識別小信號,能夠從容精確地處理'雙極'信號,對外部電磁干擾（EMI）是高度免疫的.實現高頻高精度等要求,更加保障了各種系統參考時鐘的可靠性,具有高性能,低功耗,低噪聲,低抖動,低損耗等特點.被廣泛用于通訊設備,機頂盒,光端機,安防設備及各種頻率控制設備上.

下一篇：SG-9101CA晶振編碼X1G005301003400具有CMOS輸出的可編程石英晶體振蕩器上一篇：X1A000061001400愛普生小體積貼片晶振獨特的蝕刻工藝
