當前位置：首頁 » 行業資訊 » 微晶VCXO2E是一款高溫壓控晶體振蕩器,VCXO2EV-S20.000MHzT3壓控晶振

微晶VCXO2E是一款高溫壓控晶體振蕩器,VCXO2EV-S20.000MHzT3壓控晶振

來源：金洛鑫瀏覽：- 發布日期：2022-08-02 16:15:11【大中小】

VCXO壓控晶振，基于AT切割石英晶體和高頻基波(HFF)倒置臺面晶體，非常適合用于惡劣環境和高可靠性要求的應用，具有低老化和極快的啟動時間、高沖擊和抗振性。

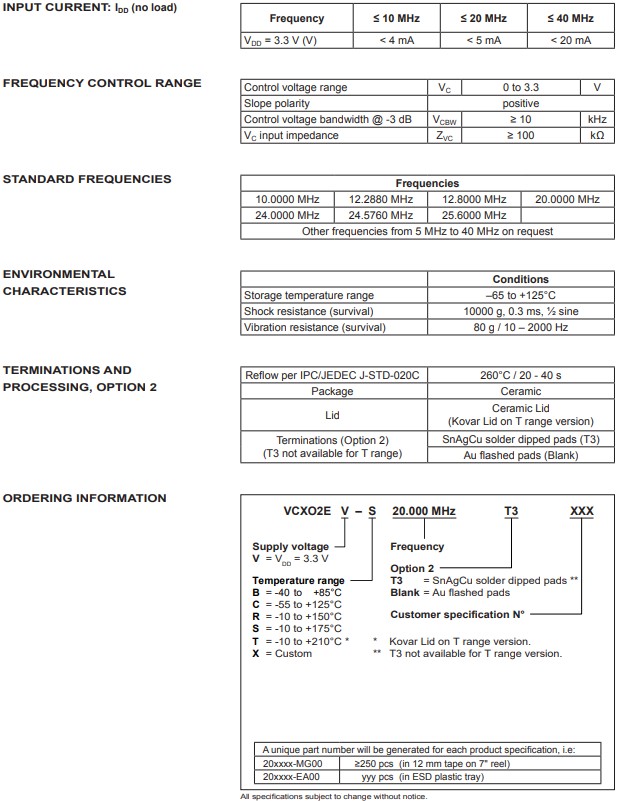

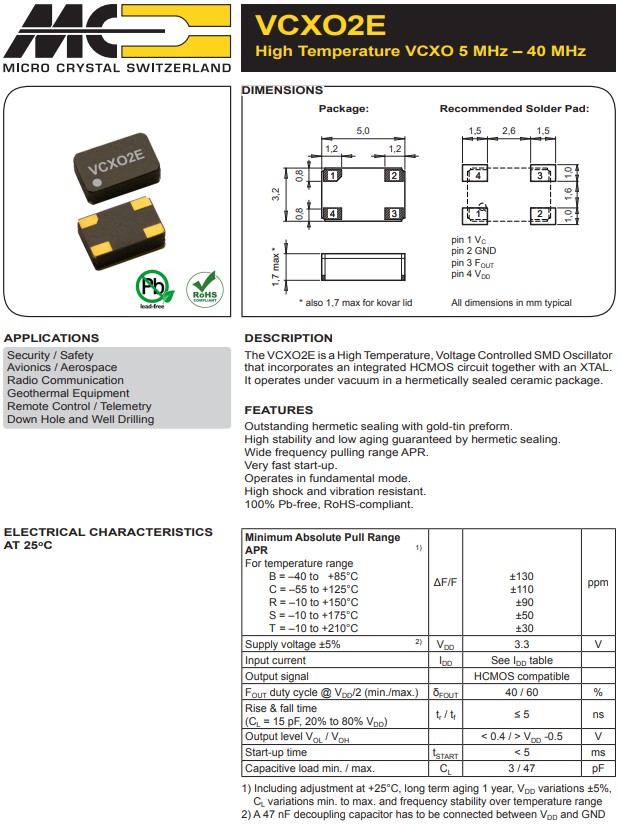

微晶VCXO2E是一款高溫壓控晶體振蕩器，VCXO振蕩器，SMD晶振，小體積晶振尺寸5.0x3.2mm，電源電壓3.3V，其將集成的HCMOS電路與XTAL結合在一起。它在密封的陶瓷封裝中在真空下工作。具有耐高溫、抗沖擊和抗振動，低噪音，高APR，頻率范圍5MHz–40MHz

特征：
金錫預制件的出色密封。
密封保證了高穩定性和低老化。
寬頻率牽引范圍。
非?？焖俚膯?dòng)。
在基本模式下運行。
高抗沖擊和振動。
100%無鉛，符合RoHS標準。

微晶VCXO2E是一款高溫壓控晶體振蕩器,VCXO2EV-S20.000MHzT3壓控晶振

OV-7604-C7-32.768k-20PPM-TB-QA	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200
OV-7604-C7-32.768kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C
MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC	微晶晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
OV-0100-C7-100.000kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C
OM-0100-C8-100.00kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM8V-T1A-32.768k-9pF-20PPM-TB-QA	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
OM-7605-C8-32.768kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C
OM-7604-C7-32.768kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM I2C -40/+85C
MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC	Micro Crystal	晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro Crystal	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-20PPM-TA-QA	Micro Crystal	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200

微晶VCXO2E是一款高溫壓控晶體振蕩器,VCXO2EV-S20.000MHzT3壓控晶振

應用程序：
安保/安全
航空電子/航空航天
無線電通信晶振
地?zé)嵩O(shè)備
遠程控制/遙測
井下和鉆井

OV-7604-C7-32.768k-20PPM-TB-QA	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200	32.768 kHz
OV-7604-C7-32.768kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C	32.768 kHz
OV-0100-C7-100.000kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C	100 kHz
OM-0100-C8-100.00kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C	100 kHz
OM-7605-C8-32.768kHz-20PPM-TA-QC	Micro Crystal	石英晶振32.768 kHz +/-20 PPM -40/+85C	32.768 kHz
OM-7604-C7-32.768kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM I2C -40/+85C	32.768 kHz
202273-EA00	Micro Crystal	標準時鐘振蕩器 128MHz 20ppm -55C +85C	128 MHz
OV-7604-C7-32.768kHz-20PPM-TB-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C	32.768 kHz
OV-7605-C8-32.768kHz-20PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C	32.768 kHz
OM-7604-C7-32.768kHz-20PPM-TB-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C	32.768 kHz
OV-7604-C7-32.768k-10PPM-TB-QA	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200	32.768 kHz
OV-7604-C7-32.768k-20PPM-TA-QA	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C	32.768 kHz
OV-7604-C7-32.768kHz-10PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+85C	32.768 kHz
OV-0100-C7-100.000kHz-50PPM-TA-QC	Micro Crystal	標準時鐘振蕩器 100.0 kHz +/-50 PPM -40/+85C	100 kHz
OM-7605-C8-20PPM-TA-QA	Micro Crystal	標準時鐘振蕩器 32.768kHz 20ppm 1.6-5.5V	32.768 kHz

微晶VCXO2E是一款高溫壓控晶體振蕩器,VCXO2EV-S20.000MHzT3壓控晶振

壓控晶振（VCXO）是通過紅外加控制電壓使振蕩效率可變或是可以調制的石英晶體振蕩器，其振蕩頻率由晶體決定，可用控制電壓在小范圍內進行頻率調整。VCXO大多用于鎖相技術、頻率負反饋調制的目的。控制電壓范圍一般為0V至2V或0V至3V。VCXO的調諧范圍為±100ppm至±200ppm。
