當前位置：首頁 » 貼片晶振 » Microchip晶振 » DSC1122CI1-156.2500,Microchip有源晶振,LVPECL晶振,DSC1122晶振

prevnext

DSC1122CI1-156.2500,Microchip有源晶振,LVPECL晶振,DSC1122晶振

頻率：156.25MHz

尺寸：3.20mm x 2.50mm

DSC1122CI1-156.2500,Microchip有源晶振,LVPECL晶振,DSC1122晶振,依托品牌成熟的研發體系與嚴苛的品控標準,從芯片設計到生產制造均經過層層把關.Microchip在晶振領域擁有多年技術積累,其生產流程符合國際質量管理體系,原材料采購嚴格篩選,確保每一顆晶振的性能一致性與可靠性.同時,品牌提供完善的技術支持服務,包括應用方案指導,樣品測試協助及售后問題響應,能幫助客戶快速解決設計與應用中的難題,降低開發風險,此外,Microchip全球化的供應鏈體系還能保障產品交付的及時性,滿足客戶批量生產需求.

訂購熱線：0755-27837162

DSC1122CI1-156.2500,Microchip有源晶振,LVPECL晶振,DSC1122晶振

DSC1122CI1-156.2500隸屬于Microchip晶振DSC1122系列晶振,該系列以高性能,高可靠性為核心定位,具備統一的封裝規格與標準化的電氣特性,方便客戶在不同頻率需求場景下進行產品替換與選型.DSC1122系列晶振普遍采用緊湊型封裝設計(如7050,5032等常用封裝),DSC1122CI1-156.2500也延續這一優勢,小巧的體積可節省PCB板布局空間,適配高密度電路設計需求;此外,該系列產品均通過嚴格的可靠性測試,包括溫度循環測試(-40℃至85℃循環),振動測試(10-2000Hz,10g加速度),沖擊測試(500g,0.5ms)等,確保在惡劣環境下仍能穩定工作,長期使用過程中老化率低,使用壽命可達50000小時以上,大幅降低設備后期維護成本.

JLX-2

DSC1122CI1-156.2500,Microchip有源晶振,LVPECL晶振,DSC1122晶振

原廠型號 Originalmodel：	DSC1122CI1-156.2500	品牌brand：	Microchip有源晶振
Manufacturer品牌	Microchip有源晶振	OperatingTemperature溫度	-40°C ~ 85°C
Series型號	DSC1122	Current-Supply(Max)	58mA
Type類型	MEMS晶振	PackageHeight高度	0.90mm
Frequency頻率	156.25MHz	Termination 腳位	6pad
輸出方式 Output：	LVPECL	PackageType 封裝類型	6-SMD
Voltage-Supply電壓	2.25 V ~ 3.6 V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±50ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	3.20mm x 2.50mm	最小包裝數MPQ：	3000

JLX-3

DSC1122CI1-156.2500,Microchip有源晶振,LVPECL晶振,DSC1122晶振

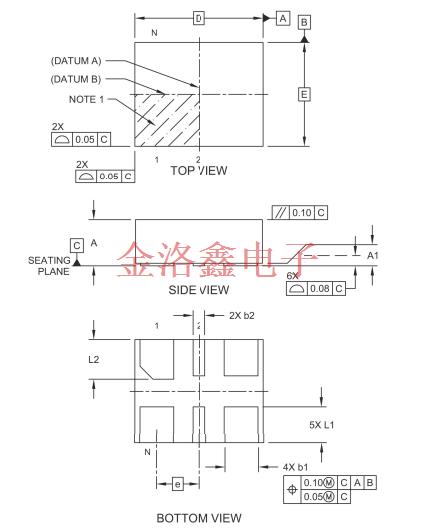

DSC1122-

JLXNR-4

DSC1122CI1-156.2500,Microchip有源晶振,LVPECL晶振,DSC1122晶振

DSC1123CI2-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AE2-100.0000	Microchip有源晶振	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
DSC1001CI2-027.0000	Microchip有源晶振	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V
DSC1123CE1-156.2500	Microchip有源晶振	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-150.0000	Microchip有源晶振	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-100.0000	Microchip有源晶振	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
DSC1103DI2-312.5000	Microchip有源晶振	DSC1103	MEMS	312.5MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DI2-050.0000	Microchip有源晶振	DSC1123	MEMS	50MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-156.2500	Microchip有源晶振	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123BL2-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI5-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CI5-300.0000	Microchip有源晶振	DSC1103	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DL5-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123NL5-100.0000	Microchip有源晶振	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
MX574BBD322M265	Microchip有源晶振	MX57	XO (Standard)	322.265625MHz	HCSL	2.375 V ~ 3.63 V
DSC1001CI2-018.4320	Microchip有源晶振	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V
DSC1123CI1-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI1-156.2500	Microchip有源晶振	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AE2-300.0000	Microchip有源晶振	DSC1123	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI1-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1122CE1-125.0000	Microchip有源晶振	DSC1122	MEMS	125MHz	LVPECL	2.25 V ~ 3.6 V
DSC1123AE2-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CI1-075.0000	Microchip有源晶振	DSC1103	MEMS	75MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-150.0000	Microchip有源晶振	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI1-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC557-0344SI1	Microchip有源晶振	DSC557-03	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
DSC6003CI1A-033.0000	Microchip有源晶振	DSC60XX	MEMS	33MHz	CMOS	1.71 V ~ 3.63 V
DSC6111CI1A-008.0000	Microchip有源晶振	DSC6100	MEMS	8MHz	CMOS	1.71 V ~ 3.63 V
DSC6011JI1A-024.0000	Microchip有源晶振	DSC60XX	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-032K800	Microchip有源晶振	DSC60XX	MEMS	32.8kHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-307K000	Microchip有源晶振	DSC60XX	MEMS	307kHz	CMOS	1.71 V ~ 3.63 V
DSC6001CI2A-004.0000	Microchip有源晶振	DSC60XX	MEMS	4MHz	CMOS	1.71 V ~ 3.63 V
DSC6001CI2A-032.0000	Microchip有源晶振	DSC60XX	MEMS	32MHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-250K000	Microchip有源晶振	DSC60XX	MEMS	250kHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-002K000	Microchip有源晶振	DSC60XX	MEMS	2kHz	CMOS	1.71 V ~ 3.63 V
DSC6101JI2A-024.0000	Microchip有源晶振	DSC6100	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V
DSC1001CC1-047.3333	Microchip有源晶振	DSC1001	MEMS	47.3333MHz	CMOS	1.8 V ~ 3.3 V
DSC1030BC1-008.0000	Microchip有源晶振	DSC1030	MEMS	8MHz	CMOS	3V
DSC1001BC1-024.0000	Microchip有源晶振	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V
DSC1033BC1-026.6000	Microchip有源晶振	DSC1033	MEMS	26MHz	CMOS	3.3V
DSC1001DI1-001.8432	Microchip有源晶振	DSC1001	MEMS	1.8432MHz	CMOS	1.8 V ~ 3.3 V
DSC1033CI1-048.0000	Microchip有源晶振	DSC1033	MEMS	48MHz	CMOS	3.3V
DSC1033CI1-024.0000	Microchip有源晶振	DSC1033	MEMS	24MHz	CMOS	3.3V
DSC1033DI1-012.0000	Microchip有源晶振	DSC1033	MEMS	12MHz	CMOS	3.3V
DSC1033DI1-036.0000	Microchip有源晶振	DSC1033	MEMS	36MHz	CMOS	3.3V
DSC1001CI1-027.0000	Microchip有源晶振	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V
DSC1033CI1-050.0000	Microchip有源晶振	DSC1033	MEMS	50MHz	CMOS	3.3V
DSC6001CI1A-011.0592	Microchip有源晶振	DSC60XX	MEMS	11.0592MHz	CMOS	1.71 V ~ 3.63 V
DSC1001CI2-024.0000	Microchip有源晶振	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V
DSC1033BE2-024.0000	Microchip有源晶振	DSC1033	MEMS	24MHz	CMOS	3.3V
DSC1001DI2-038.4000	Microchip有源晶振	DSC1001	MEMS	38.4MHz	CMOS	1.8 V ~ 3.3 V
DSC1001CI5-033.3333	Microchip有源晶振	DSC1001	MEMS	33.3333MHz	CMOS	1.8 V ~ 3.3 V
DSC1101DM2-012.0000	Microchip有源晶振	DSC1101	MEMS	12MHz	CMOS	2.25 V ~ 3.6 V
DSC1001DE5-018.4320	Microchip有源晶振	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V
DSC1101AI2-040.0000	Microchip有源晶振	DSC1101	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-080.0000	Microchip有源晶振	DSC1101	MEMS	80MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-064.0000	Microchip有源晶振	DSC1101	MEMS	64MHz	CMOS	2.25 V ~ 3.6 V
DSC1124CI5-100.0000	Microchip有源晶振	DSC1124	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
