JLX-1

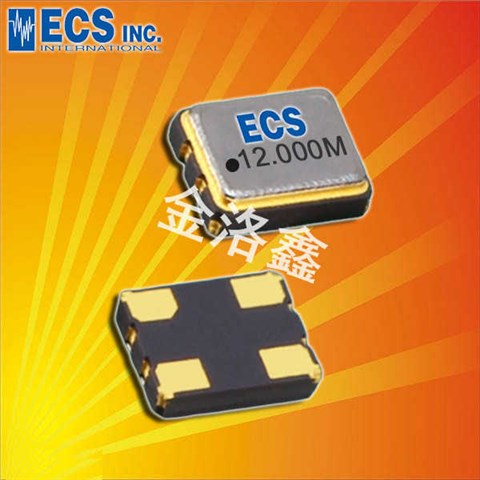

ECS-2520MV-250-CN-TR,ECS有源晶振,2520小型封裝晶振

ECS-2520MV-250-CN-TR作為ECS歐美進口晶振旗下有源晶振核心型號,采用行業領先的2520封裝規格(2.5mm×2.0mm),在尺寸上較傳統晶振大幅縮減,為消費電子,工業控制等領域?qū)臻g要求嚴苛的設備提供了理想選擇.超小體積設計可輕松集成于智能穿戴設備(如智能手表,手環),微型傳感器模塊,便攜式醫療設備(如血糖監測儀)等緊湊空間場景,無需犧牲電路布局完整性,助力終端產品實現更輕薄,小巧的外觀設計,同時降低設備整體功耗與散熱壓力.

JLX-2

ECS-2520MV-250-CN-TR,ECS有源晶振,2520小型封裝晶振

原廠型號Originalmodel：	ECS-2520MV-250-CN-TR	品牌brand：	美國伊西斯ECS晶振
Manufacturer品牌	ECS	OperatingTemperature溫度	-40+85℃
Series型號	ECS-2520MV	Current-Supply(Max)	-
Type類型	XO	PackageHeight高度	0.5mm
Frequency頻率	25MHZ	Termination腳位	4-pad
輸出方式Output：	HCMOS	PackageType封裝類型	4-Smd
Voltage-Supply電壓	1.6-3.6V	Packaging包裝	TapeandReel
FrequencyStability頻率穩定度	25PP	安裝方式Installation：	Surfacemount
Size/Dimension尺寸	2520mm晶振	最小包裝數MPQ：	3000

JLX-3

ECS-2520MV-250-CN-TR,ECS有源晶振,2520小型封裝晶振

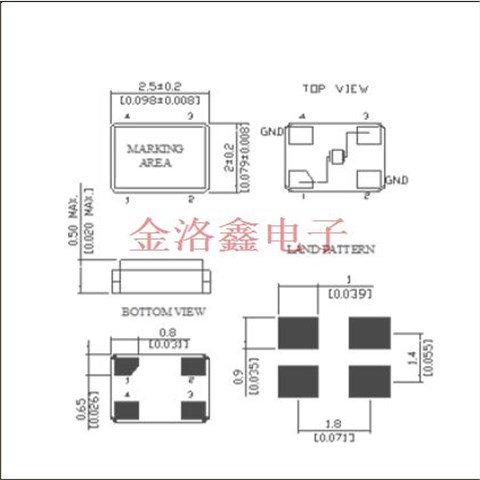

R2520 2520

ECS-2520MV-250-CN-TR,ECS有源晶振,2520小型封裝晶振

KDS	7BH03276A0S	DST1210A	1210四腳	32.768K
KDS	7BG03276A25	DST1610A	1610	32.768K
KDS	7BG03276A1X	DST1610A	1610	32.768K
KDS	1TJH090DP1A0006	DST1610A	1610	32.768K
KDS	1TJ125DR1AC054	DST210AC	2012	32.768K
KDS	7BF03276A3K	DST210AC	2012	32.768K
KDS	1TJE090FR1AH00C	DST410S	4115	32.768k
KDS	32ETJS070FJ	DT-26	206	32.768KHZ
KDS	1TC125DFNS004	DT-38	308	32.768k
KDS	1TC125DFNS008	DT-38	308	32.768KHZ
KDS	1TC125JHNS010	DT-38	308	32.768KHZ
KDS	1ZZNAE38400AB0A	DSX211SH	2016	38.400M
KDS	7AE01200A00	DSX221G	2520	12.000M
KDS	7AD00800A1Y	DSX321G	3225	8.000M
KDS	1C208000CE0R 汽車	DSX321G	3225	8.000M
KDS	7AD00800A1X汽車	DSX320GE	3225	8.000M
KDS	1ZCM08000EE0A汽車	DSX320G	3225	8.000M
KDS	1C208000EZ0G汽車	DSX321G	3225	8.000M
KDS	1N210000EE0X	DSX321G	3225	10.000M
KDS	1C213080CC0A	DSX321G	3225	13.080M
KDS	1C232000ABOV	DSX321G	3225	32.000M
KDS	1N254000BB0M	DSX321G	3225	54.000M
KDS	1ZCM12000BC0A	DSX320G	3225	12.000M
KDS	1C216000EE0AW	DSX321G	3225	16.000M
KDS	1N216000EE0BE	DSX321G	3225	16.000M
KDS	1N238400AB0C	DSX321G	3225	38.400M
KDS	1C220000EE0BF	DSX321G	3225	20.000M
KDS	1C220000AA0K	DSX321G	3225	20.000M
KDS	1C224000BE0K	DSX321G	3225	24.000M
KDS	7AD02500A4K	DSX321G	3225	25.000M
KDS	1N225000BC0CT	DSX321G	3225	25.000M
KDS	1N225500CC0A	DSX321G	3225	25.500M
KDS	1P227120BE0A	DSX321G	3225	27.120M
KDS	1BASAMPLE	DSX321G	3225	27.000M
KDS	1N224000BC0BS	DSX321G	3225	24.000M
KDS	1C224000AA0AD	DSX321G	3225	24.000M
KDS	7AD01228A0H	DSX321G	3225	12.288M
KDS	7AD02400A3D	DSX321G	3225	24.000M
KDS	7AD04800A0T	DSX321SH	3225	48.000M
KDS	7AF05000A0B	DSX211G	2016	50.000M
KDS	7BG03276A2X	DST1610A	1610	32.768KHZ
KDS	7FD05000A0S	DSO321SR	3225	50.000M
KDS	1N228636AB0B	DSX321G	3225	28.63636M
KDS	1TJG090DP1AC015	DST210AC	2012	32.768K
KDS	1XSE100000AR30	DSO321SR	3225	100.000M
KDS	1XSF10000AH	DSO221SH	2520	10.000M
KDS	CW08000EK3B	DSX151GAL	11.8*5.5	8.000M
KDS	1AJ160005BE	SMD-49		16.000M
KDS	1AJ245763ED	SMD-49	11*4.6	24.576M
KDS	1AC080005BM	AT-49	11*4.6	8.000M
KDS	SB103CE1MM	SINGLE
KDS	1RAK38400CRB	DSR211STH	2016	38.400M
KDS	7FG00003A03	DSO1612AR	1612	32.768KHZ
KDS	1XSF016000EH	DSO221SHF	2520	16.000M
KDS	7FE02496A00	DSO221SX	2520	24.96M
KDS	7EF01000A03	DSB211SDN	2016	10.000M
KDS	1XXD26000MLP	DSB211SDN	2016	26.000M
KDS	1XXD40000PDA	DSB211SDN	2016	40.000M
KDS	7EF01600A00	DSB211SDN	2016	16.000M
KDS	1XXD52000PBA	DSB211SDN	2016	52.000M
