FC4SDCBMF10.0-T1,FOX無源晶振,HC49SDLF石英晶振,耐用型晶振
依托FOX福克斯晶振品牌成熟的制造工藝,這款無源晶振具備低功耗,高穩定性的雙重優勢,無需外部電源驅動即可正常工作,能顯著降低物聯網傳感器,智能穿戴設備晶振,便攜式檢測儀器等低功耗職場設備的整體能耗,延長設備續航時間.產品擁有出色的抗電磁干擾能力,在復雜的電磁環境中(如工業生產車間,多設備密集的機房)仍能保持穩定頻率輸出,避免設備因干擾出現數據采集偏差或功能卡頓.此外,其寬溫度適配范圍(-40℃至85℃)可應對戶外,極端工業等嚴苛場景,為多領域職場設備提供可靠頻率支持.采用經典的HC49SD封裝結構,搭配高品質石英晶體材質,這款晶振具備超高頻率精度與長期穩定性,頻率偏差可控制在±10ppm以內,完美適配醫療電子(如心電監護儀),精密測量儀器(如電子示波器),汽車電子控制單元等對頻率精度要求嚴苛的職場場景.產品內置防潮防塵結構,能有效抵御潮濕,粉塵等惡劣環境影響,延長使用壽命,同時,其引腳設計牢固,焊接穩定性強,可減少因安裝或振動導致的接觸不良問題,為關鍵職場設備的持續運行筑牢"精度防線".
FC4SDCBMF10.0-T1,FOX無源晶振,HC49SDLF石英晶振,耐用型晶振
| 原廠型號Original model ： | FC4SDCBMF10.0-T1 | 品牌 brand ： | FOX晶振 |
| 品牌 brand ： | FOX晶振 | ESR（等效串聯電阻） Resistance) | 60 Ohms |
| 型號名稱Model name： | HC49SDLF | 溫度 Operating Temperature | -20°C ~ 70°C |
| Type 系列： | MHz Crystal | 腳位 Termination： | 2 pad |
| 頻率frequency ： | 10 MHz | 封裝類型 Package Type： | HC-49/US |
| Frequency Stability頻率穩定度 | ±50ppm | 高度 Package Height： | 4.50mm |
| frequency tolerance頻率容差 | ±30ppm | 最小包裝數 MPQ ： | - |
| Load capacitance負載電容 | 20pF | 包裝 Packaging： | Tape and Reel |

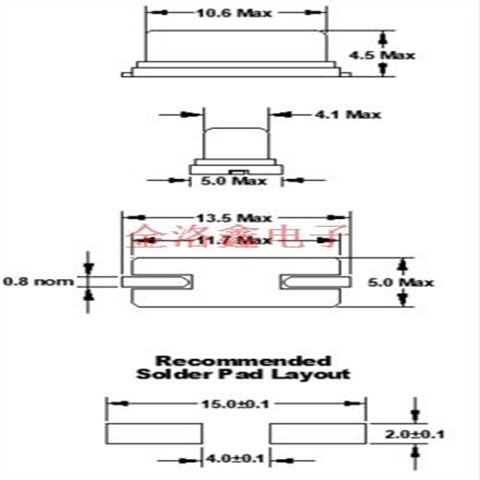

| Size / Dimension 尺寸 | 11.70mm x 5.00mm | 安裝方式 Mounting Style： | Surface Mount |
FC4SDCBMF10.0-T1,FOX無源晶振,HC49SDLF石英晶振,耐用型晶振
FC4SDCBMF10.0-T1,FOX無源晶振,HC49SDLF石英晶振,耐用型晶振
| FC4SDCBMF10.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF8.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF3.6864-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF | 200 Ohms |
| FKFSREIHM0.032768-T3 | FOX無源晶振 | FSRLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms |
| FC4STCBMF20.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FK135EIHM0.032768-T3 | FOX無源晶振 | K135 | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms |
| FC5BQCCMC12.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC5BQCCMM25.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMM12.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMM8.0-T1 | FOX無源晶振 | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC7BSCCMM7.3728-T1 | FOX無源晶振 | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FKFSXEIHM0.032768-T3 | FOX無源晶振 | FSXLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms |
| FKFSREIBM0.032768-T3 | FOX無源晶振 | FSRLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 50 kOhms |
| FC8AQCCMC3.6864-T1 | FOX無源晶振 | FC8AQ | MHz Crystal | 3.6864 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC8AQCCMC4.0-T1 | FOX無源晶振 | FC8AQ | MHz Crystal | 4 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC4SDCBMF11.0592-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF25.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMF16.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMF12.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF24.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMM25.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMF14.7456-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMM8.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF7.3728-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF6.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 6 MHz | ±50ppm | ±30ppm | 20pF | 120 Ohms |
| FC4SDCBMF4.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC3BQBBME12.0-T3 | FOX無源晶振 | FQ3225B | MHz Crystal | 12 MHz | ±50ppm | ±50ppm | 20pF | 120 Ohms |
| FC3BQBBMM25.0-T3 | FOX無源晶振 | FC3BQ | MHz Crystal | 25 MHz | ±50ppm | ±50ppm | 20pF | 80 Ohms |
| FKT38EIHD0.032768 | FOX無源晶振 | NC38LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC4STCBMF10.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF25.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4STCBMF16.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4STCBMF12.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF11.0592 | FOX無源晶振 | HC49SLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF8.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4STCBMF7.3728 | FOX無源晶振 | HC49SLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4STCBLF3.579545 | FOX無源晶振 | HC49SLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF | 200 Ohms |
| FC4STCBMF4.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC4STCBMF3.6864 | FOX無源晶振 | HC49SLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF | 200 Ohms |
| FKT26EIHD0.032768 | FOX無源晶振 | NC26LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms |
| FKT38EIHQ0.032768 | FOX無源晶振 | NC38LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC5BQCCMC25.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC24.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC20.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC16.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 16 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMC8.0-T1 | FOX無源晶振 | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC7BSCCMM6.0-T1 | FOX無源晶振 | C7BS | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMC7.3728-T1 | FOX無源晶振 | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC8AQCCMC6.0-T1 | FOX無源晶振 | FC8AQ | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC4SDCBMF12.288-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 12.288 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMM16.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMF18.432-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBLF3.579545-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF | 200 Ohms |
| FC4SDCBMM4.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC2BSBBMM16.0-T3 | FOX無源晶振 | FX252B | MHz Crystal | 16 MHz | ±50ppm | ±50ppm | 20pF | 200 Ohms |
| FC4STCBMF18.432 | FOX無源晶振 | HC49SLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4STCBMF14.7456 | FOX無源晶振 | HC49SLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FKT26EIHQ0.032768 | FOX無源晶振 | NC26LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC3BACALI16.0-T3 | FOX無源晶振 | C3BA | MHz Crystal | 16 MHz | ±100ppm | ±30ppm | 18pF | 100 Ohms |
| FC3BACBDI16.0-T3 | FOX無源晶振 | C3BA | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 8pF | 100 Ohms |
