NKG晶振,S2M48.0000F20M2Z-EXT,2520mm晶振,6G路由器晶振,NKG晶振,進口晶振,S2M無源晶振,貼片晶振,S2M48.0000F20M2Z-EXT晶振,2520mm晶振,四腳封裝晶振,石英晶體諧振器,SMD晶振,頻率48MHz,負載20pF,頻率容差20ppm,工作溫度-40~85°C,抗震動晶振,高可靠性晶振,低老化晶振,6G路由器晶振,網絡交換機晶振,千兆以太網晶振,數字設備晶振.
NKG晶振,S2M48.0000F20M2Z-EXT,2520mm晶振,6G路由器晶振特點：

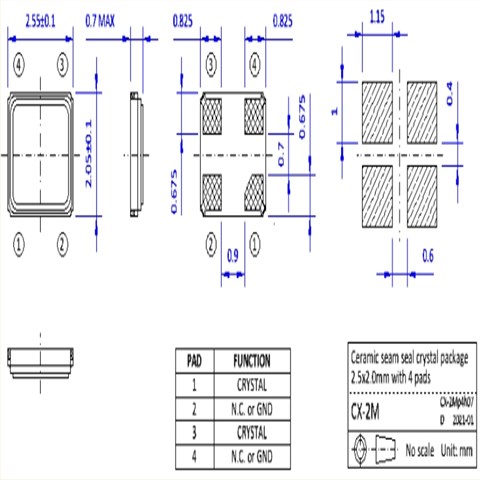

●微型包裝尺寸2.5 x 2.0x 0.5mm與4個墊
●優異的耐熱性和抗震性
●真空密封，可靠性高，老化率低
●符合AEC-Q200標準的汽車級產品可供選擇
NKG晶振,S2M48.0000F20M2Z-EXT,2520mm晶振,6G路由器晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
48MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±20ppm
Other options available
Stability over operating temp.
TC
±25ppm
Depending on operating temperaturerange, other options available
Operating temperature range
TOP
–40°C ~+85°C
Options available
Load capacitance
CL
20pF
Please specify load capacitance
Equivalent series resistance
ESR
40Ω~30Ω MAX
FUND MODE 40~ 60MHz
Drive level
DL
10µW TYP, 100µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
