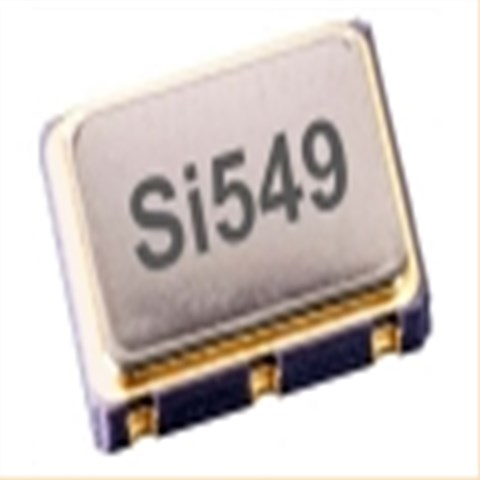

Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振,Skyworks晶振,Si549石英晶體振蕩器,549BBAA000368BCGR晶振,5032mm晶振,LVDS差分晶振,進口有源晶振,頻率122.88MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性10ppm,6G低抖動晶振,高穩定性晶振,FPGA/ASIC時鐘晶振,存儲器晶振,搜索加速晶振,視頻播放器晶振.

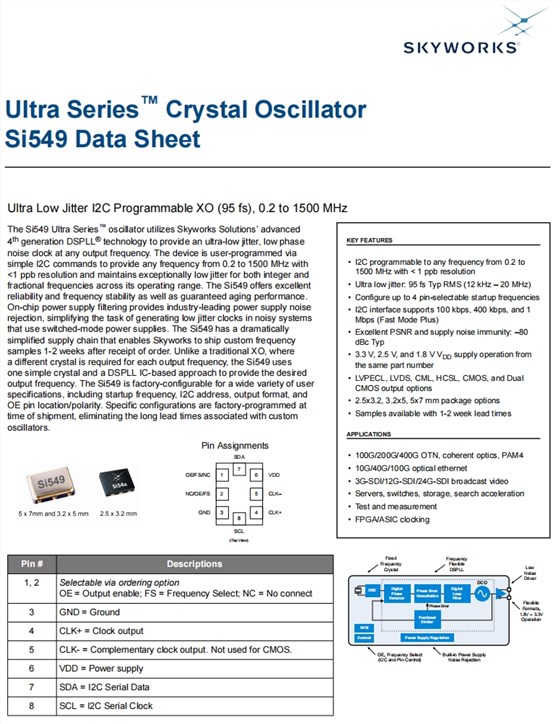

Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振特點：

•I2C可編程到任何頻率從0.2到1500 MHz，分辨率< 1 ppb

•超低抖動:95 fs類型RMS (12 kHz - 20 MHz)

•配置多達4引腳可選擇的啟動頻率

•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)

•出色的PSNR和電源抗噪性:-80 dBc類型

•3.3 V, 2.5 V和1.8 V VDD供電操作從相同的零件號

•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS輸出選項

•2.5x3.2, 3.2x5, 5x7 mm包裝選項

•樣品交付周期為1-2周

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振參數表

項目	符號	規格說明	條件
額定頻率	f_nom	122.88MHz	請聯系我們以便獲取其它可用頻率的相關信息
電源電壓	Vcc	3.3V
儲存溫度	T_stg	-55℃~+125℃	裸存
工作溫度	T_use	-40℃~ +85℃
頻率穩定性	f_tol	±10 ppm	+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流	IDD	121mA Max	LVDS
對稱性（占空比）	SYM	45%~55%	在輸出交叉點
輸出電壓	VOC	1.275V Max	LVDS
輸出電壓	VO	0.9Vpp Max	LVDS
輸入電壓	VIH	70%VDD Min
輸入電壓	VIL	30%VDD Max
上升下降時間	tr/tf	350ps Max	LVDS
起始時間	t str	3ms Max
相位抖動	tpj	150fs Max	100 MHz ≤ FCLK < 200 MHz

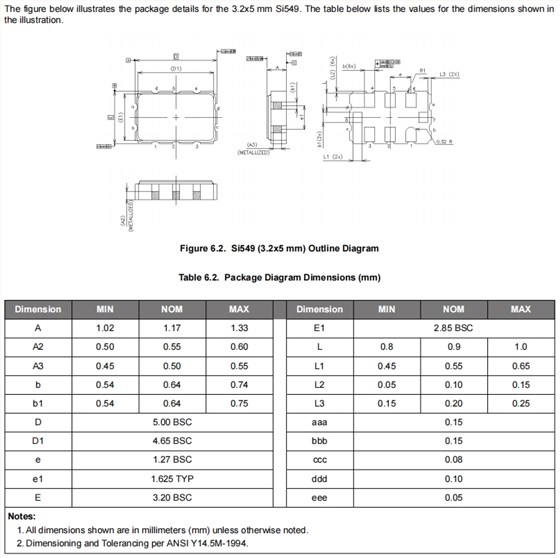

Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振尺寸圖

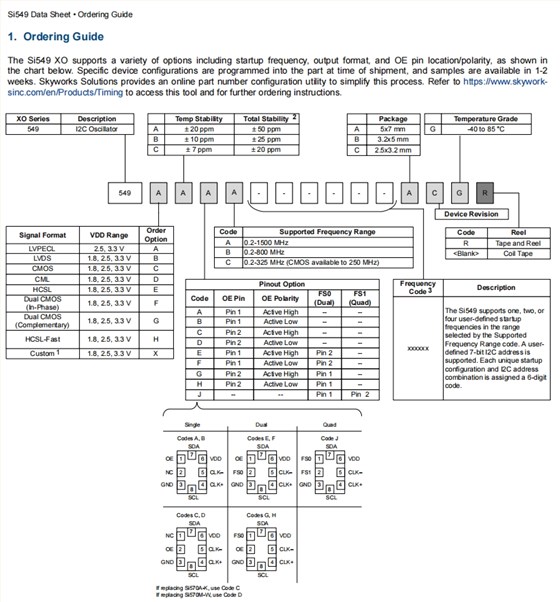

原廠編碼	品牌	型號	頻率	輸出	電壓	頻率穩定性	工作溫度
549BAAB000212BCGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BACB000148ACG	Skyworks Solutions Inc.	Ultra™ Si549	24.576 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549AAAC000118ACG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCCB002128ACG	Skyworks Solutions Inc.	Ultra™ Si549	200 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CCCC000141ACG	Skyworks Solutions Inc.	Ultra™ Si549	56.32 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BABA000368ACG	Skyworks Solutions Inc.	Ultra™ Si549	122.88 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549AAAA000426ACG	Skyworks Solutions Inc.	Ultra™ Si549	145 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAB001589ACG	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BBAA001968ACG	Skyworks Solutions Inc.	Ultra™ Si549	1.2 GHz	LVDS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549BAAC001741ACG	Skyworks Solutions Inc.	Ultra™ Si549	70.656 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAA000112ACG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549AAAA000112ACG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAB000118ACG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CCAC000141ACG	Skyworks Solutions Inc.	Ultra™ Si549	56.32 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CAAC000112ACG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAA001968ACG	Skyworks Solutions Inc.	Ultra™ Si549	1.2 GHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BACA001937ACG	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BACA000112ACG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCCB002127ACG	Skyworks Solutions Inc.	Ultra™ Si549	200 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCBA000122ACG	Skyworks Solutions Inc.	Ultra™ Si549	1 GHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CAAA000112ACG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BACB000112ACG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCAB000112ACG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCCB002129ACG	Skyworks Solutions Inc.	Ultra™ Si549	199 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCCB000126ACG	Skyworks Solutions Inc.	Ultra™ Si549	200 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CBAC000508ACG	Skyworks Solutions Inc.	Ultra™ Si549	25 MHz	CMOS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549DACB001619ACG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	CML	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549ACAA000112ACG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVPECL	2.5V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CCAC000118ACG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549GCDC002122ACG	Skyworks Solutions Inc.	Ultra™ Si549	71.135 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549AAAA001372ACG	Skyworks Solutions Inc.	Ultra™ Si549	7 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCAA000133ACG	Skyworks Solutions Inc.	Ultra™ Si549	500 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCCB001125ACG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549ACAA000111ACG	Skyworks Solutions Inc.	Ultra™ Si549	25 MHz	LVPECL	2.5V ~ 3.3V	±7ppm	-40°C ~ 85°C
549DAAB001963BCGR	Skyworks Solutions Inc.	Ultra™ Si549	304.125 MHz	CML	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCCB002127ACGR	Skyworks Solutions Inc.	Ultra™ Si549	200 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CAAC000385BCGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549AAAA000426ACGR	Skyworks Solutions Inc.	Ultra™ Si549	145 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CAAC000385BCG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CBAC000508ACGR	Skyworks Solutions Inc.	Ultra™ Si549	25 MHz	CMOS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549DAAA000485BCG	Skyworks Solutions Inc.	Ultra™ Si549	625 MHz	CML	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCCB002128ACGR	Skyworks Solutions Inc.	Ultra™ Si549	200 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BAAA000798BCG	Skyworks Solutions Inc.	Ultra™ Si549	1 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAC000111BCG	Skyworks Solutions Inc.	Ultra™ Si549	25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549GAAA000956BCG	Skyworks Solutions Inc.	Ultra™ Si549	6.78 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAC000115BCG	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549ABAB000115BCGR	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVPECL	2.5V ~ 3.3V	±10ppm	-40°C ~ 85°C
549BCAA000131BCGR	Skyworks Solutions Inc.	Ultra™ Si549	120 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CCAC002099BCG	Skyworks Solutions Inc.	Ultra™ Si549	1 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549AAAA000112BCGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CAAC000306BCGR	Skyworks Solutions Inc.	Ultra™ Si549	22.5792 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BBAA000368BCGR	Skyworks Solutions Inc.	Ultra™ Si549	122.88 MHz	LVDS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549BAAB000544BCG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549ABAA000131BCG	Skyworks Solutions Inc.	Ultra™ Si549	120 MHz	LVPECL	2.5V ~ 3.3V	±10ppm	-40°C ~ 85°C
549BCAC000177BCG	Skyworks Solutions Inc.	Ultra™ Si549	297 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BAAB000118ACGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAB001623BCGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BACA000420BCGR	Skyworks Solutions Inc.	Ultra™ Si549	644.53125 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BACA001937ACGR	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCAC000118BCG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CABC000121BCGR	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CAAA000112ACGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BABC002152BCGR	Skyworks Solutions Inc.	Ultra™ Si549	21.3333333 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CAAC000306BCG	Skyworks Solutions Inc.	Ultra™ Si549	22.5792 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAC000115BCGR	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCCB002129ACGR	Skyworks Solutions Inc.	Ultra™ Si549	199 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CAAA000112BCGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549GCDC002122ACGR	Skyworks Solutions Inc.	Ultra™ Si549	71.135 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549DACB001619ACGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	CML	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549AAAA000112BCG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549ABAA000112BCGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVPECL	2.5V ~ 3.3V	±10ppm	-40°C ~ 85°C
549BACB000148ACGR	Skyworks Solutions Inc.	Ultra™ Si549	24.576 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549GCAC000111BCG	Skyworks Solutions Inc.	Ultra™ Si549	25 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CBAC000112BCG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	CMOS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549BACA000281BCG	Skyworks Solutions Inc.	Ultra™ Si549	840 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAC000111BCGR	Skyworks Solutions Inc.	Ultra™ Si549	25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549GAAA000956BCGR	Skyworks Solutions Inc.	Ultra™ Si549	6.78 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549AAAA001372ACGR	Skyworks Solutions Inc.	Ultra™ Si549	7 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCAA000133ACGR	Skyworks Solutions Inc.	Ultra™ Si549	500 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BABC002152BCG	Skyworks Solutions Inc.	Ultra™ Si549	21.3333333 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CAAC001444BCG	Skyworks Solutions Inc.	Ultra™ Si549	38.4 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BBAA000313BCGR	Skyworks Solutions Inc.	Ultra™ Si549	300 MHz	LVDS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549AAAA000118BCG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAB000212BCG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CCAC000141ACGR	Skyworks Solutions Inc.	Ultra™ Si549	56.32 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCAA000131BCG	Skyworks Solutions Inc.	Ultra™ Si549	120 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BAAA000115BCGR	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549AAAA000118BCGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549ACAA000112BCGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVPECL	2.5V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BAAB001269BCGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCAC000177BCGR	Skyworks Solutions Inc.	Ultra™ Si549	297 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BAAA001968ACGR	Skyworks Solutions Inc.	Ultra™ Si549	1.2 GHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CAAC000148BCGR	Skyworks Solutions Inc.	Ultra™ Si549	24.576 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAC001741ACGR	Skyworks Solutions Inc.	Ultra™ Si549	70.656 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549ACAB000118BCGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVPECL	2.5V ~ 3.3V	±7ppm	-40°C ~ 85°C
549ACAA000112ACGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVPECL	2.5V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCAA000111BCG	Skyworks Solutions Inc.	Ultra™ Si549	25 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCAA000121BCG	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCCB001125ACGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BACC000520BCG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAC000544BCG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549ACAA000118BCGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVPECL	2.5V ~ 3.3V	±7ppm	-40°C ~ 85°C
549AADA000112BCGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CCAC000121BCG	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCAC000118BCGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CBAC000112BCGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	CMOS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549BACA000112ACGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAA000121BCGR	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAC000121BCGR	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAC000121BCG	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCAB000112ACGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BBAA000313BCG	Skyworks Solutions Inc.	Ultra™ Si549	300 MHz	LVDS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549CAAC000112ACGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAC000118BCG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CAAC001840BCGR	Skyworks Solutions Inc.	Ultra™ Si549	33.33 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BBAB000112BCGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549CAAA000112BCG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549ACAA000111ACGR	Skyworks Solutions Inc.	Ultra™ Si549	25 MHz	LVPECL	2.5V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BAAC000544BCGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CAAC001840BCG	Skyworks Solutions Inc.	Ultra™ Si549	33.33 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAA000798BCGR	Skyworks Solutions Inc.	Ultra™ Si549	1 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BBAA001968ACGR	Skyworks Solutions Inc.	Ultra™ Si549	1.2 GHz	LVDS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549BAAB000115BCG	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCBA000122ACGR	Skyworks Solutions Inc.	Ultra™ Si549	1 GHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549DABB001895BCG	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	CML	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549AAAC000118ACGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549ABAA000131BCGR	Skyworks Solutions Inc.	Ultra™ Si549	120 MHz	LVPECL	2.5V ~ 3.3V	±10ppm	-40°C ~ 85°C
549CCAC000121BCGR	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549ACAA000118BCG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVPECL	2.5V ~ 3.3V	±7ppm	-40°C ~ 85°C
549DCAC000121BCG	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	CML	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BACA000420BCG	Skyworks Solutions Inc.	Ultra™ Si549	644.53125 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CAAC000148BCG	Skyworks Solutions Inc.	Ultra™ Si549	24.576 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549ACAA000112BCG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVPECL	2.5V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CABC000121BCG	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAC000118BCGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549DAAB001963BCG	Skyworks Solutions Inc.	Ultra™ Si549	304.125 MHz	CML	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BACB001812BCGR	Skyworks Solutions Inc.	Ultra™ Si549	148.5 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BBAB000115BCGR	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVDS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549BAAA000121BCG	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549DABB001895BCGR	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	CML	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAB001589ACGR	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549DCAC000121BCGR	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	CML	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BACA000281BCGR	Skyworks Solutions Inc.	Ultra™ Si549	840 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BACB001812BCG	Skyworks Solutions Inc.	Ultra™ Si549	148.5 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CCAC000885BCGR	Skyworks Solutions Inc.	Ultra™ Si549	32.768 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BBAA000368BCG	Skyworks Solutions Inc.	Ultra™ Si549	122.88 MHz	LVDS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549ACAC002076BCGR	Skyworks Solutions Inc.	Ultra™ Si549	455 kHz	LVPECL	2.5V ~ 3.3V	±7ppm	-40°C ~ 85°C
549ACAC002076BCG	Skyworks Solutions Inc.	Ultra™ Si549	455 kHz	LVPECL	2.5V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BAAA000112ACGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CCAC000885BCG	Skyworks Solutions Inc.	Ultra™ Si549	32.768 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549GCAC000111BCGR	Skyworks Solutions Inc.	Ultra™ Si549	25 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BAAB000115BCGR	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAC000112BCG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CAAC001444BCGR	Skyworks Solutions Inc.	Ultra™ Si549	38.4 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCAA000111BCGR	Skyworks Solutions Inc.	Ultra™ Si549	25 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCCB000798BCG	Skyworks Solutions Inc.	Ultra™ Si549	1 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CAAC000112BCGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549GCCC000798BCGR	Skyworks Solutions Inc.	Ultra™ Si549	1 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCCB000798BCGR	Skyworks Solutions Inc.	Ultra™ Si549	1 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BBAB000115BCG	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVDS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549AAAA000112ACGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549AADA000112BCG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVPECL	2.5V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BABA000368ACGR	Skyworks Solutions Inc.	Ultra™ Si549	122.88 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAB001623BCG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BACC000520BCGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549CCAC000118ACGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CAAC000112BCG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	CMOS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCAA000313BCG	Skyworks Solutions Inc.	Ultra™ Si549	300 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCAA000313BCGR	Skyworks Solutions Inc.	Ultra™ Si549	300 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549GCCC000798BCG	Skyworks Solutions Inc.	Ultra™ Si549	1 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549CCAC002099BCGR	Skyworks Solutions Inc.	Ultra™ Si549	1 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549ACAB000118BCG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVPECL	2.5V ~ 3.3V	±7ppm	-40°C ~ 85°C
549ABAC001975BCGR	Skyworks Solutions Inc.	Ultra™ Si549	40.8 MHz	LVPECL	2.5V ~ 3.3V	±10ppm	-40°C ~ 85°C
549BCCA000798BCGR	Skyworks Solutions Inc.	Ultra™ Si549	1 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BCCA000798BCG	Skyworks Solutions Inc.	Ultra™ Si549	1 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BBAB000112BCG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±10ppm	-40°C ~ 85°C
549CCCC000141ACGR	Skyworks Solutions Inc.	Ultra™ Si549	56.32 MHz	CMOS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BAAB000544BCGR	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAB001269BCG	Skyworks Solutions Inc.	Ultra™ Si549	156.25 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549ABAA000112BCG	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVPECL	2.5V ~ 3.3V	±10ppm	-40°C ~ 85°C
549ABAC001975BCG	Skyworks Solutions Inc.	Ultra™ Si549	40.8 MHz	LVPECL	2.5V ~ 3.3V	±10ppm	-40°C ~ 85°C
549BAAA000115BCG	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCAA000121BCGR	Skyworks Solutions Inc.	Ultra™ Si549	100 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549BACA001924BCGR	Skyworks Solutions Inc.	Ultra™ Si549	285 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BAAC000112BCGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BACA001924BCG	Skyworks Solutions Inc.	Ultra™ Si549	285 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549BCCB000126ACGR	Skyworks Solutions Inc.	Ultra™ Si549	200 MHz	LVDS	1.8V ~ 3.3V	±7ppm	-40°C ~ 85°C
549DAAA000485BCGR	Skyworks Solutions Inc.	Ultra™ Si549	625 MHz	CML	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C
549ABAB000115BCG	Skyworks Solutions Inc.	Ultra™ Si549	125 MHz	LVPECL	2.5V ~ 3.3V	±10ppm	-40°C ~ 85°C
549BACB000112ACGR	Skyworks Solutions Inc.	Ultra™ Si549	10 MHz	LVDS	1.8V ~ 3.3V	±20ppm	-40°C ~ 85°C

首頁 Skyworks晶振

Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振

產品簡介

產品詳情

關于“Skyworks晶振,Si549石英晶體振蕩器,549BBAA000368BCGR晶振,5032mm晶振,LVDS差分晶振,進口有源晶振,6G低抖動晶振,高穩定性晶振,FPGA/ASIC時鐘晶振”的相關產品

熱點推薦
