X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz,X3AEEJNANF-26.000000晶振,臺灣Taitien晶振,1612mm晶振,頻率26MHz,超小型晶振,高精度晶振,低老化晶振,石英晶體諧振器,四腳貼片晶振,智能手機晶振,無線網絡晶振,藍牙模塊晶振,辦公自動化晶振,多媒體影音設備晶振.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz參數

Taitien晶振規格	單位	X3晶振	石英晶振基本條件
標準頻率	f_nom	26MHz	標準頻率，可提供其他頻率
儲存溫度	T_stg	-55℃~+125℃	裸存
工作溫度	T_use	-40℃~+105℃	標準溫度
激勵功率	DL	100μW Max.	推薦:1μW～100μW
頻率公差	f_— l	±20ppm	+25°C對于超出標準的規格說明, 請聯系我們以便獲取相關的信息
頻率溫度特征	f_tem	±20ppm	超出標準的規格請聯系我們.
負載電容	CL	12pF	超出標準說明,請聯系我們.
串聯電阻(ESR)	R1	150Ωmax	@25°C
頻率老化	f_age	±3×10-6/year Max.	+25°C,第一年

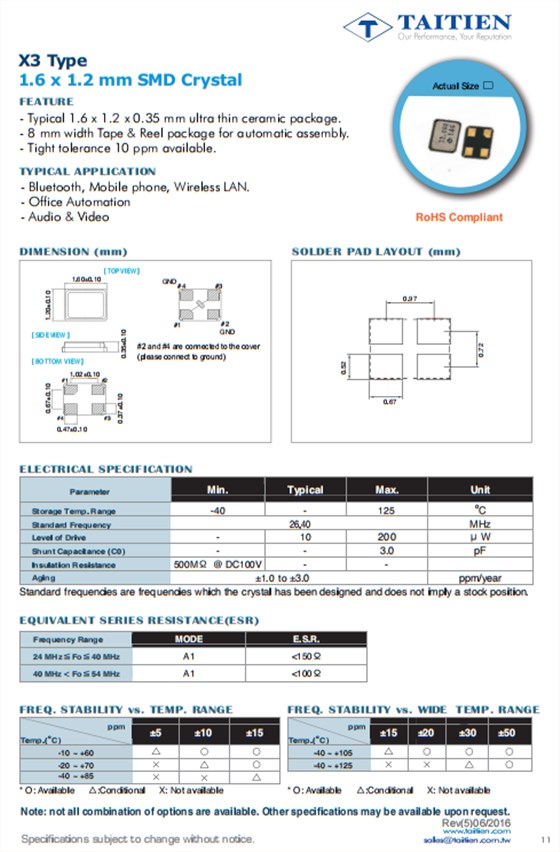

X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz 規格圖

原廠編碼	生產廠家	型號	頻率	工作溫度	尺寸
X3AEEJNANF-27.000000	Taitien	X3	27MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-26.000000	Taitien	X3	26MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-25.000000	Taitien	X3	25MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-27.120000	Taitien	X3	27.12MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-28.000000	Taitien	X3	28MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-29.000000	Taitien	X3	29MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-30.000000	Taitien	X3	30MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-38.400000	Taitien	X3	38.4MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-38.400000	Taitien	X3	38.4MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEEJNANF-38.400000	Taitien	X3	38.4MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-26.000000	Taitien	X3	26MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-26.000000	Taitien	X3	26MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-26.000000	Taitien	X3	26MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-27.000000	Taitien	X3	27MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-27.000000	Taitien	X3	27MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-29.000000	Taitien	X3	29MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-27.320000	Taitien	X3	27.32MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-27.120000	Taitien	X3	27.12MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-27.120000	Taitien	X3	27.12MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-30.000000	Taitien	X3	30MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-30.000000	Taitien	X3	30MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-33.000000	Taitien	X3	33MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-38.400000	Taitien	X3	38.4MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-38.400000	Taitien	X3	38.4MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-38.400000	Taitien	X3	38.4MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-40.000000	Taitien	X3	40MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-40.000000	Taitien	X3	40MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-40.000000	Taitien	X3	40MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-48.000000	Taitien	X3	48MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-48.000000	Taitien	X3	48MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3AEELNANF-48.000000	Taitien	X3	48MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-26.000000	Taitien	X3	26MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-26.000000	Taitien	X3	26MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-26.000000	Taitien	X3	26MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-27.000000	Taitien	X3	27MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-40.000000	Taitien	X3	27.12MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-30.000000	Taitien	X3	30MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-30.000000	Taitien	X3	30MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-30.000000	Taitien	X3	30MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-38.400000	Taitien	X3	38.4MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-38.400000	Taitien	X3	38.4MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-38.400000	Taitien	X3	38.4MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-40.000000	Taitien	X3	40MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-46.000000	Taitien	X3	46MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-44.000000	Taitien	X3	44MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-48.000000	Taitien	X3	48MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-48.000000	Taitien	X3	48MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEECNANF-52.000000	Taitien	X3	52MHz	-20°C ~ 70°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-27.000000	Taitien	X3	27MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-27.000000	Taitien	X3	27MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-27.000000	Taitien	X3	27MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-27.120000	Taitien	X3	27.12MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-27.120000	Taitien	X3	27.12MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-27.120000	Taitien	X3	27.12MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-30.000000	Taitien	X3	30MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-30.000000	Taitien	X3	30MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-30.000000	Taitien	X3	30MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-38.400000	Taitien	X3	38.4MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-38.400000	Taitien	X3	38.4MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-38.400000	Taitien	X3	38.4MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-48.000000	Taitien	X3	48MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-48.000000	Taitien	X3	48MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEEJNANF-48.000000	Taitien	X3	48MHz	-40°C ~ 105°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-26.000000	Taitien	X3	26MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-26.000000	Taitien	X3	26MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-26.000000	Taitien	X3	26MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-27.000000	Taitien	X3	27MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-27.000000	Taitien	X3	27MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-27.000000	Taitien	X3	27MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-27.120000	Taitien	X3	27.12MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-27.120000	Taitien	X3	27.12MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-27.120000	Taitien	X3	27.12MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
X3LEELNANF-30.000000	Taitien	X3	30MHz	-40°C ~ 85°C	0.063" L x 0.047" W (1.60mm x 1.20mm)
