XIHEELAANF-4.000000,-40~85°C,4MHz,臺灣泰藝插件晶振,臺灣泰藝晶振,XIHEELAANF-4.000000晶振,工作溫度-40~85°C,頻率4MHz,兩腳插件晶振,XI無源晶振,進口石英晶振,耐高溫晶振,汽車電子晶振,藍牙音響晶振,家用電視機頂盒晶振,無線網絡晶振,DECT晶振.
XIHEELAANF-4.000000,-40~85°C,4MHz,臺灣泰藝插件晶振參數
Taitien晶振規格
單位
XI晶振
石英晶振基本條件
標準頻率
f_nom
4MHz
標準頻率，可提供其他頻率
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~+85℃
標準溫度
激勵功率
DL
100μW
推薦:1μW～100μW
頻率公差
f_— l
頻率溫度特征
f_tem
±20ppm
超出標準的規格請聯系我們.
負載電容
CL
12pF
超出標準說明,請聯系我們.
串聯電阻(ESR)
R1
140Ωmax
@25°C
頻率老化
f_age
±5×10-6/year Max.
+25°C,第一年

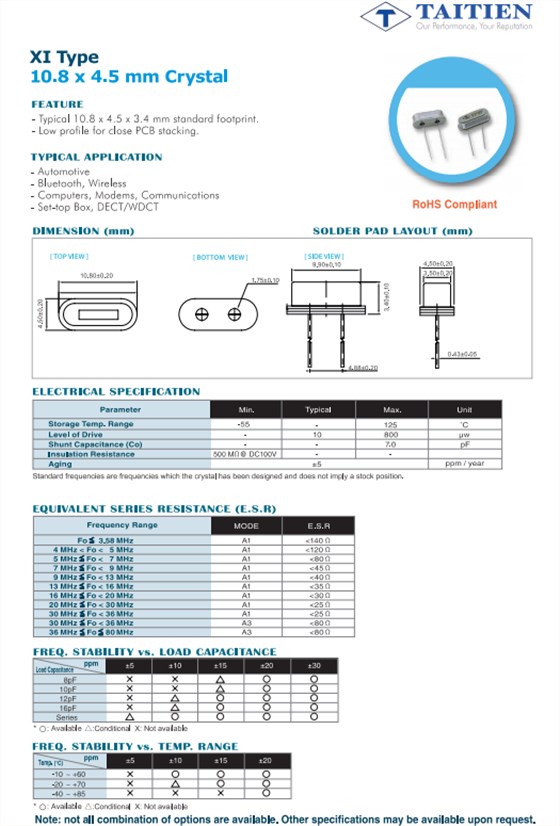

XIHEELAANF-4.000000,-40~85°C,4MHz,臺灣泰藝插件晶振尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 工作溫度 | 尺寸 |
| XIHEELAANF-11.059200 | Taitien | XI | 11.0592MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHEELAANF-16.000000 | Taitien | XI | 16MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHEELAANF-25.000000 | Taitien | XI | 25MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHEELAANF-4.000000 | Taitien | XI | 4MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHEELAANF-7.372800 | Taitien | XI | 7.3728MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHEELAANF-8.000000 | Taitien | XI | 8MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-18.000000 | Taitien | XI | 18MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-19.000000 | Taitien | XI | 19MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-20.000000 | Taitien | XI | 20MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-21.000000 | Taitien | XI | 21MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-22.000000 | Taitien | XI | 22MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-23.000000 | Taitien | XI | 23MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-24.000000 | Taitien | XI | 24MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-26.000000 | Taitien | XI | 26MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-27.000000 | Taitien | XI | 27MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-28.000000 | Taitien | XI | 28MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-29.000000 | Taitien | XI | 29MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-30.000000 | Taitien | XI | 30MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-31.000000 | Taitien | XI | 31MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| XIHCELAANF-32.000000 | Taitien | XI | 32MHz | -40°C ~ 85°C | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
