當前位置：首頁 » 貼片晶振 » MtronPTI晶振 » M12532JM 27.000000,MtronPTI超小型晶振,3225mm諧振器

prevnext

M12532JM 27.000000,MtronPTI超小型晶振,3225mm諧振器

頻率：27MHz

尺寸：3.2x2.5mm

M12532JM 27.000000,MtronPTI超小型晶振,3225mm諧振器，美國MtronPTI晶振，麥特倫皮晶振，型號：M1253系列晶振，編碼為：M12532JM 27.000000諧振器，頻率：27MHz，頻率穩定性：±50ppm，頻率容差：±30ppm，負載電容：18pF，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x2.5mm封裝，四腳貼片晶振，無源晶振，石英晶振，3225晶振，石英晶體諧振器，SMD晶振，具有超小型，輕薄型，高品質晶振，高性能，高質量等特點。進口晶振應用于：手持式電子設備，汽車電子晶振，便攜式儀器，無線藍牙晶振，智能家居等應用。

訂購熱線：0755-27837162

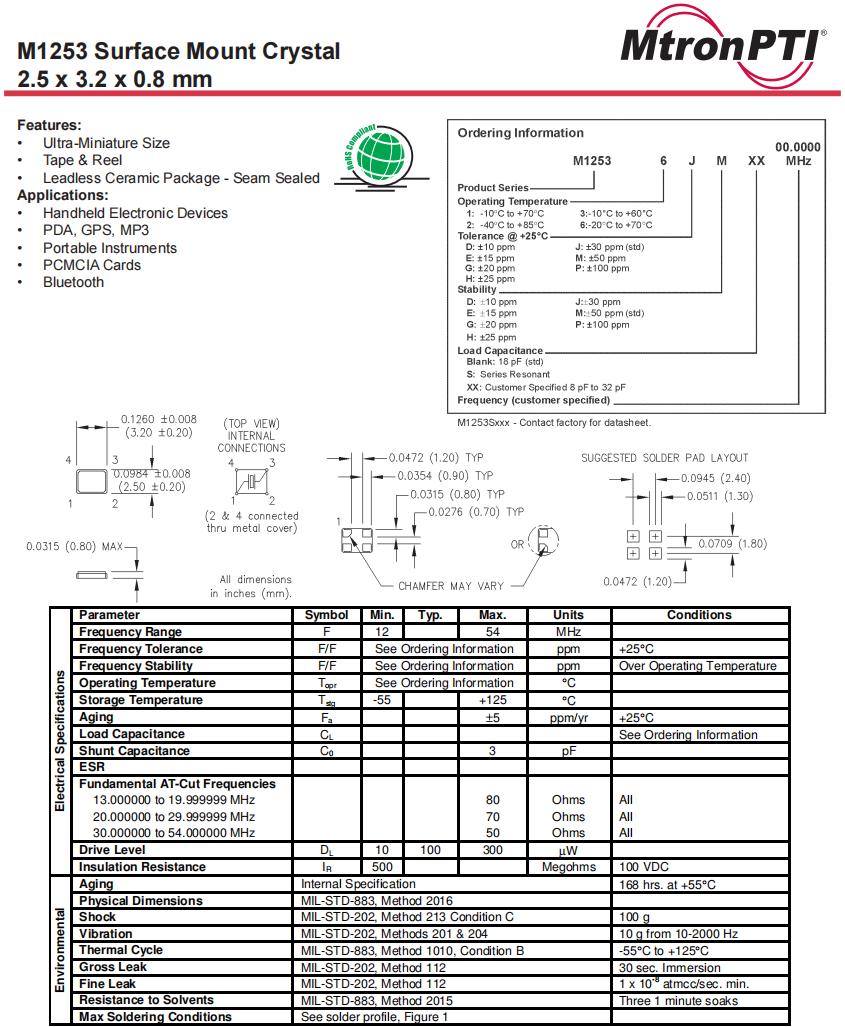

M12532JM 27.000000,MtronPTI超小型晶振,3225mm諧振器,參數表

品牌	MtronPTI麥特倫皮晶振
型號	M1253
物料編碼	M12532JM 27.000000
頻率	27MHz
頻率穩定性	±50ppm
頻率容差	±30ppm
負載電容	18pF
工作溫度	-40℃至+85℃
尺寸	3.2x2.5mm

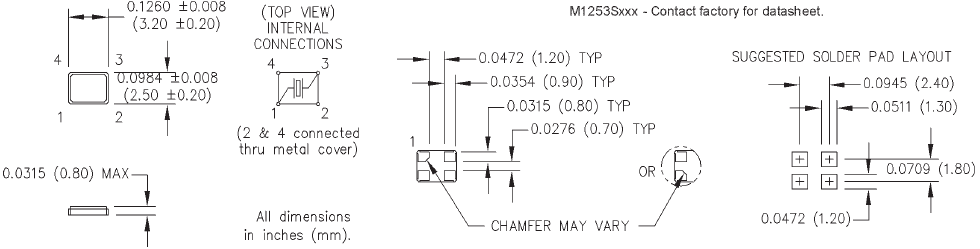

M12532JM 27.000000,MtronPTI超小型晶振,3225mm諧振器,尺寸圖

產品編碼	型號	頻率	包裝	頻率穩定性	頻率容差
M12532HH 30.000000	M1253	30MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 50.000000	M1253	50MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532JJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ 27.000000	M1253	27MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ08 16.384000	M1253	16.384MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ08 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ09 50.000000	M1253	50MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JM 15.360000	M1253	15.36MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM 27.000000	M1253	27MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM 29.491200	M1253	29.4912MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM 40.000000	M1253	40MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM20 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12536GJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M12536JM 24.000000	石英晶體	24MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12536JM 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12536JM 50.000000	M1253	50MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M1253S072 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±30 ppm
M1253S107 52.000000	M1253	52MHz	2.5 x 3.2 mm	±15 ppm	±10 ppm
M1253S108 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M1253S116 16.000000	M1253	16MHz	2.5 x 3.2 mm	±10 ppm, ±15 ppm	±10 ppm
M1253S162 24.000000	M1253	24MHz	2.5 x 3.2 mm	±15 ppm	±15 ppm
M1253S164 48.000000	M1253	48MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M1253S204 25.000000	M1253	25MHz	2.5 x 3.2 mm	±100 ppm	±50 ppm
M1253S207 20.736000	M1253	20.736MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M1253S208 26.000000	M1253	26MHz	2.5 x 3.2 mm	±9 ppm	±10 ppm
M1253S211 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M1253S218 48.000000	M1253	48MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M1253S219 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M1253S220 48.000000	M1253	48MHz	2.5 x 3.2 mm	±15 ppm	±10 ppm
M1253S224 32.000000	M1253	32MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M1253S225 26.000000	M1253	26MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M1253S226 12.000000	M1253	12MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M1253S227 25.000000	M1253	25MHz	2.5 x 3.2 mm	±25 ppm	±10 ppm
M1253S229 48.000000	M1253	48MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M1253S230 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
