NKG晶振,CT20M26.0000F10V11-100,超小型熱敏晶體,6G電信應用晶振
頻率：26MHZ
尺寸：2.0×1.6×0.8mm
NKG晶振,CT20M26.0000F10V11-100,超小型熱敏晶體,6G電信應用晶振,NKG晶振,CT20M熱敏晶體,石英晶振,CT20M26.0000F10V11-100晶振,無源晶振,晶體諧振器,2016mm晶振,四腳貼片晶振,SMD晶振,頻率26MHz,負載10pF,頻率容差10ppm,工作溫度-30~85°C,超小型晶振,高可靠性晶振,無鉛環保晶振,6G電信應用程序晶振,藍牙模塊晶振,無線應用晶振,智能設備晶振.
NKG晶振,CT20M26.0000F10V11-100,超小型熱敏晶體,6G電信應用晶振,NKG晶振,CT20M熱敏晶體,石英晶振,CT20M26.0000F10V11-100晶振,無源晶振,晶體諧振器,2016mm晶振,四腳貼片晶振,SMD晶振,頻率26MHz,負載10pF,頻率容差10ppm,工作溫度-30~85°C,超小型晶振,高可靠性晶振,無鉛環保晶振,6G電信應用程序晶振,藍牙模塊晶振,無線應用晶振,智能設備晶振.
NKG晶振,CT20M26.0000F10V11-100,超小型熱敏晶體,6G電信應用晶振特點：
●內置熱敏電阻100kΩ用于溫度測量

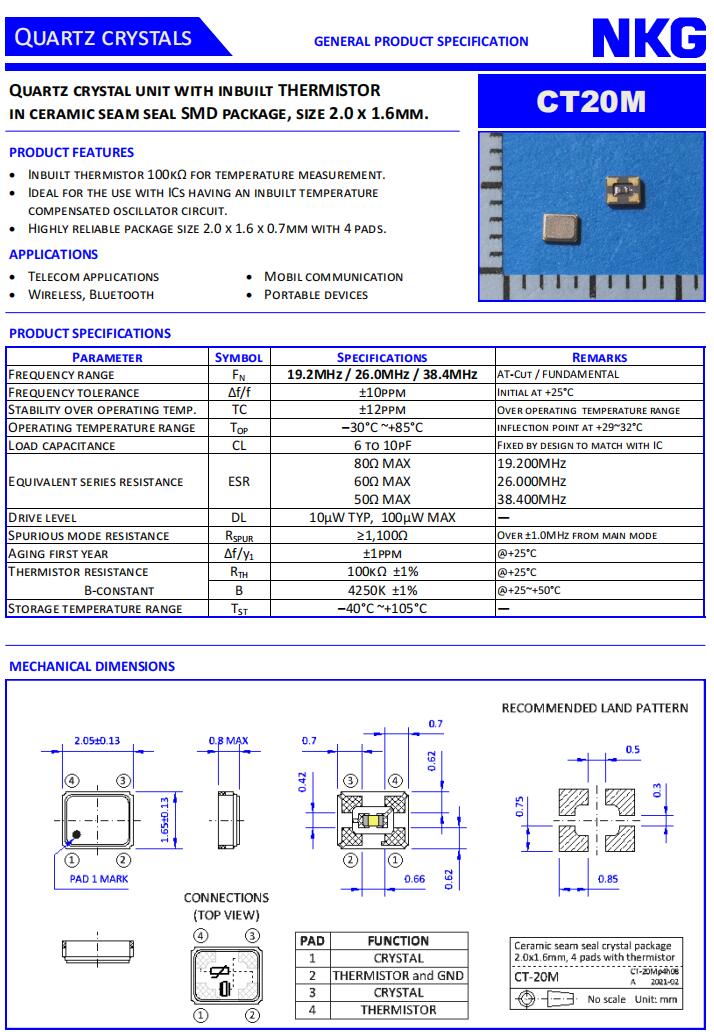

NKG晶振,CT20M26.0000F10V11-100,超小型熱敏晶體,6G電信應用晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
26MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±10ppm
Other options available
Stability over operating temp.
TC
±10ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–30°C ~+85°C
Options available
Load capacitance
CL
10pF
Please specify load capacitance
Equivalent series resistance
ESR
60Ω MAX
26MHz
Drive level
DL
10µW TYP, 100µW MAX
-
Spurious mode resistance
RSPUR
≥1,100Ω
Over ±1.0MHz from main mode
Aging first year
Δf/y1
±1ppm
@+25°C
Storage temperature range
TST
–40°C ~+105°C
-
