NKG晶振,CT25M19.2000F10V1T-100,2520熱敏晶振,6G移動通信晶振
頻率：19.2MHz
尺寸：2.5×2.0×0.8mm
NKG晶振,CT25M19.2000F10V1T-100,2520熱敏晶振,6G移動通信晶振,NKG晶振,CT25M石英晶振,熱敏晶振,CT25M19.2000F10V1T-100晶振,晶體諧振器,2520晶振,進口晶振,四腳貼片晶振,SMD晶振,頻率19.2MHz,負載10pF,頻率容差10ppm,工作溫度-30~85°C,高品質晶振,高精度晶振,輕薄小晶振,6G移動通信晶振,便攜式設備晶振,藍牙音響晶振,消費電子產品晶振.
NKG晶振,CT25M19.2000F10V1T-100,2520熱敏晶振,6G移動通信晶振,NKG晶振,CT25M石英晶振,熱敏晶振,CT25M19.2000F10V1T-100晶振,晶體諧振器,2520晶振,進口晶振,四腳貼片晶振,SMD晶振,頻率19.2MHz,負載10pF,頻率容差10ppm,工作溫度-30~85°C,高品質晶振,高精度晶振,輕薄小晶振,6G移動通信晶振,便攜式設備晶振,藍牙音響晶振,消費電子產品晶振.
NKG晶振,CT25M19.2000F10V1T-100,2520熱敏晶振,6G移動通信晶振特點：
●內置熱敏電阻100kΩ用于溫度測量
●非常適合與內置溫度補償振蕩器電路的ICs一起使用

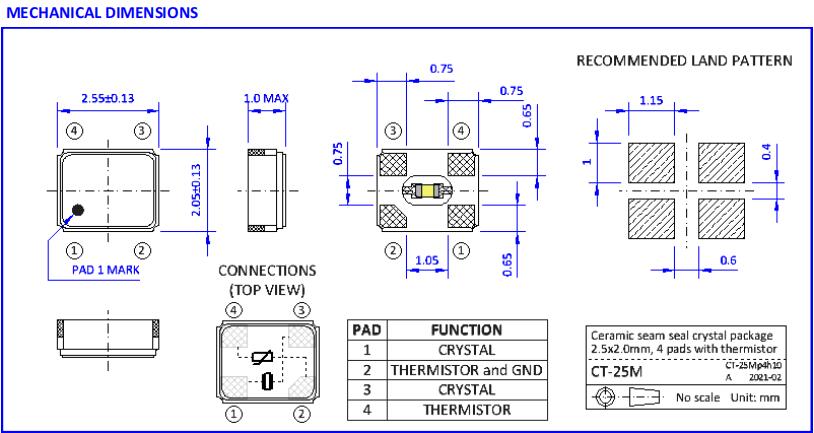

●高度可靠的包裝尺寸2.5x2.0x0.8mm，帶有4個襯墊

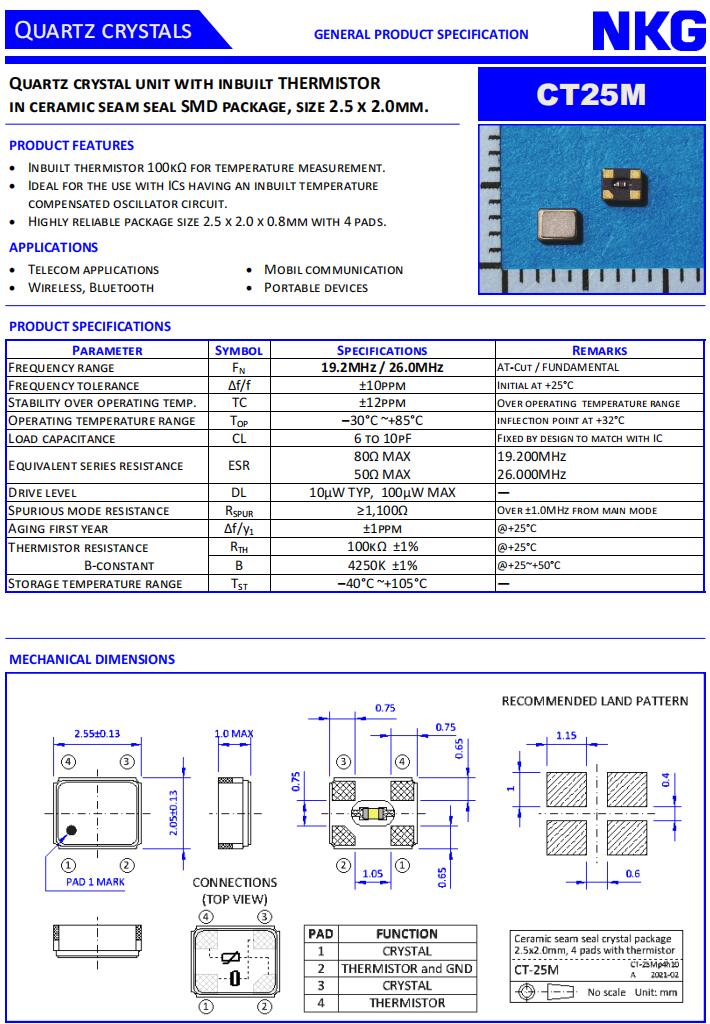

NKG晶振,CT25M19.2000F10V1T-100,2520熱敏晶振,6G移動通信晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
19.2MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±10ppm
Other options available
Stability over operating temp.
TC
±12ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–30°C ~+85°C
Options available
Load capacitance
CL
10pF
Please specify load capacitance
Equivalent series resistance
ESR
80Ω MAX
19.2MHz
Drive level
DL
10µW TYP, 100µW MAX
-
Spurious mode resistance
RSPUR
≥1,100Ω
Over ±1.0MHz from main mode
Aging first year
Δf/y1
±1ppm
@+25°C
Storage temperature range
TST
–40°C ~+105°C
-
