香港NKG晶體,S6M25.0000F20M1Y-EXT,6035mm晶振,6G基站晶振
頻率：25MHZ
尺寸：6.0×3.5×1.0mm
香港NKG晶體,S6M25.0000F20M1Y-EXT,6035mm晶振,6G基站晶振,香港NKG晶體,S6M無源晶振,石英晶振,S6M25.0000F20M1Y-EXT晶振,6035mm晶振,晶體諧振器,四腳貼片晶振,SMD晶振,頻率25MHz,負載20pF,頻率容差10ppm,工作溫度-40~85°C,高精度晶振,低老化晶振,高可靠晶振,6G基站晶振,GPS導航設備晶振,網絡交換機晶振,移動通信晶振.
香港NKG晶體,S6M25.0000F20M1Y-EXT,6035mm晶振,6G基站晶振,香港NKG晶體,S6M無源晶振,石英晶振,S6M25.0000F20M1Y-EXT晶振,6035mm晶振,晶體諧振器,四腳貼片晶振,SMD晶振,頻率25MHz,負載20pF,頻率容差10ppm,工作溫度-40~85°C,高精度晶振,低老化晶振,高可靠晶振,6G基站晶振,GPS導航設備晶振,網絡交換機晶振,移動通信晶振.
香港NKG晶體,S6M25.0000F20M1Y-EXT,6035mm晶振,6G基站晶振特點：

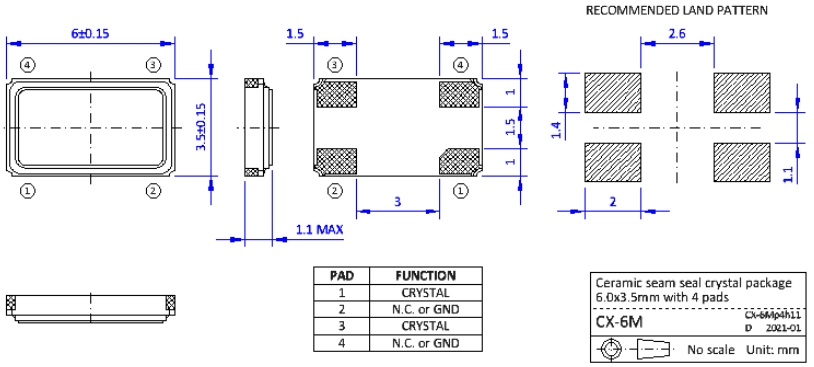

●小包裝尺寸6.0 x 3.5x 1.0mm與4個墊
●優異的耐熱性和抗震性
●高可靠的縫封封裝，低老化
●符合AEC-Q200標準的汽車級產品可供選擇

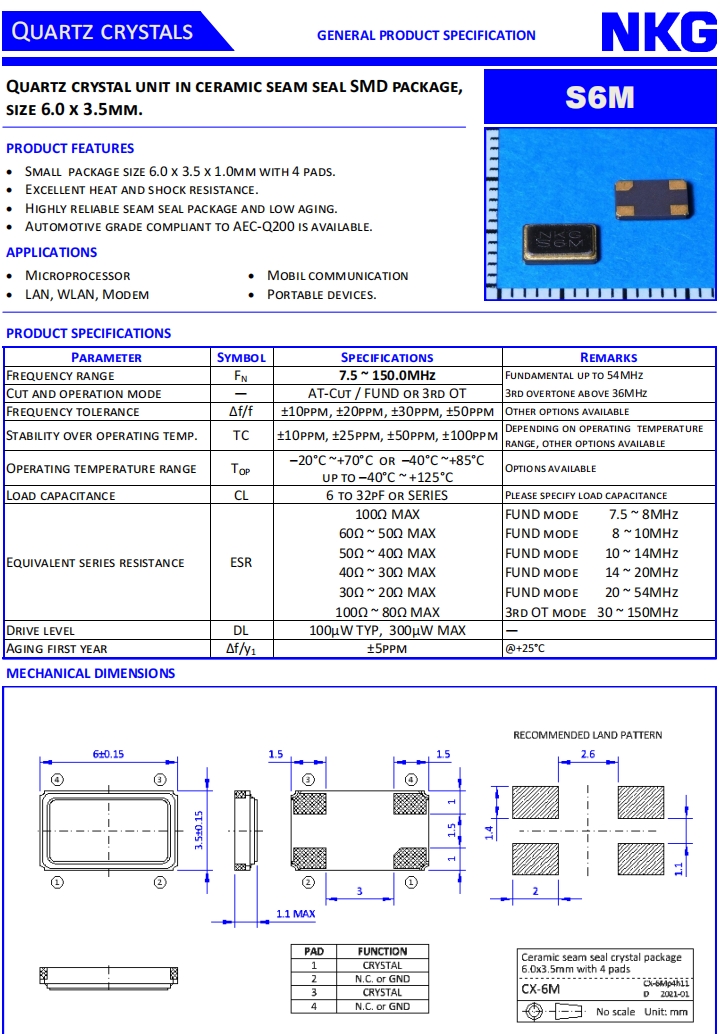

香港NKG晶體,S6M25.0000F20M1Y-EXT,6035mm晶振,6G基站晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
25MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±10ppm
Other options available
Stability over operating temp.
TC
±15ppm
Depending on operating temperature range, other options available
Operating temperature range
TOP
–40°C ~+85°C
Options available
Load capacitance
CL
20pF
Please specify load capacitance
Equivalent series resistance
ESR
30Ω~20Ω MAX
FUND MODE 20~ 54MHz
Drive level
DL
100µW TYP, 300µW MAX
-
Aging first year
Δf/y1
±5ppm
@+25°C
