12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振
頻率：24M
尺寸：3225mm
12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振
12.88727MHz無源晶體諧振器,采用KX-7T成熟封裝與3225小型晶振架構,頻率精度嚴苛控制在±10ppm,工業級工作溫度范圍(-40℃~+85℃)內溫漂表現穩定,可精準匹配無線通信模塊,藍牙終端等高頻信號傳輸場景對時鐘源的高精度要求.3.2mm×2.5mm的迷你貼裝尺寸,能顯著節省PCB板布局空間,為高密度電路設計提供高靈活性的選型方案.
12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振
|
原廠型號 Originalmodel： |
12.88727 |
品牌brand： |
|
|
型號名稱 Modelname： |
KX-7T |

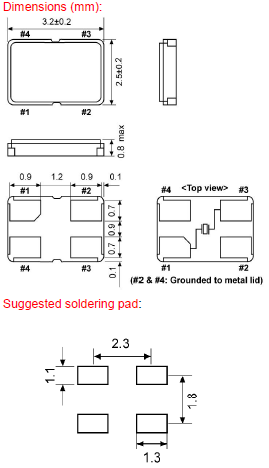

Size/Dimension尺寸 |
3225mm |
|
Type系列： |
MHz Crystal |
高度PackageHeight： |
0.8mm |
|
頻率 frequency： |
|
溫度OperatingTemperature |
-40°C ~ 85°C |
|
Frequency Stability頻率穩定度 |
- |
腳位Termination： |
4Pad |
|
frequencytolerance頻率容差 |
10PP |
封裝類型PackageType： |
4-smd |
|
Loadcapacitance 負載電容 |
8PF |
最小包裝數MPQ： |
|
12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振
12.88727無源晶體諧振器,KX-7T晶振,3225小型貼裝晶振
|
12.87000 |
KX-327V |
1.25 | 1.05 | 0.5 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87001 |
KX-327V |
1.25 | 1.05 | 0.5 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87002 |
KX-327V |
1.25 | 1.05 | 0.5 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87034 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
4 pF |
± 20 ppm |
|
12.87080 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87081 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87083 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87086 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
6 pF |
± 10 ppm |
|
12.87090 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 10 ppm |
|
12.87095 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 10 ppm |
|
12.87105 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
6 pF |
± 10 ppm |
|
12.87107 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87109 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12 pF |
± 15 ppm |
|
12.87110 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87111 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87112 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87113 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 5.0 ppm |
|
12.87114 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87115 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87116 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87118 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87119 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87120 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87121 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87123 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
6 pF |
± 30 ppm |
|
12.87126 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87127 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
6 pF |
± 30 ppm |
|
12.87128 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87129 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87130 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87131 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87132 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87133 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87134 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
7 pF |
± 10 ppm |
|
12.87135 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87136 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87137 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87138 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 5.0 ppm |
|
12.87139 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
7 pF |
± 10 ppm |
|
12.87143 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87144 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 5.0 ppm |
|
12.87145 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87146 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 10 ppm |
|
12.87147 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 10 ppm |
|
12.87148 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87149 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87150 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87151 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 30 ppm |
|
12.87152 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87153 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87155 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87157 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 5.0 ppm |
|
12.87158 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87159 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87160 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87161 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
12.5 pF |
± 5.0 ppm |
|
12.87163 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87164 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
9 pF |
± 30 ppm |
|
12.87165 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87166 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
