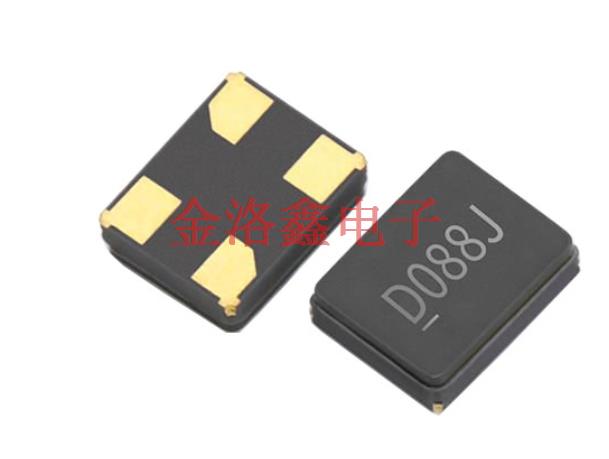

1N240000AB0J,DSX321G晶振,日本KDS晶振,車載應用晶振,陶瓷晶振
頻率：40.000MHZ
尺寸：3.20mm x 2.50mm
1N240000AB0J,DSX321G晶振,日本KDS晶振,車載應用晶振,陶瓷晶振,DSX321G系列則展現出更寬的頻率覆蓋范圍,支持從7.9MHz到64MHz的多檔位頻率選擇,其中8.000MHz型號在車載GPS定位系統中應用最為廣泛.溫度特性是衡量車載晶振性能的核心指標.1N240000AB0J雖未直接標注寬溫性能,但作為同系列車載級產品,其設計標準與DSX321G保持一致,可滿足汽車電子對溫度穩定性的嚴苛要求.
訂購熱線：0755-27837162
1N240000AB0J,DSX321G晶振,日本KDS晶振,車載應用晶振,陶瓷晶振
KDS作為陶瓷晶振領域的技術領導者,在1N240000AB0J和DSX321G系列產品中融入了多項專利技術,使其在車載環境中具備獨特優勢.其中最關鍵的是多層陶瓷封裝結構,這種設計不僅能有效屏蔽外界電磁干擾(EMI),還能降低溫度變化對晶體諧振頻率的影響.與傳統石英晶振相比,陶瓷晶振的熱膨脹系數更接近PCB基板材料,可減少溫度循環過程中產生的應力,從而提升產品的長期可靠性.在頻率穩定性控制方面,DSX321G系列采用了KDS晶振獨有的精密激光微調技術,可將初始頻率公差精確控制在±10ppm~±50ppm范圍內,客戶可根據應用需求選擇不同精度等級.對于要求極高的車載安全系統,還可提供±8ppm的定制化版本,在-10℃~+60℃的溫度區間內實現近乎零漂移的頻率輸出.這種高精度特性使得DSX321G能夠滿足自動駕駛系統中傳感器數據同步的嚴苛要求,確保激光雷達、毫米波雷達等設備的時間戳精度.
1N240000AB0J,DSX321G晶振,日本KDS晶振,車載應用晶振,陶瓷晶振
| 原廠型號 Originalmodel： | 1N240000AB0J | 品牌brand： | KDS晶振 |
| 品牌brand： | KDS晶振 | ESR（等效串聯電阻）Resistance) | - |
| 型號名稱 Modelname： | DSX321G | 溫度OperatingTemperature | −30 ?＋85℃ |
| Type系列： | MHZCrystal | 腳位Termination： | 4pad |
| 頻率 frequency： | 40.000MHZ | 封裝類型PackageType： | 4-Smd |
| FrequencyStability頻率穩定度 | - | 高度PackageHeight： | 0.75mm |
| frequencytolerance頻率容差 | ±15ppm | 最小包裝數MPQ： | 3000 |
| Loadcapacitance 負載電容 | 15PF | 包裝Packaging： | TapeandReel |
| Size/Dimension尺寸 | 3225晶振 | 安裝方式MountingStyle： | SurfaceMount |
1N240000AB0J,DSX321G晶振,日本KDS晶振,車載應用晶振,陶瓷晶振
1N240000AB0J,DSX321G晶振,日本KDS晶振,車載應用晶振,陶瓷晶振
| KDS晶振 | 1TJH125DR1A0004 | DST1610A | 1610 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | TJF080DP1AA003 | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF080DP1AA003 | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF0SPDJ1AI00S | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF080DP1AI00P | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF090DP1AI007 | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AI008 | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF125DP1AI009 | DST310S | 3215 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TJF090DP1AA00L | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF080DP1AA00K | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AA00G | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF0SPDN1A000B | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TD125DGNS003 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS036 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS002 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD060DHNS014 | DT-26 | 206 | 32.768KHZ | 6.0PF | 20PPM |
| KDS晶振 | 1TD125BHNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD075BHNS001 | DT-26 | 206 | 32.768KHZ | 7.5PF | 10PPM |
| KDS晶振 | 1TD125BFNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD1001HNS001 | DT-26 | 206 | 32.768KHZ | 10.0PF | -6/+2PPM |
| KDS晶振 | 1TD1250HNS005 | DT-26 | 206 | 32.768KHZ | 12.5PF | 30/40P |
| KDS晶振 | 1TC125DFNS030 | DT-38 | 308 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TC125NFNS002 | DT-38 | 308 | 32.768KHZ | 12.5PF | 1000PPM |
| KDS晶振 | 1TC125AFSS003 | DT-38 | 308 | 32.768KHZ | 12.5PF | 5PPM |
| KDS晶振 | 1TC250E65 | DT-38 | 308 | 32.768KHZ | 12.5PF | +12/+28PPM |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000MHZ | 10PF | 10PPM |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6MHZ | 10PF | 30PPM |
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332MHZ | 12PF | 20PPM |
| KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000MHZ | 20PF | 30PPM |
| KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000MHZ | 10PF | 20PPM |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000MHZ | 11PF | 12PPM |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000MHZ | 15PF | 15PPM |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AJ100005B | SMD-49 | 11*4.6 | 10.000MHZ | 12PF | 50PPM |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576MHZ | 18PF | 30PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000MHZ | 12.9PF | 20PPM |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400MHZ | 12PF | 50ppm |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367MHZ | 2.8V | 1.5ppm |
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC09382 | DSA535SG | 5032 | 18.432MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000MHZ | 12PF | 15ppm |
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000MHZ | 10PF | 30ppm |
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000MHZ | 9PF | 10ppm |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000MHZ | 8PF | 10ppm |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000MHZ | 10PF | 20ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6MHZ | 3.3V | 100ppm |
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000MHZ | 7PF | 20PPM |
