403C11A32M00000-3225mm-10ppm-32M-10pf
頻率：32MHz
尺寸：3.2mm x 2.5mm
403C11A32M00000-3225mm-10ppm-32M-10pf,403C11A32M00000,美國西迪斯晶振,3225mm石英晶振,精度10ppm,頻率32M,負載10pf,SMD進口晶振,無源晶振,無線路由器晶振,藍牙音響晶振,筆記本電腦晶振,便攜式設備晶振.
403C11A32M00000-3225mm-10ppm-32M-10pf,403C11A32M00000,美國西迪斯晶振,3225mm石英晶振,精度10ppm,頻率32M,負載10pf,SMD進口晶振,無源晶振,無線路由器晶振,藍牙音響晶振,筆記本電腦晶振,便攜式設備晶振.
403C11A32M00000-3225mm-10ppm-32M-10pf 特征
1.標準3.2mm x 2.5mm焊縫封裝 基本晶體設計
2.頻率范圍10 - 60MHz, 頻率公差 ±30ppm標準, 頻率穩定性 ±30ppm標準 ,工作溫度-40°C~+85°C
3.膠帶和卷軸包裝標準, EIA-481 符合RoHS/綠色標準
4.402型是一種低成本的石英諧振器,廣泛用于商業應用,包括WLAN/WiMax/WiFi, A/V，藍牙，ZigBee和USB接口,筆記本電腦,電腦外圍設備,便攜式設備。
403C11A32M00000-3225mm-10ppm-32M-10pf參數
工作溫度范圍內的頻率穩定性 ( ref. to
+25°C)
項目
數值
頻率
32MHz
操作模式
Fundamental
晶體切割
AT-Cut
工作溫度
-20°C to +70°C
保存溫度
-40°C to +100°C
頻率公差 @ +25°C
± 30PPM
± 30PPM
等效串聯電阻(R1)
60 Ω
并聯電容 (C0)
3.0pF Typical, 5.0pF Maximum
負載電容 (CL)
10 pF
激勵功率
200 μW Max
老化 @ +25°C
±3ppm/yr Typical
絕緣電阻
500M Ohms @ DC 100V

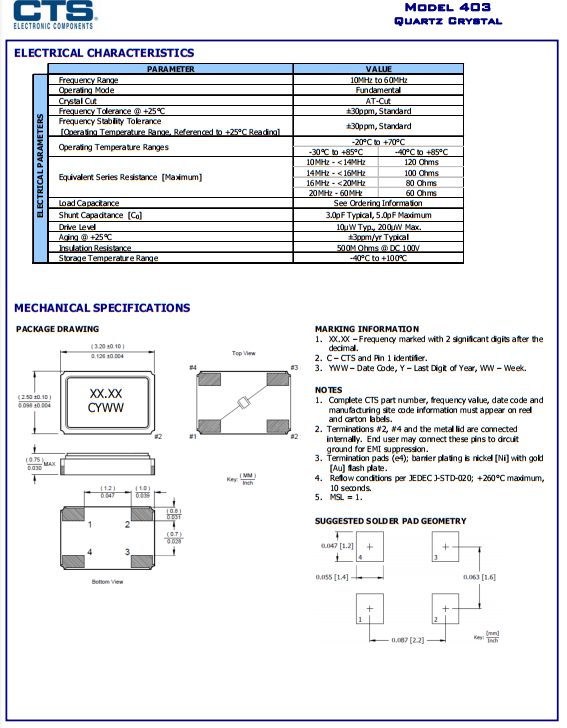

403C11A32M00000-3225mm-10ppm-32M-10pf尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 | ESR電阻 | 工作溫度 |
| 403C11A32M00000 | CTS 晶振 | 403 | 32MHz | ±10ppm | ±10ppm | 10pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D25M00000 | CTS 晶振 | 403 | 25MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D12M00000 | CTS 晶振 | 403 | 12MHz | ±50ppm | ±30ppm | 18pF | 150 Ohm | -20°C ~ 70°C |
| 403C35D24M00000 | CTS 晶振 | 403 | 24MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35E13M00000 | CTS 晶振 | 403 | 13MHz | ±50ppm | ±30ppm | 20pF | 150 Ohm | -20°C ~ 70°C |
| 403C35E27M00000 | CTS 晶振 | 403 | 27MHz | ±50ppm | ±30ppm | 20pF | 60 Ohm | -20°C ~ 70°C |
| 403C11A16M00000 | CTS 晶振 | 403 | 16MHz | ±10ppm | ±10ppm | 10pF | 80 Ohm | -20°C ~ 70°C |
| 403C11A24M00000 | CTS 晶振 | 403 | 24MHz | ±10ppm | ±10ppm | 10pF | 60 Ohm | -20°C ~ 70°C |
| 403C11A16M80000 | CTS 晶振 | 403 | 16.8MHz | ±10ppm | ±10ppm | 10pF | 80 Ohm | -20°C ~ 70°C |
| 403C35D22M11840 | CTS 晶振 | 403 | 22.1184MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D28M37500 | CTS 晶振 | 403 | 28.375MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D28M63636 | CTS 晶振 | 403 | 28.63636MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35E12M00000 | CTS 晶振 | 403 | 12MHz | ±50ppm | ±30ppm | 20pF | 150 Ohm | -20°C ~ 70°C |
| 403C23E26M69000 | CTS 晶振 | 403 | 26.69MHz | ±30ppm | ±20ppm | 20pF | 60 Ohm | -20°C ~ 70°C |
| 403C35E16M00000 | CTS 晶振 | 403 | 16MHz | ±50ppm | ±30ppm | 20pF | 80 Ohm | -20°C ~ 70°C |
| 403I35D12M00000 | CTS 晶振 | 403 | 12MHz | ±50ppm | ±30ppm | 18pF | 150 Ohm | -40°C ~ 85°C |
| 403I35D16M00000 | CTS 晶振 | 403 | 16MHz | ±50ppm | ±30ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| 403I35D24M00000 | CTS 晶振 | 403 | 24MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
| 403I35D30M00000 | CTS 晶振 | 403 | 30MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
| 403I35E16M00000 | CTS 晶振 | 403 | 16MHz | ±50ppm | ±30ppm | 20pF | 80 Ohm | -40°C ~ 85°C |
| 403I35E26M00000 | CTS 晶振 | 403 | 26MHz | ±50ppm | ±30ppm | 20pF | 60 Ohm | -40°C ~ 85°C |
| 403C11E32M00000 | CTS 晶振 | 403 | 32MHz | ±10ppm | ±10ppm | 20pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D27M00000 | CTS 晶振 | 403 | 27MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D27M00000 | CTS 晶振 | 403 | 27MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D27M00000 | CTS 晶振 | 403 | 27MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35E26M00000 | CTS 晶振 | 403 | 26MHz | ±50ppm | ±30ppm | 20pF | 60 Ohm | -20°C ~ 70°C |
| 403C35E26M00000 | CTS 晶振 | 403 | 26MHz | ±50ppm | ±30ppm | 20pF | 60 Ohm | -20°C ~ 70°C |
| 403C35E26M00000 | CTS 晶振 | 403 | 26MHz | ±50ppm | ±30ppm | 20pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D48M00000 | CTS 晶振 | 403 | 48MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D48M00000 | CTS 晶振 | 403 | 48MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D48M00000 | CTS 晶振 | 403 | 48MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D20M00000 | CTS 晶振 | 403 | 20MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D20M00000 | CTS 晶振 | 403 | 20MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D20M00000 | CTS 晶振 | 403 | 20MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C11E16M00000 | CTS 晶振 | 403 | 16MHz | ±10ppm | ±10ppm | 20pF | 80 Ohm | -20°C ~ 70°C |
| 403C11E16M00000 | CTS 晶振 | 403 | 16MHz | ±10ppm | ±10ppm | 20pF | 80 Ohm | -20°C ~ 70°C |
| 403C11E16M00000 | CTS 晶振 | 403 | 16MHz | ±10ppm | ±10ppm | 20pF | 80 Ohm | -20°C ~ 70°C |
| 403C11A40M00000 | CTS 晶振 | 403 | 40MHz | ±10ppm | ±10ppm | 10pF | 60 Ohm | -20°C ~ 70°C |
| 403C11A40M00000 | CTS 晶振 | 403 | 40MHz | ±10ppm | ±10ppm | 10pF | 60 Ohm | -20°C ~ 70°C |
| 403C11A40M00000 | CTS 晶振 | 403 | 40MHz | ±10ppm | ±10ppm | 10pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D30M00000 | CTS 晶振 | 403 | 30MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D30M00000 | CTS 晶振 | 403 | 30MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C35D30M00000 | CTS 晶振 | 403 | 30MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 403C11A20M00000 | CTS 晶振 | 403 | 20MHz | ±10ppm | ±10ppm | 10pF | 60 Ohm | -20°C ~ 70°C |
| 403C11A20M00000 | CTS 晶振 | 403 | 20MHz | ±10ppm | ±10ppm | 10pF | 60 Ohm | -20°C ~ 70°C |
| 403C11A20M00000 | CTS 晶振 | 403 | 20MHz | ±10ppm | ±10ppm | 10pF | 60 Ohm | -20°C ~ 70°C |
| 403I35D27M00000 | CTS 晶振 | 403 | 27MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
| 403I35D27M00000 | CTS 晶振 | 403 | 27MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
| 403I35D27M00000 | CTS 晶振 | 403 | 27MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
| 403I35D18M43200 | CTS 晶振 | 403 | 18.432MHz | ±50ppm | ±30ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| 403I35D18M43200 | CTS 晶振 | 403 | 18.432MHz | ±50ppm | ±30ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| 403I35D18M43200 | CTS 晶振 | 403 | 18.432MHz | ±50ppm | ±30ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| 403I35D20M00000 | CTS 晶振 | 403 | 20MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
| 403I35D20M00000 | CTS 晶振 | 403 | 20MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
| 403I35D20M00000 | CTS 晶振 | 403 | 20MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
403C11A32M00000-3225mm-10ppm-32M-10pf 規格書與內部識別碼
