當前位置：首頁 » 貼片晶振 » CTS晶振 » 407F35E036M0000~美國CTS晶振~7050mm~36MHz

prevnext

407F35E036M0000~美國CTS晶振~7050mm~36MHz

頻率：36MHz

尺寸：7.0mm x 5.0mm

407F35E036M0000~美國CTS晶振~7050mm~36MHz,407石英貼片晶振,407F35E036M0000晶振,美國CTS晶振,7050mm晶振,頻率36MHz,無源晶振,工作溫度-20~70°C,負載20pf,無線通訊設備晶振,寬帶接入晶振,WIFI晶振,測試和測量儀器晶振,手持式設備晶振,計算機外圍設備晶振.

訂購熱線：0755-27837162

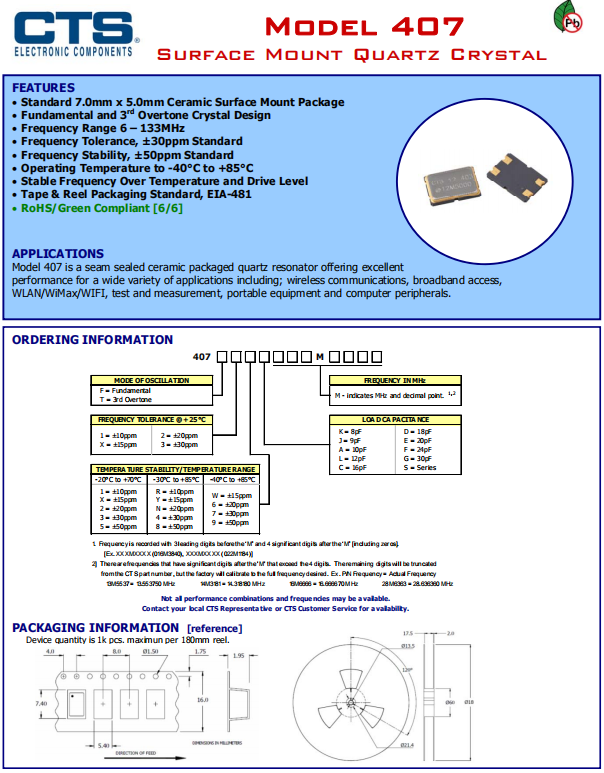

407F35E036M0000~美國CTS晶振~7050mm~36MHz 特征

1.標準7.0mm x 5.0mm陶瓷表面貼裝封裝基本晶體設計

2.頻率范圍6 - 133MHz 頻率公差±30ppm標準頻率穩定性±50ppm標準工作溫度-40℃~ +85℃

3.穩定的頻率過溫和驅動電平膠帶和卷軸包裝標準, EIA-481 符合RoHS/綠色標準

4.407型是一種接縫密封陶瓷封裝石英諧振器,具有優異的性能,性能廣泛的應用,包括;無線通信、寬帶接入、WLAN/WiMax/WIFI，測試和測量，便攜式設備和計算機外圍設備.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

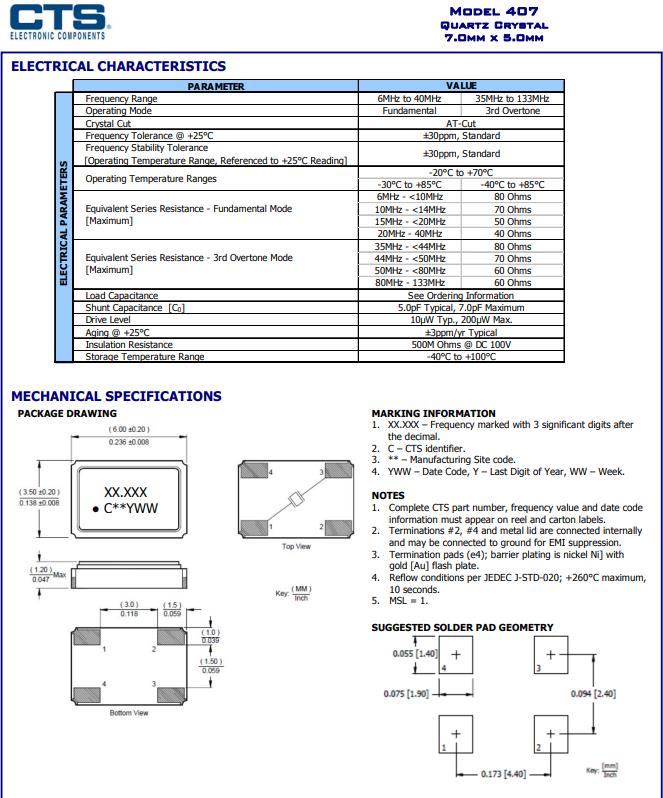

407F35E036M0000~美國CTS晶振~7050mm~36MHz 參數

項目			數值
頻率			36MHz
操作模式			Fundamental
晶體切割			AT-Cut
工作溫度			-20°C to +70°C
保存溫度			-40°C to +100°C
頻率公差 @ +25°C			± 30PPM
工作溫度范圍內的頻率穩定性 ( ref. to +25°C)			± 50PPM
等效串聯電阻(R1)			40 Ω
并聯電容 (C0)			5.0pF Typical, 7.0pF Maximum
負載電容 (CL)			20 pF
激勵功率			200 μW Max
老化 @ +25°C			±3ppm/yr Typical
絕緣電阻			500M Ohms @ DC 100V

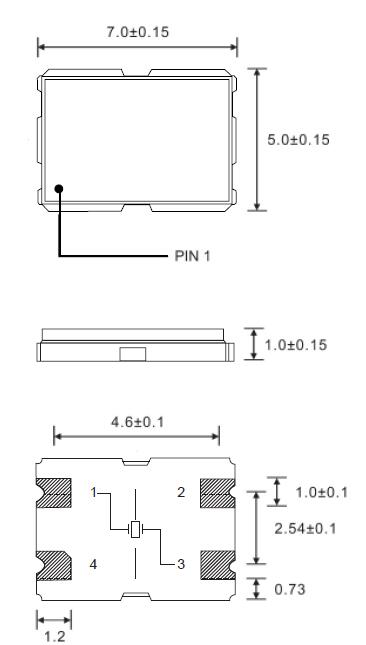

407F35E036M0000~美國CTS晶振~7050mm~36MHz 尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	ESR電阻	工作溫度
407F35E022M1184	CTS 晶振	407	22.1184MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E029M4912	CTS 晶振	407	29.4912MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E016M3840	CTS 晶振	407	16.384MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E009M6000	CTS 晶振	407	9.6MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F39E008M0000	CTS 晶振	407	8MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407T35E050M0000	CTS 晶振	407	50MHz	±50ppm	±30ppm	20pF	100 Ohm	-20°C ~ 70°C
407F35E036M0000	CTS 晶振	407	36MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E012M5000	CTS 晶振	407	12.5MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E016M6700	CTS 晶振	407	16.67MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35D007M3728	CTS晶振	407	7.3728MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
407F35D008M0000	CTS晶振	407	8MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D009M6000	CTS晶振	407	9.6MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D010M0000	CTS晶振	407	10MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D011M0592	CTS晶振	407	11.0592MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D012M0000	CTS晶振	407	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D012M5000	CTS晶振	407	12.5MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D014M3181	CTS晶振	407	14.31818MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D014M7456	CTS晶振	407	14.7456MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D016M0000	CTS晶振	407	16MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D016M3840	CTS晶振	407	16.384MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D016M6700	CTS晶振	407	16.67MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D016M9344	CTS晶振	407	16.9344MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D018M4320	CTS晶振	407	18.432MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D019M6800	CTS晶振	407	19.68MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D020M0000	CTS晶振	407	20MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D022M1184	CTS晶振	407	22.1184MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D024M0000	CTS晶振	407	24MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D024M5760	CTS晶振	407	24.576MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D025M0000	CTS晶振	407	25MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D027M0000	CTS晶振	407	27MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D029M4912	CTS晶振	407	29.4912MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D032M0000	CTS晶振	407	32MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D036M0000	CTS晶振	407	36MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35E007M3728	CTS晶振	407	7.3728MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
407F35E011M0592	CTS晶振	407	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E014M3181	CTS晶振	407	14.31818MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E016M9344	CTS晶振	407	16.9344MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E018M4320	CTS晶振	407	18.432MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E019M6800	CTS晶振	407	19.68MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E020M0000	CTS晶振	407	20MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E024M0000	CTS晶振	407	24MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E024M5760	CTS晶振	407	24.576MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E027M0000	CTS晶振	407	27MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E032M0000	CTS晶振	407	32MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F39D007M3728	CTS晶振	407	7.3728MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
407F39D008M0000	CTS晶振	407	8MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D009M6000	CTS晶振	407	9.6MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D010M0000	CTS晶振	407	10MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D011M0592	CTS晶振	407	11.0592MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D012M0000	CTS晶振	407	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D012M5000	CTS晶振	407	12.5MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D014M3181	CTS晶振	407	14.31818MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D014M7456	CTS晶振	407	14.7456MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D016M0000	CTS晶振	407	16MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D016M3840	CTS晶振	407	16.384MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D016M6700	CTS晶振	407	16.67MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D016M9344	CTS晶振	407	16.9344MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D018M4320	CTS晶振	407	18.432MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D019M6800	CTS晶振	407	19.68MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D020M0000	CTS晶振	407	20MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D022M1184	CTS晶振	407	22.1184MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D024M0000	CTS晶振	407	24MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D024M5760	CTS晶振	407	24.576MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D025M0000	CTS晶振	407	25MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D027M0000	CTS晶振	407	27MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D029M4912	CTS晶振	407	29.4912MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D032M0000	CTS晶振	407	32MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D036M0000	CTS晶振	407	36MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39E007M3728	CTS晶振	407	7.3728MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
407F39E009M6000	CTS晶振	407	9.6MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E010M0000	CTS晶振	407	10MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E011M0592	CTS晶振	407	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E012M0000	CTS晶振	407	12MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E012M5000	CTS晶振	407	12.5MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E014M3181	CTS晶振	407	14.31818MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E014M7456	CTS晶振	407	14.7456MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E016M0000	CTS晶振	407	16MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E016M3840	CTS晶振	407	16.384MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E016M6700	CTS晶振	407	16.67MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E016M9344	CTS晶振	407	16.9344MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E018M4320	CTS晶振	407	18.432MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E019M6800	CTS晶振	407	19.68MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E020M0000	CTS晶振	407	20MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E022M1184	CTS晶振	407	22.1184MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E024M0000	CTS晶振	407	24MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E024M5760	CTS晶振	407	24.576MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E025M0000	CTS晶振	407	25MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E027M0000	CTS晶振	407	27MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E029M4912	CTS晶振	407	29.4912MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E032M0000	CTS晶振	407	32MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E036M0000	CTS晶振	407	36MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F35E008M0000	CTS晶振	407	8MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E010M0000	CTS晶振	407	10MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E012M0000	CTS晶振	407	12MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E014M7456	CTS晶振	407	14.7456MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E016M0000	CTS晶振	407	16MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E025M0000	CTS晶振	407	25MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F37D008M0000	CTS晶振	407	8MHz	±30ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F35E044M7360	CTS晶振	407	44.736MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E044M7360	CTS晶振	407	44.736MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E044M7360	CTS晶振	407	44.736MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35D044M7360	CTS晶振	407	44.736MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407T35D050M0000	CTS晶振	407	50MHz	±50ppm	±30ppm	18pF	100 Ohm	-20°C ~ 70°C
407F39D044M7360	CTS晶振	407	44.736MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39E044M7360	CTS晶振	407	44.736MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407T39D050M0000	CTS晶振	407	50MHz	±50ppm	±30ppm	18pF	100 Ohm	-40°C ~ 85°C
407T39E050M0000	CTS晶振	407	50MHz	±50ppm	±30ppm	20pF	100 Ohm	-40°C ~ 85°C
