當前位置：首頁 » 貼片晶振 » CTS晶振 » 425F35B027M0000-13pF-2520晶振 -6G無線通信晶振

prevnext

425F35B027M0000-13pF-2520晶振 -6G無線通信晶振

頻率：27MHz

尺寸：2.5mm x 2.0mm

425F35B027M0000-13pF-2520晶振 -6G無線通信晶振,美國CTS進口晶振,425無源晶振,425F35B027M0000晶振,頻率27MHz,負載13pF,頻率穩定性30ppm,工作溫度-20~70°C,四腳貼片晶振,超小型晶振,2520晶振,6G無線通信晶振,工業物聯網應用晶振,微控制器晶振,計算機外圍設備晶振.

訂購熱線：0755-27837162

425F35B027M0000-13pF-2520晶振 -6G無線通信晶振,美國CTS進口晶振,425無源晶振,425F35B027M0000晶振,頻率27MHz,負載13pF,頻率穩定性30ppm,工作溫度-20~70°C,四腳貼片晶振,超小型晶振,2520晶振,6G無線通信晶振,工業物聯網應用晶振,微控制器晶振,計算機外圍設備晶振.

425F35B027M0000-13pF-2520晶振 -6G無線通信晶振特征

•密封陶瓷表面貼裝封裝

•基本晶體設計

•頻率范圍12 - 80MHz

•頻率公差，±30ppm標準

•頻率穩定性，±30ppm標準

•工作溫度范圍-40℃~ +105℃

•磁帶和卷軸包裝，EIA-481

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

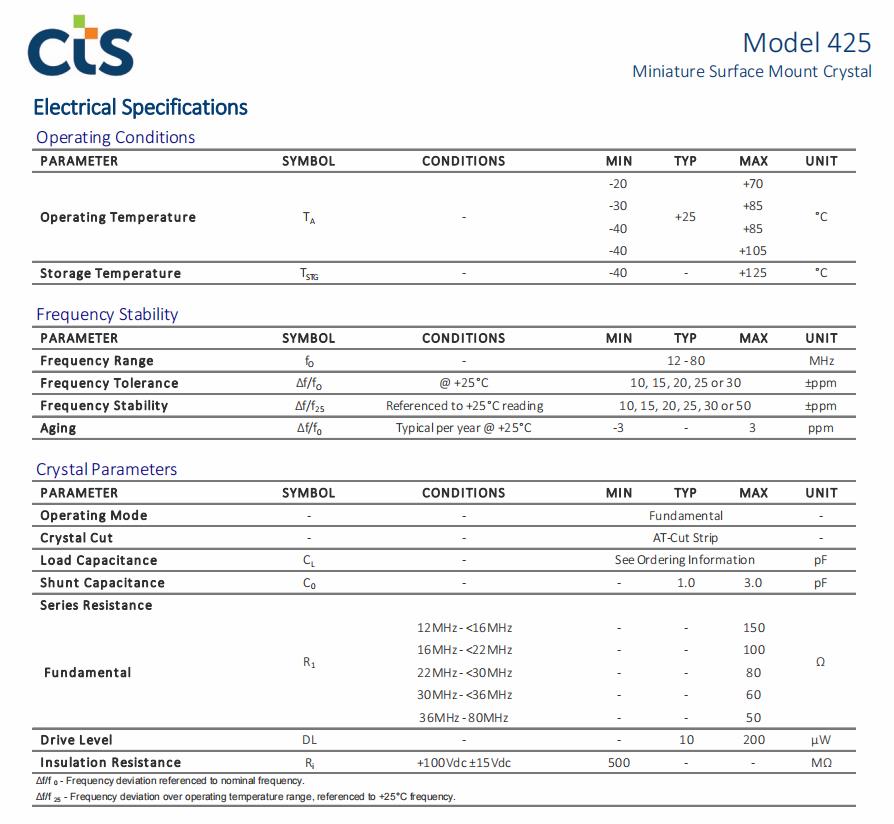

425F35B027M0000-13pF-2520晶振 -6G無線通信晶振參數

項目			數值
頻率			27MHz
操作模式			Fundamental
晶體切割			AT-Cut
工作溫度			-20°C to +70°C
保存溫度			-40°C to +125°C
頻率公差 @ +25°C			± 30PPM
工作溫度范圍內的頻率穩定性 ( ref. to +25°C)			± 50PPM
等效串聯電阻(R1)			80 Ω
并聯電容 (C0)			1.0pF Typical, 3.0pF Maximum
負載電容 (CL)			13pF
激勵功率			200 μW Max
老化 @ +25°C			±3ppm/yr Typical
絕緣電阻			500MΩ @ +100Vdc ±15Vdc

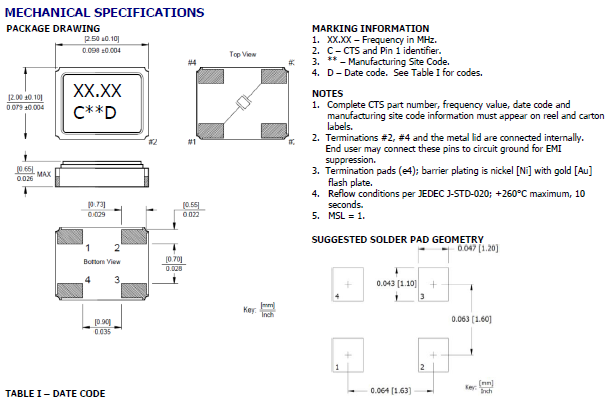

425F35B027M0000-13pF-2520晶振 -6G無線通信晶振尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	ESR電阻	工作溫度
425F22A024M5760	CTS 晶振	425	24.576MHz	±20ppm	±20ppm	10pF	80 Ohm	-20°C ~ 70°C
425F22A016M3676	CTS 晶振	425	16.3676MHz	±20ppm	±20ppm	10pF	100 Ohm	-20°C ~ 70°C
425F22A025M0000	CTS 晶振	425	25MHz	±20ppm	±20ppm	10pF	80 Ohm	-20°C ~ 70°C
425F22A027M0000	CTS 晶振	425	27MHz	±20ppm	±20ppm	10pF	80 Ohm	-20°C ~ 70°C
425F22A030M0000	CTS 晶振	425	30MHz	±20ppm	±20ppm	10pF	80 Ohm	-20°C ~ 70°C
425F22A048M0000	CTS 晶振	425	48MHz	±20ppm	±20ppm	10pF	60 Ohm	-20°C ~ 70°C
425F35E027M0000	CTS 晶振	425	27MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
425F35B020M0000	CTS 晶振	425	20MHz	±50ppm	±30ppm	13pF	80 Ohm	-20°C ~ 70°C
425F35B024M0000	CTS 晶振	425	24MHz	±50ppm	±30ppm	13pF	80 Ohm	-20°C ~ 70°C
425F35B025M0000	CTS 晶振	425	25MHz	±50ppm	±30ppm	13pF	80 Ohm	-20°C ~ 70°C
425F35B027M0000	CTS 晶振	425	27MHz	±50ppm	±30ppm	13pF	80 Ohm	-20°C ~ 70°C
425F35B016M0000	CTS 晶振	425	16MHz	±50ppm	±30ppm	13pF	100 Ohm	-20°C ~ 70°C
425F22A024M0000	CTS 晶振	425	24MHz	±20ppm	±20ppm	10pF	80 Ohm	-20°C ~ 70°C
425F22A020M0000	CTS 晶振	425	20MHz	±20ppm	±20ppm	10pF	80 Ohm	-20°C ~ 70°C
425F35B040M0000	CTS晶振	425	40MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
425F35B026M0000	CTS晶振	425	26MHz	±50ppm	±30ppm	13pF	80 Ohm	-20°C ~ 70°C
425F35B038M4000	CTS晶振	425	38.4MHz	±50ppm	±30ppm	13pF	80 Ohm	-20°C ~ 70°C
425F35E016M0000	CTS晶振	425	16MHz	±50ppm	±30ppm	20pF	100 Ohm	-20°C ~ 70°C
425F35E020M0000	CTS晶振	425	20MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
425F35E024M0000	CTS晶振	425	24MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
425F35E025M0000	CTS晶振	425	25MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
425F35E030M0000	CTS晶振	425	30MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
425F35E040M0000	CTS晶振	425	40MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
425F39B016M0000	CTS晶振	425	16MHz	±50ppm	±30ppm	13pF	100 Ohm	-40°C ~ 85°C
425F39B020M0000	CTS晶振	425	20MHz	±50ppm	±30ppm	13pF	80 Ohm	-40°C ~ 85°C
425F39B024M0000	CTS晶振	425	24MHz	±50ppm	±30ppm	13pF	80 Ohm	-40°C ~ 85°C
425F39B025M0000	CTS晶振	425	25MHz	±50ppm	±30ppm	13pF	80 Ohm	-40°C ~ 85°C
425F39B027M0000	CTS晶振	425	27MHz	±50ppm	±30ppm	13pF	80 Ohm	-40°C ~ 85°C
425F39B030M0000	CTS晶振	425	30MHz	±50ppm	±30ppm	13pF	80 Ohm	-40°C ~ 85°C
425F39B040M0000	CTS晶振	425	40MHz	±50ppm	±30ppm	13pF	60 Ohm	-40°C ~ 85°C
425F39E016M0000	CTS晶振	425	16MHz	±50ppm	±30ppm	20pF	100 Ohm	-40°C ~ 85°C
425F39E020M0000	CTS晶振	425	20MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
425F39E024M0000	CTS晶振	425	24MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
425F39E025M0000	CTS晶振	425	25MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
425F39E027M0000	CTS晶振	425	27MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
425F39E030M0000	CTS晶振	425	30MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
425F39E040M0000	CTS晶振	425	40MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
425F35B026\M0000	CTS晶振	425	26MHz	±50ppm	±30ppm	13pF	80 Ohm	-20°C ~ 70°C
425F35E026M0000	CTS晶振	425	26MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
425F22A016M0000	CTS晶振	425	16MHz	±20ppm	±20ppm	10pF	100 Ohm	-20°C ~ 70°C
425F22A016M3840	CTS晶振	425	16.384MHz	±20ppm	±20ppm	10pF	100 Ohm	-20°C ~ 70°C
425F22A018M4320	CTS晶振	425	18.432MHz	±20ppm	±20ppm	10pF	100 Ohm	-20°C ~ 70°C
425F22A019M2000	CTS晶振	425	19.2MHz	±20ppm	±20ppm	10pF	100 Ohm	-20°C ~ 70°C
425F22A022M1184	CTS晶振	425	22.1184MHz	±20ppm	±20ppm	10pF	80 Ohm	-20°C ~ 70°C
425F22A040M0000	CTS晶振	425	40MHz	±20ppm	±20ppm	10pF	60 Ohm	-20°C ~ 70°C
425F37B016M0000	CTS晶振	425	16MHz	±30ppm	±30ppm	13pF	100 Ohm	-40°C ~ 85°C
425F27C028M6360	CTS晶振	425	28.636MHz	±30ppm	±20ppm	16pF	80 Ohm	-40°C ~ 85°C
425F11A016M0000	CTS晶振	425	16MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
425F11A018M4320	CTS晶振	425	18.432MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
425F11A019M2000	CTS晶振	425	19.2MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
425F11A019M6608	CTS晶振	425	19.6608MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
425F11A020M0000	CTS晶振	425	20MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
425F11A024M0000	CTS晶振	425	24MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
425F11A024M5760	CTS晶振	425	24.576MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
425F11A025M0000	CTS晶振	425	25MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
425F11A026M0000	CTS晶振	425	26MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
425F11A027M0000	CTS晶振	425	27MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
425F11A028M6363	CTS晶振	425	28.63636MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
425F11A030M0000	CTS晶振	425	30MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
425F11A032M0000	CTS晶振	425	32MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
425F11A036M0000	CTS晶振	425	36MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
425F11A040M0000	CTS晶振	425	40MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
425F11K016M0000	CTS晶振	425	16MHz	±10ppm	±10ppm	8pF	100 Ohm	-20°C ~ 70°C
425F11K018M4320	CTS晶振	425	18.432MHz	±10ppm	±10ppm	8pF	100 Ohm	-20°C ~ 70°C
425F11K019M2000	CTS晶振	425	19.2MHz	±10ppm	±10ppm	8pF	100 Ohm	-20°C ~ 70°C
425F11K019M6608	CTS晶振	425	19.6608MHz	±10ppm	±10ppm	8pF	100 Ohm	-20°C ~ 70°C
425F11K020M0000	CTS晶振	425	20MHz	±10ppm	±10ppm	8pF	80 Ohm	-20°C ~ 70°C
425F11K024M0000	CTS晶振	425	24MHz	±10ppm	±10ppm	8pF	80 Ohm	-20°C ~ 70°C
425F11K024M5760	CTS晶振	425	24.576MHz	±10ppm	±10ppm	8pF	80 Ohm	-20°C ~ 70°C
425F11K025M0000	CTS晶振	425	25MHz	±10ppm	±10ppm	8pF	80 Ohm	-20°C ~ 70°C
425F11K026M0000	CTS晶振	425	26MHz	±10ppm	±10ppm	8pF	80 Ohm	-20°C ~ 70°C
425F11K027M0000	CTS晶振	425	27MHz	±10ppm	±10ppm	8pF	80 Ohm	-20°C ~ 70°C
425F11K028M6363	CTS晶振	425	28.63636MHz	±10ppm	±10ppm	8pF	80 Ohm	-20°C ~ 70°C
425F11K030M0000	CTS晶振	425	30MHz	±10ppm	±10ppm	8pF	80 Ohm	-20°C ~ 70°C
425F11K032M0000	CTS晶振	425	32MHz	±10ppm	±10ppm	8pF	80 Ohm	-20°C ~ 70°C
425F11K036M0000	CTS晶振	425	36MHz	±10ppm	±10ppm	8pF	80 Ohm	-20°C ~ 70°C
425F11K040M0000	CTS晶振	425	40MHz	±10ppm	±10ppm	8pF	60 Ohm	-20°C ~ 70°C
425F11A048M0000	CTS晶振	425	48MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
425F11K048M0000	CTS晶振	425	48MHz	±10ppm	±10ppm	8pF	60 Ohm	-20°C ~ 70°C
425F16A032M0000	CTS晶振	425	32MHz	±20ppm	±10ppm	10pF	80 Ohm	-40°C ~ 85°C
