美國思佳訊晶振,515CAA000256AAGR晶振,6G路由器晶振
頻率：256MHZ

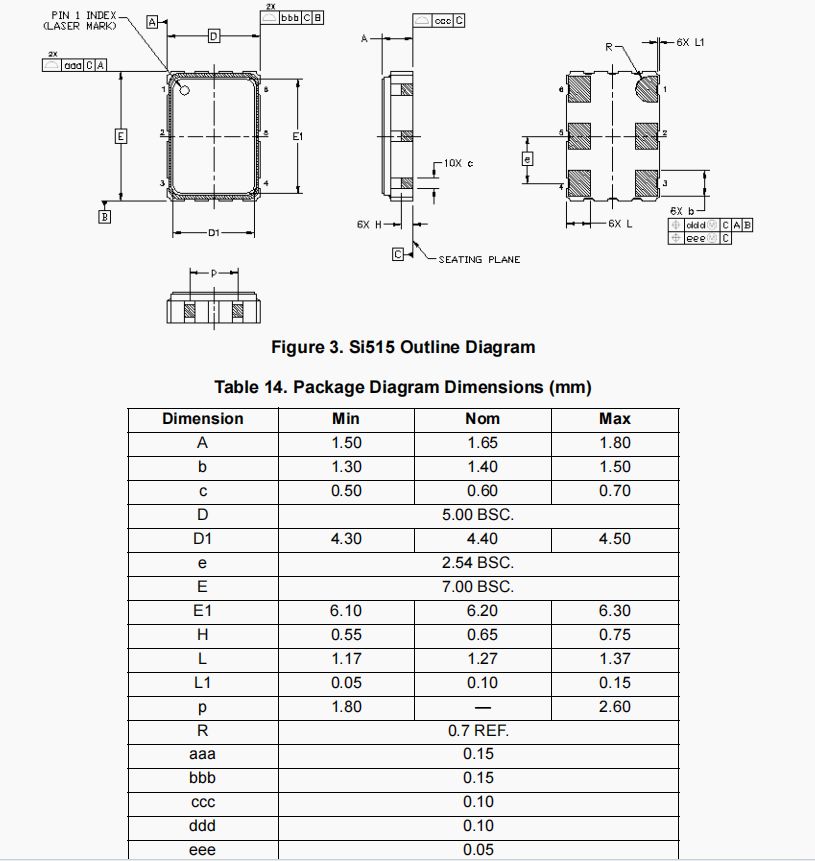

尺寸：7050mm

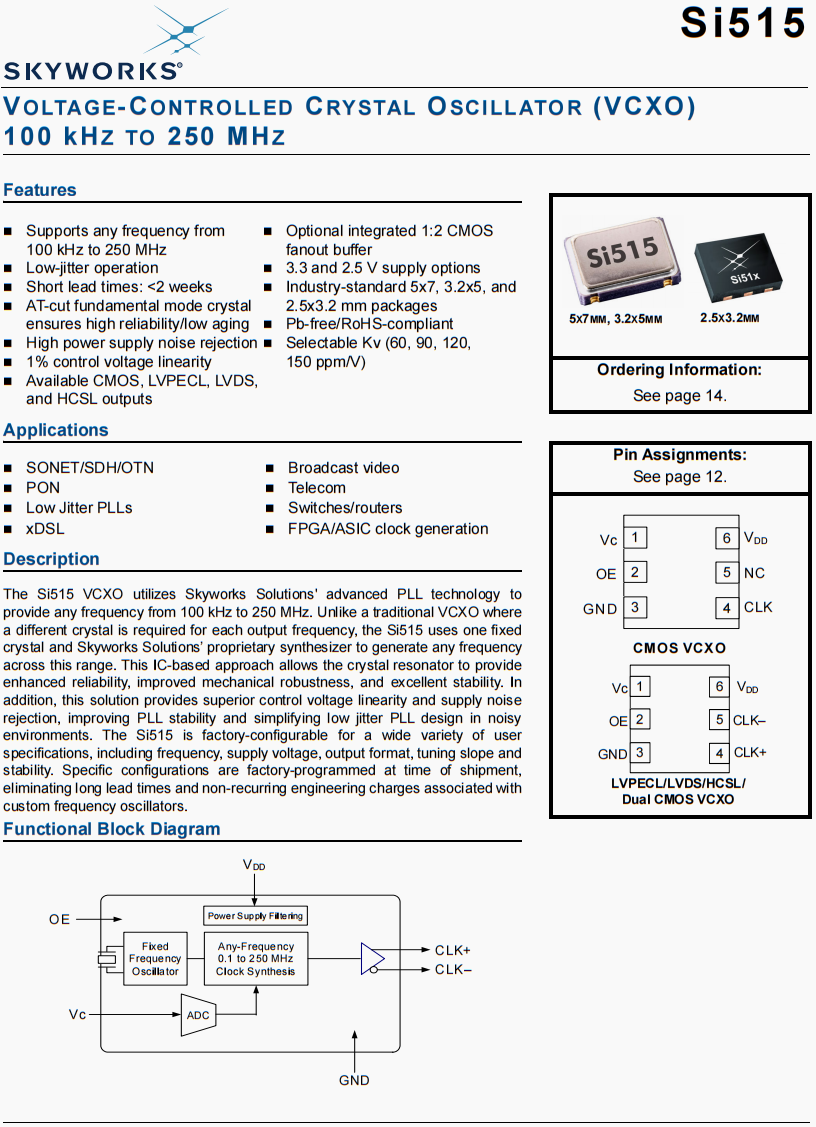

美國思佳訊晶振,515CAA000256AAGR晶振,6G路由器晶振，美國Skyworks晶振公司，歐美晶振，有源晶振，壓控晶振，石英貼片晶振，VCXO晶振，6G交換機晶振，六腳晶振，貼片晶振，石英晶振，7050晶振，支持從100 kHz到250 MHz的任何頻率低抖動工作前置時間短:<2周AT-cut基模晶體確保高可靠性/低老化高電源噪聲抑制1%控制電壓線性度CMOS, LVPECL, LVDS和HCSL輸出可選集成1:2 CMOS風扇輸出緩沖3.3和2.5 V電源選項工業標準5x7, 3.2x5和2.5x3.2 mm封裝無鉛/符合rohs可選Kv (60, 90, 120,150 ppm/V)
美國思佳訊晶振,515CAA000256AAGR晶振,6G路由器晶振，Skyworks晶振公司，歐美晶振，美國晶振，壓控晶振，有源晶振，壓控晶振，SMD晶振，石英貼片晶振，VCXO晶振，6G交換機晶振，六腳晶振，貼片晶振，石英晶振，7050晶振，支持從100 kHz到250 MHz的任何頻率低抖動工作前置時間短:<2周AT-cut基模晶體確保高可靠性/低老化高電源噪聲抑制1%控制電壓線性度CMOS, LVPECL, LVDS和HCSL輸出可選集成1:2 CMOS風扇輸出緩沖3.3和2.5 V電源選項工業標準5x7, 3.2x5和2.5x3.2 mm封裝無鉛/符合rohs可選Kv (60, 90, 120,150 ppm/V)
美國思佳訊晶振,515CAA000256AAGR晶振,6G路由器晶振
| 參數 | 標志 | 使用環境 | 最小值 | 典型的 | 最大值 | 單位 |
| 電源電壓 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V |
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||
| 供應電流 | IDD | CMOS, 100 MHz,single-ended | — | 24 | 29 | mA |
| LVDS(output enabled) | — | 22 | 26 | mA | ||
| LVPECL(output enabled) | — | 42 | 46 | mA | ||
| HCSL(output enabled) | — | 44 | 47 | mA | ||
| Tristate (output disabled) | — | — | 22 | mA | ||
| 工作溫度 | TA | –40 | — | 85 | oC | |
| 標稱頻率 | FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz |
| FO | LVDS/LVPECL/HCSL | 0.1 | — | 250 | MHz | |
| 溫度穩定度 | ST | TA = –40 to +85 oC | –20 | — | +20 | ppm |
| 老化 | A | Frequency drift over 10 year life | — | — | ±8.5 | ppm |
| 最小絕對拉力范圍 | APR | Ordering option | ±30, ±50,±80, ±100 | ppm | ||
| 啟動時間 | TSU | Minimum VDD to output fre- quency (FO) within specification | — | — | 10 | ms |
| 禁用時間 | TD | FO ? 10 MHz | — | — | 5 | µs |
| FO < 10 MHz | 40 | µs | ||||
| 啟用時間 | TE | FO ? 10 MHz | — | — | 20 | µs |
| FO < 10 MHz | 60 | µs | ||||
美國思佳訊晶振,515CAA000256AAGR晶振,6G路由器晶振
| SKYWORKS原廠編碼 | 生產商 | 型號 | 頻率 | 輸出 | 電源電壓 | 頻率穩定度 |
| 515CAAM100000AAGR | Skyworks晶振 | Si515 | 100 kHz | CMOS | 3.3V | ±20ppm |
| 515CAB32M7680AAGR | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V | ±20ppm |
| 515CBA4M09600AAGR | Skyworks晶振 | Si515 | 4.096 MHz | CMOS | 3.3V | ±20ppm |
| 515CDA8M00000AAGR | Skyworks晶振 | Si515 | 8 MHz | CMOS | 3.3V | ±20ppm |
| 515GCA10M0000AAGR | Skyworks晶振 | Si515 | 10 MHz | CMOS | 2.5V | ±20ppm |
| 515CAA000282CAGR | Skyworks晶振 | Si515 | 14.31818 MHz | CMOS | 3.3V | ±20ppm |
| 515CAAM100000AAG | Skyworks晶振 | Si515 | 100 kHz | CMOS | 3.3V | ±20ppm |
| 515CAB32M7680AAG | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V | ±20ppm |
| 515CBA4M09600AAG | Skyworks晶振 | Si515 | 4.096 MHz | CMOS | 3.3V | ±20ppm |
| 515CDA8M00000AAG | Skyworks晶振 | Si515 | 8 MHz | CMOS | 3.3V | ±20ppm |
| 515GCA10M0000AAG | Skyworks晶振 | Si515 | 10 MHz | CMOS | 2.5V | ±20ppm |
| 515CAA000256AAGR | Skyworks晶振 | Si515 | 256 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA10M0000AAGR | Skyworks晶振 | Si515 | 10 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA10M2400AAGR | Skyworks晶振 | Si515 | 10.24 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA125M000AAGR | Skyworks晶振 | Si515 | 125 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA24M5760AAGR | Skyworks晶振 | Si515 | 24.576 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA25M0000AAGR | Skyworks晶振 | Si515 | 25 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA27M0000AAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA30M0000AAGR | Skyworks晶振 | Si515 | 30 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA32M7680AAGR | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA40M0000AAGR | Skyworks晶振 | Si515 | 40 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA44M7360AAGR | Skyworks晶振 | Si515 | 44.736 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA70M6560AAGR | Skyworks晶振 | Si515 | 70.656 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA74M2500AAGR | Skyworks晶振 | Si515 | 74.25 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA7M37472AAGR | Skyworks晶振 | Si515 | 7.37472 MHz | CMOS | 3.3V | ±20ppm |
| 515CAA7M50000AAGR | Skyworks晶振 | Si515 | 7.5 MHz | CMOS | 3.3V | ±20ppm |
| 515CAAM928000AAGR | Skyworks晶振 | Si515 | 928 kHz | CMOS | 3.3V | ±20ppm |
| 515CAB16M3840AAGR | Skyworks晶振 | Si515 | 16.384 MHz | CMOS | 3.3V | ±20ppm |
| 515CAB49M1520AAGR | Skyworks晶振 | Si515 | 49.152 MHz | CMOS | 3.3V | ±20ppm |
| 515CAB98M0000AAGR | Skyworks晶振 | Si515 | 98 MHz | CMOS | 3.3V | ±20ppm |
| 515CBA23M1481AAGR | Skyworks晶振 | Si515 | 23.1481 MHz | CMOS | 3.3V | ±20ppm |
| 515CBA24M5760AAGR | Skyworks晶振 | Si515 | 24.576 MHz | CMOS | 3.3V | ±20ppm |
| 515CBA28M9350AAGR | Skyworks晶振 | Si515 | 28.935 MHz | CMOS | 3.3V | ±20ppm |
| 515CBA2M04800AAGR | Skyworks晶振 | Si515 | 2.048 MHz | CMOS | 3.3V | ±20ppm |
| 515CBA34M8160AAGR | Skyworks晶振 | Si515 | 34.816 MHz | CMOS | 3.3V | ±20ppm |
| 515CBA38M8800AAGR | Skyworks晶振 | Si515 | 38.88 MHz | CMOS | 3.3V | ±20ppm |
| 515CBA3M64000AAGR | Skyworks晶振 | Si515 | 3.64 MHz | CMOS | 3.3V | ±20ppm |
| 515CBA80M0000AAGR | Skyworks晶振 | Si515 | 80 MHz | CMOS | 3.3V | ±20ppm |
| 515CBAM240000AAGR | Skyworks晶振 | Si515 | 24 kHz | CMOS | 3.3V | ±20ppm |
| 515CBAM928571AAGR | Skyworks晶振 | Si515 | 92.8571 MHz | CMOS | 3.3V | ±20ppm |
| 515CBBM100000AAGR | Skyworks晶振 | Si515 | 100 kHz | CMOS | 3.3V | ±20ppm |
| 515CCA100M000AAGR | Skyworks晶振 | Si515 | 100 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA10M0000AAGR | Skyworks晶振 | Si515 | 10 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA122M880AAGR | Skyworks晶振 | Si515 | 122.88 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA125M000AAGR | Skyworks晶振 | Si515 | 125 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA12M8000AAGR | Skyworks晶振 | Si515 | 12.8 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA15M3600AAGR | Skyworks晶振 | Si515 | 15.36 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA16M3680AAGR | Skyworks晶振 | Si515 | 16.368 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA19M4400AAGR | Skyworks晶振 | Si515 | 19.44 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA25M0000AAGR | Skyworks晶振 | Si515 | 25 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA27M0000AAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA30M0000AAGR | Skyworks晶振 | Si515 | 30 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA30M7200AAGR | Skyworks晶振 | Si515 | 30.72 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA32M7680AAGR | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA35M0000AAGR | Skyworks晶振 | Si515 | 35 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA40M0000AAGR | Skyworks晶振 | Si515 | 40 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA49M1520AAGR | Skyworks晶振 | Si515 | 49.152 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA56M3200AAGR | Skyworks晶振 | Si515 | 56.32 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA5M00000AAGR | Skyworks晶振 | Si515 | 5 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA61M4400AAGR | Skyworks晶振 | Si515 | 61.44 MHz | CMOS | 3.3V | ±20ppm |
| 515CCA70M6560AAGR | Skyworks晶振 | Si515 | 70.656 MHz | CMOS | 3.3V | ±20ppm |
| 515CCAM524288AAGR | Skyworks晶振 | Si515 | 52.4288 MHz | CMOS | 3.3V | ±20ppm |
| 515CCB000314AAGR | Skyworks晶振 | Si515 | 314 MHz | CMOS | 3.3V | ±20ppm |
| 515CCB19M4400AAGR | Skyworks晶振 | Si515 | 19.44 MHz | CMOS | 3.3V | ±20ppm |
| 515CCB1M95840AAGR | Skyworks晶振 | Si515 | 1.9584 MHz | CMOS | 3.3V | ±20ppm |
| 515CCB24M5760AAGR | Skyworks晶振 | Si515 | 24.576 MHz | CMOS | 3.3V | ±20ppm |
| 515CDA000256AAGR | Skyworks晶振 | Si515 | 256 MHz | CMOS | 3.3V | ±20ppm |
| 515CDA125M000AAGR | Skyworks晶振 | Si515 | 125 MHz | CMOS | 3.3V | ±20ppm |
| 515CDA22M5792AAGR | Skyworks晶振 | Si515 | 22.5792 MHz | CMOS | 3.3V | ±20ppm |
| 515CDA24M5760AAGR | Skyworks晶振 | Si515 | 24.576 MHz | CMOS | 3.3V | ±20ppm |
| 515CDA27M0000AAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V | ±20ppm |
| 515CDA40M0000AAGR | Skyworks晶振 | Si515 | 40 MHz | CMOS | 3.3V | ±20ppm |
| 515CDA43M1000AAGR | Skyworks晶振 | Si515 | 43.1 MHz | CMOS | 3.3V | ±20ppm |
| 515CDA45M0000AAGR | Skyworks晶振 | Si515 | 45 MHz | CMOS | 3.3V | ±20ppm |
| 515CDA5M00000AAGR | Skyworks晶振 | Si515 | 5 MHz | CMOS | 3.3V | ±20ppm |
