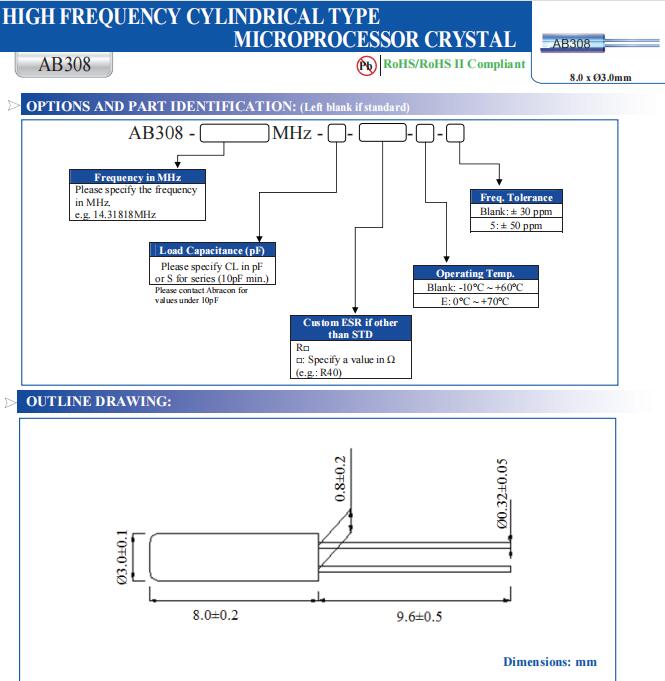

AB308-28.000MHZ,AB308圓柱插件晶振,28MHz,-10~60°C
頻率：28MHz
尺寸：8.0mm x 3.0mm
AB308-28.000MHZ,AB308圓柱插件晶振,28MHz,-10~60°C,AB308-28.000MHZ晶振,美國Abracon晶振,AB308圓柱插件晶振,頻率28MHz,工作溫度-10~60°C,微處理器時鐘晶振,消費電子產品晶振,測試設備晶振,計算機外圍設備晶振.
AB308-28.000MHZ,AB308圓柱插件晶振,28MHz,-10~60°C,AB308-28.000MHZ晶振,美國Abracon晶振,AB308圓柱插件晶振,頻率28MHz,工作溫度-10~60°C,微處理器時鐘晶振,消費電子產品晶振,測試設備晶振,計算機外圍設備晶振.
AB308-28.000MHZ,AB308圓柱插件晶振,28MHz,-10~60°C參數
工作溫度范圍內的頻率穩定性 ( ref. to
+25°C)
規格參數
MAX (除非有特殊說明)
頻率
28 MHz
操作模式
Fundamental or3rd Overtone
工作溫度
-10°C to +60°C
保存溫度
-55°C to +125°C
頻率公差
± 20PPM
± 100PPM
等效串聯電阻(R1)
40 Ω
并聯電容 (C0)
7.0 pF
負載電容 (CL)
18 pF
激勵功率
1000 μW Max
老化性
±5ppm
絕緣電阻
500M Ω @100Vdc±15V

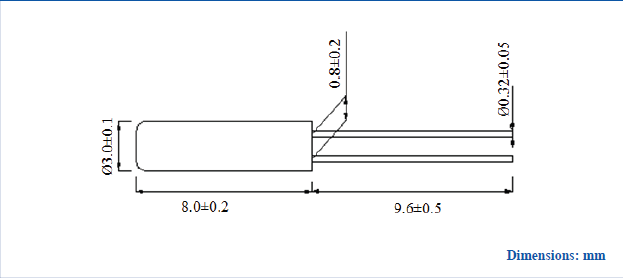

AB308-28.000MHZ,AB308圓柱插件晶振,28MHz,-10~60°C尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 | 工作溫度 |
| AB308-4.000MHZ | Abracon晶振 | AB308 | 4MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-10.000MHZ | Abracon晶振 | AB308 | 10MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.000MHZ | Abracon晶振 | AB308 | 12MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.288MHZ | Abracon晶振 | AB308 | 12.288MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.352MHZ | Abracon晶振 | AB308 | 12.352MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-14.31818MHZ | Abracon晶振 | AB308 | 14.31818MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-14.7456MHZ | Abracon晶振 | AB308 | 14.7456MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.000MHZ | Abracon晶振 | AB308 | 16MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.257MHZ | Abracon晶振 | AB308 | 16.257MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.667MHZ | Abracon晶振 | AB308 | 16.667MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-20.000MHZ | Abracon晶振 | AB308 | 20MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-4.9152MHZ | Abracon晶振 | AB308 | 4.9152MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-5.000MHZ | Abracon晶振 | AB308 | 5MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-6.000MHZ | Abracon晶振 | AB308 | 6MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-7.3728MHZ | Abracon晶振 | AB308 | 7.3728MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-8.000MHZ | Abracon晶振 | AB308 | 8MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-26.540MHZ | Abracon晶振 | AB308 | 26.54MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-28.000MHZ | Abracon晶振 | AB308 | 28MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-28.6363MHZ | Abracon晶振 | AB308 | 28.6363MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-29.4912MHZ | Abracon晶振 | AB308 | 29.4912MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-53.125MHZ | Abracon晶振 | AB308 | 53.125MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-8.000MHZ | Abracon晶振 | AB308 | 8MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-10.000MHZ | Abracon晶振 | AB308 | 10MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.000MHZ | Abracon晶振 | AB308 | 12MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.000MHZ | Abracon晶振 | AB308 | 16MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-20.000MHZ | Abracon晶振 | AB308 | 20MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-5.000MHZ | Abracon晶振 | AB308 | 5MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-6.000MHZ | Abracon晶振 | AB308 | 6MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-7.3728MHZ | Abracon晶振 | AB308 | 7.3728MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
+
