CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振

頻率：27MHZ

尺寸：13.2mm x 5mm

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振,CTS晶振,歐美進口晶振,ATSSMGL石英貼片晶振,GL270F23IDT晶振,無源晶振,頻率27MHz,負載18pF,頻率穩定性30ppm,工作溫度-40~85°C,高穩定性晶振,低成本晶振,6G網絡應用晶振,通訊設備晶振,數碼相機晶振,工業設備晶振.






訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

CTS

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振,CTS晶振,歐美進口晶振,ATSSMGL石英貼片晶振,GL270F23IDT晶振,無源晶振,頻率27MHz,負載18pF,頻率穩定性30ppm,工作溫度-40~85°C,高穩定性晶振,低成本晶振,6G網絡應用晶振,通訊設備晶振,數碼相機晶振,工業設備晶振.

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振特征

•外殼接地的第三根導線[HC-49/US-SM封裝類型]

•基本和第三泛音晶體

•穩定的頻率超過溫度和驅動電平

•頻率范圍3.2 - 64MHz

•頻率公差，從±10ppm到±30ppm的選項

•頻率穩定性，從±10ppm到±50ppm的選項

•工作溫度，-20°C至+70°C和-40°C至+85°C標準

•膠帶和卷軸包裝可用

•符合RoHS/綠色標準[6/6]

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振參數表

項目 數值
頻率 27MHz
操作模式 Fundamental
晶體切割 AT-Cut
工作溫度  -40°C to +85°C
保存溫度   -40°C to +85°C
頻率公差 @ +25°C ± 20PPM

 工作溫度范圍內的頻率穩定性 ( ref. to

+25°C)

± 30PPM
等效串聯電阻(R1) 30 Ω
  并聯電容 (C0) 7.0pF Maximum
負載電容 (CL) 18pF
激勵功率 1000 μW Max
老化 @ +25°C ±3ppm/yr Typical

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

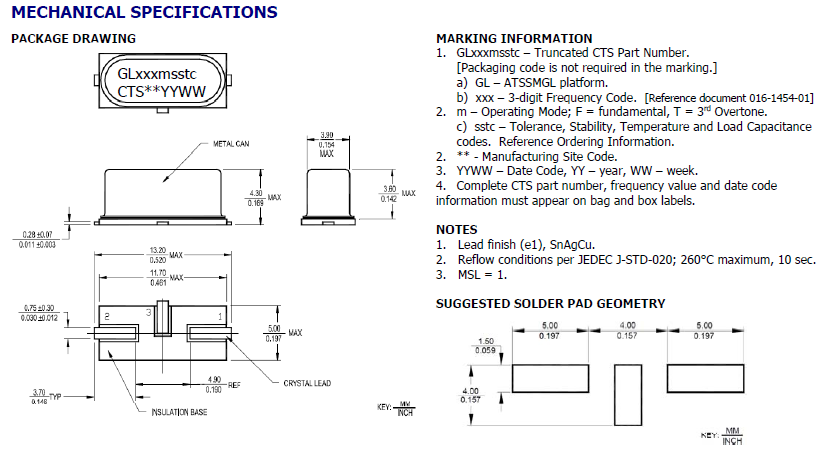

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G網絡應用晶振尺寸圖

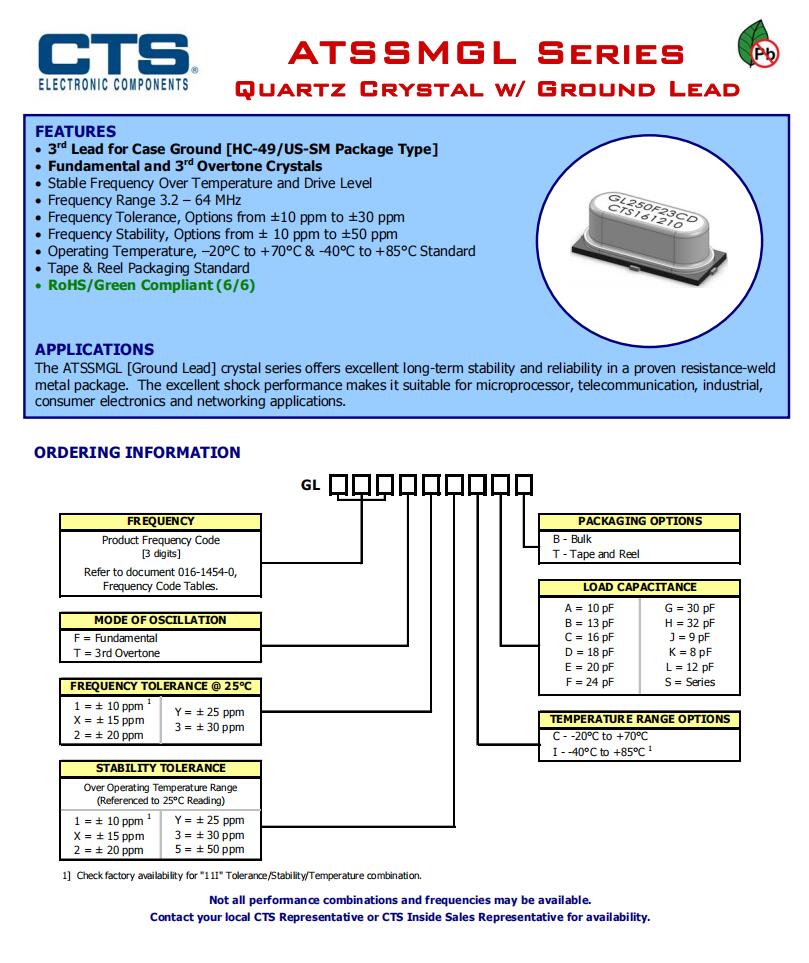

ATSSMGL 12.3-5

ATSSMGL

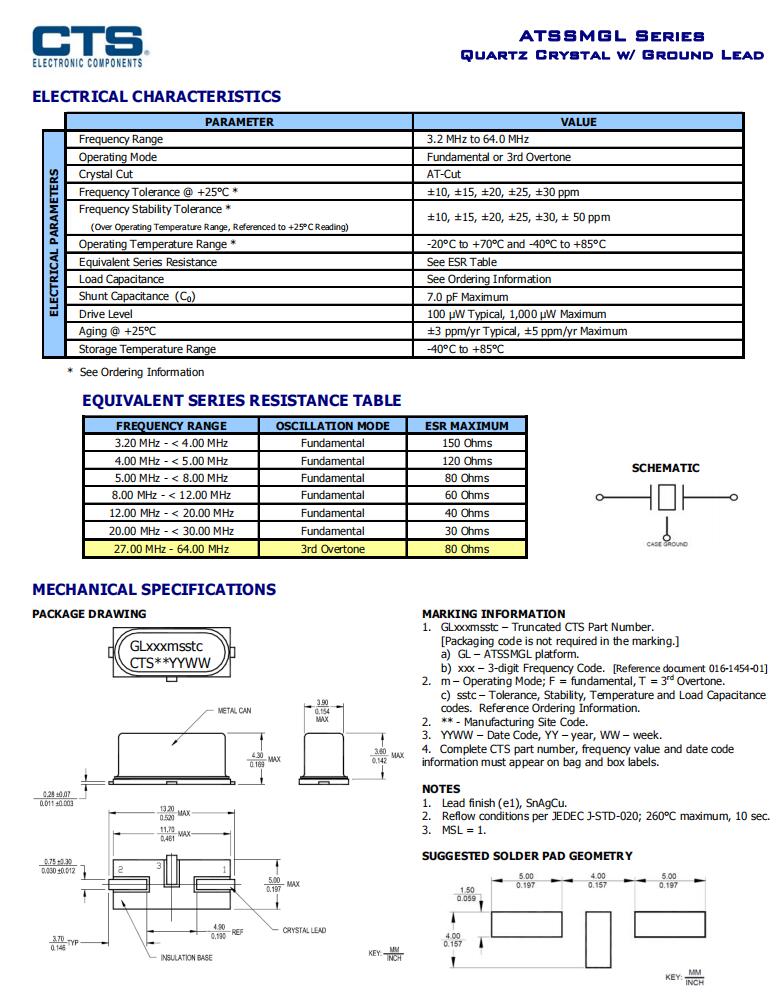

ATSSMGL-1

原廠編碼 生產廠家 型號 頻率 頻率穩定度 頻率偏差 負載電容 ESR電阻 工作溫度
GL240F23CDT CTS 晶振 ATSSMGL 24MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F23CET CTS 晶振 ATSSMGL 24MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F33CDT CTS 晶振 ATSSMGL 24MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F33CET CTS 晶振 ATSSMGL 24MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F35CDT CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F35CET CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F35IDT CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL240F35IET CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL24CF23CDT CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF23CET CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF33CDT CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF33CET CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF35CDT CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF35CET CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF35IDT CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL24CF35IET CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL250F23CDT CTS 晶振 ATSSMGL 25MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F23CET CTS 晶振 ATSSMGL 25MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F33CDT CTS 晶振 ATSSMGL 25MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F33CET CTS 晶振 ATSSMGL 25MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F35CDT CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F35CET CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F35IDT CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL250F35IET CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL270F23CDT CTS 晶振 ATSSMGL 27MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F23CET CTS 晶振 ATSSMGL 27MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F33CDT CTS 晶振 ATSSMGL 27MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F33CET CTS 晶振 ATSSMGL 27MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F35CDT CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F35CET CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F35IDT CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL270F35IET CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL042F23CDT CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F23CET CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F33CDT CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F33CET CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F35CDT CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F35CET CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F35IDT CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL042F35IET CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL044F23CDT CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F23CET CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F33CDT CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F33CET CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F35CDT CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F35CET CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F35IDT CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL044F35IET CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL045F23CDT CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F23CET CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F33CDT CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F33CET CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F35CDT CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F35CET CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F35IDT CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL045F35IET CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL049F23CDT CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F23CET CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F33CDT CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F33CET CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F35CDT CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F35CET CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F35IDT CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL049F35IET CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL050F23CDT CTS 晶振 ATSSMGL 5MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F23CET CTS 晶振 ATSSMGL 5MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F33CDT CTS 晶振 ATSSMGL 5MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F33CET CTS 晶振 ATSSMGL 5MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F35CDT CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F35CET CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F35IDT CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL050F35IET CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL060F23CDT CTS 晶振 ATSSMGL 6MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F23CET CTS 晶振 ATSSMGL 6MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F33CDT CTS 晶振 ATSSMGL 6MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F33CET CTS 晶振 ATSSMGL 6MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F35CDT CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F35CET CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F35IDT CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL060F35IET CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL061F23CDT CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F23CET CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F33CDT CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F33CET CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F35CDT CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F35CET CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F35IDT CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL061F35IET CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL073F23CDT CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F23CET CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F33CDT CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F33CET CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F35CDT CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F35CET CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F35IDT CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL073F35IET CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL080F23CDT CTS 晶振 ATSSMGL 8MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F23CET CTS 晶振 ATSSMGL 8MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F33CDT CTS 晶振 ATSSMGL 8MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F33CET CTS 晶振 ATSSMGL 8MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F35CDT CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F35CET CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F35IDT CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL080F35IET CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL092F23CDT CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F23CET CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F33CDT CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F33CET CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F35CDT CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F35CET CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F35IDT CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL092F35IET CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL098F23CDT CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F23CET CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F33CDT CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F33CET CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F35CDT CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F35CET CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F35IDT CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL098F35IET CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL100F23CDT CTS 晶振 ATSSMGL 10MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F23CET CTS 晶振 ATSSMGL 10MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F33CDT CTS 晶振 ATSSMGL 10MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F33CET CTS 晶振 ATSSMGL 10MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F35CDT CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F35CET CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F35IDT CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL100F35IET CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL102F23CDT CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F23CET CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F33CDT CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F33CET CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F35CDT CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F35CET CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F35IDT CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL102F35IET CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL111F23CDT CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F23CET CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F33CDT CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F33CET CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F35CDT CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F35CET CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F35IDT CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL111F35IET CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL120F23CDT CTS 晶振 ATSSMGL 12MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F23CET CTS 晶振 ATSSMGL 12MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F33CDT CTS 晶振 ATSSMGL 12MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F33CET CTS 晶振 ATSSMGL 12MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F35CDT CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F35CET CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F35IDT CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL120F35IET CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL122F23CDT CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F23CET CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F33CDT CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F33CET CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F35CDT CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F35CET CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F35IDT CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL122F35IET CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL130F23CDT CTS 晶振 ATSSMGL 13MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F23CET CTS 晶振 ATSSMGL 13MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F33CDT CTS 晶振 ATSSMGL 13MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F33CET CTS 晶振 ATSSMGL 13MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F35CDT CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F35CET CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F35IDT CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL130F35IET CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL135F23CDT CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F23CET CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F33CDT CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F33CET CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F35CDT CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F35CET CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F35IDT CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL135F35IET CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL143F23CDT CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F23CET CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F33CDT CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F33CET CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F35CDT CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F35CET CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F35IDT CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL143F35IET CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL147F23CDT CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F23CET CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL147F33CDT CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F33CET CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL147F35CDT CTS 晶振 ATSSMGL 14.7456MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F35CET CTS 晶振 ATSSMGL 14.7456MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C







JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫電子有限公司

聯系人：茹紅青

手機：13510569637

電話：0755-27837162

QQ號：657116624

微信公眾號：CITIZENCRYSTAL

搜狐公眾號：晶振石英晶振NDK晶振

郵箱：jinluodz@163.com

地址：深圳市寶安區41區甲岸路19號

網址：http://m.908tw.com/

相關的產品 / Related Products

12.85054晶振,KX–13T格耶晶振,7050高精度晶振
12.85054晶振,KX–13T格耶晶振,7050高精度晶振

12.85054晶振,KX–13T格耶晶振,7050高精度晶振,其精準頻率輸出是保障藍牙通信距離與音頻播放質量的核心,廣泛應用于TWS耳機,智能音箱等產品,助力設備實現低延遲數據交互與高清音頻輸出.KX–13T格耶晶振賦能工業物聯網應用晶振,憑借多泛音模式,寬溫適應與高可靠性,在PLC,工業路由器,傳感器節點中承擔頻率核心職責,確保惡劣工業環境下設備的連續穩定運行.


DSC6001JA3B-001.0000,Microchip晶體振蕩器,2520小型封裝晶振
DSC6001JA3B-001.0000,Microchip晶體振蕩器,2520小型封裝晶振

DSC6001JA3B-001.0000,Microchip晶體振蕩器,2520小型封裝晶振,以1MHz精準頻率為藍牙模塊,傳感器節點,車載信息娛樂系統提供穩定時序參考,CMOS輸出晶振模式確保信號傳輸?shù)牡蛽p耗與高完整性.產品支持1.71V~3.63V寬電壓范圍,適配電池供電設備的低功耗需求,同時通過嚴苛的環境可靠性測試,在溫濕度劇烈變化,振動干擾等復雜工況下仍能穩定工作.


511BBA100M000AAGR,LVDS差分輸出晶振,7050思佳訊進口晶振
511BBA100M000AAGR,LVDS差分輸出晶振,7050思佳訊進口晶振

511BBA100M000AAGR,LVDS差分輸出晶振,7050思佳訊進口晶振,100MHz頻率搭配LVDS差分輸出,能完美滿足服務器,交換機,路由器等網絡設備的時鐘同步需求.7050封裝兼顧小型化與穩定性,可嵌入FPGA,高速ADC/DAC模塊,有效減少數據傳輸誤碼率,在5G通信基站,數據中心存儲設備及北斗定位終端中發揮核心時序控制作用.


JLX-PD

金洛鑫產品系列

PRODUCT LINE

石英晶振
QuartzCrystal

貼片晶振
SMDcrystal

諧振器濾波器
Resonator

溫補晶振
TCXOcrystal

32.768K
32768Kcrystal

霧化片
AtomizationPiece

智能穿戴

車載安防

通訊網絡

智能玩具

金洛鑫聯系方式
咨詢熱線：0755-27837162

手機：13510569637

QQ：QQ

郵箱：jinluodz@163.com

地址：廣東省深圳市寶安區寶安41區甲岸路

911精产国品一二三区在线观看-久久色婷婷中文字幕-亚洲中文字幕久久久久-日韩啪啪啪免费视频 | 亚洲天堂av伦理小说-久久伊人精品一区二区三区-久久久精品人妻一区二区三区蜜臀-欧美精品久久久久精品三级 | 三级黄色片av在线观看-中文字幕乱偷人妻一二三区蜜臀-麻豆国产一区二区三区四区-久久精品国产色蜜蜜麻豆国语版 | 中文精品久久久久人妻不-久久精选视频在线观看-国产精品久久久久五月天综合网-91一区二区国产精华液的功能 | 五月色丁香婷婷基地-成人综合亚洲swag-午夜美女视频一区二区三区-久久久精品在线免费观看视频 | 蜜桃一区二区三区在线播放-成人婷婷网色偷偷亚洲男人的天堂-不卡在线一区二区三国产在线视频-日韩有码视频播放 | 国产成人精品在线网站-日韩美视频一二三在线观看-人妻中文字幕诱惑 97-日韩中文字幕无马 | 日韩b视频在线-久久久精品人妻一区二区三-男人操女人逼逼视频-国产日韩欧美精品小视频 | 熟女人妻 中文字幕在线观看-久久精品久久精品国产-亚洲乱码 中文字幕-人妻熟女av在线 | 99精品视频69v精品视频-亚洲精品乱码9999-欧美日韩激情视频二区视频一区在线-91成人短视频免费下载 | 亚洲经典乱码久久久久久久久-国产精品99自拍偷拍-91精品夜夜一区二区三区-丁香六月婷婷在线播放 91精品一区二区三区久久-国产欧美亚洲视频一区二区-中文字幕日韩精品有码-91在线观看成人版 | 精美欧美一区二区三区-日韩三区三区一区区欧69国产-色噜噜品一区二区三区孕妇-久久偷拍女人厕所尿尿wc | 国精产品一区二区免费-麻豆国产av91-日韩高清免费播放在线观看网站-av日韩精品在线观看入口 | 色综合久久超碰色婷婷-日韩伊人久久网高清播放-1024欧美一区二区人妻-久久久久久9久久久久久91 | 国产精品,亚洲精品-欧美激情专区一区二区三区-超碰免费97人妻-久久久久久久久久久精品福利有码 | 人妻ⅴa中文字幕-精品一区二区三区四区5区视频-欧美另类老熟女bbbxxx-欧美免费高清视频观看 | 999精品免费观看视频-91热久久免频精品黑人99人妻-成人中文字幕视频网站-日韩视频在线一级最近 | 91久久六热视频精品女人91-国产中文字幕伦伦av-午夜精品久久久久99蜜桃最新版香香蕉-精品人妻一区二区三区四中文字幕 | 国产精品久久久久久99蜜桃-中文字幕最新在线视频-久久综合久91-91久久精品人妻中文 | 国产日韩成人在线麻豆-99久久久久www-91精品人妻一区二区三区中文字幕-99久久精品久久久久清纯 | 久久9re热视频精品98-www日韩人妻-欧美日韩婷婷色中文字幕-久久久久久久久在线免费看 | 日本无卡一区二区-国产麻豆色哟哟-久久午夜国产精品www-超碰超碰人人人人精品 | 久久精品俺也去av-18禁精品网站久久久久久-日韩激情熟女中文字幕-91久久久久久久久久久久91 | 国产又粗又长黄-日韩人妻第1页-日韩欧美精品有码在线洗濯屋-久久久久久99久久 | 亚洲精品久久久久福利-婷婷的五月在线-国产可以直接在线观看的av-蜜桃久久精品一二三区香蕉 | 久久久久亚洲精品黄色av-东京热免费av网站-中文字幕av一区久久-大日本熟女视频三区 | 国产又粗又长又猛高潮呻吟-综合久久色88-欧美日韩精品a v-九九久久高清久久九九 | 在线观看91麻豆欧美-元码人妻精品一区二区三区9-亚洲精品电影久久久久-国产精品久久久久久久久999 | 欧美成人一区二区三区在线视频-91日韩欧美中文字幕-熟妇高潮一区二区在线播放-亚洲综合中文字幕在线观看 | 五月综合久久激情-久久网在线观看视频-毛片日产av一区二区三区四区-99精品国产久久久久久 | av一区二区三区在线免费观看-熟妇高潮一区二区视频-日韩啊v视频在线-国产激情在线视频网址 | 91精品国产91久久久久久手机-999精品视频在线观看-久久久熟妇熟女资源-久久久久黄色精品久久久久 | 粉嫩久久久久久极品-亚洲中文字幕精品高清-91色综合久久不8-9999久久精品国产 | 97人妻碰碰碰久久久久动漫-婷婷午夜精品久久-中文字幕在线av播放-国产av不卡中文字幕 | 国产麻豆精品推荐-色婷婷一区二区四区-婷婷基地中文字幕-成人免费视频现网站99在线观看 | 日韩第一区av-久久久久夜色国产精品亚洲-日韩理论性国产精品视频-国产口爆av一区二区三区 | 久久精品国产精品国产精品污-天天干天天操天天射天天操-亚洲人妻一区二区在线观看-精品乱子伦一区二区… | 成人大片免费在线播放-国产av不卡一区二区三区-国产成人精品免费视频网站-麻豆免费视频观看入口 蜜臀av精品一区二区三区-成人免费视频日韩综合-中文字幕欧美日韩蜜桃视频-精品人妻乱码一区二区三区 | 日韩性生活一级-免费中文字幕在线视频-久激情内射婷内射-亚洲五月婷婷综合网 | 国产精品日韩欧美立足美利坚-蜜桃成人黄色影院-日韩中文字幕观看-久久久视频网站在线观看 | 亚洲欧美日韩另类系列-88av激情五月天-日韩精品熟妇视频-国产又粗又猛又爽又黄的a |
