EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
頻率：48 MHz

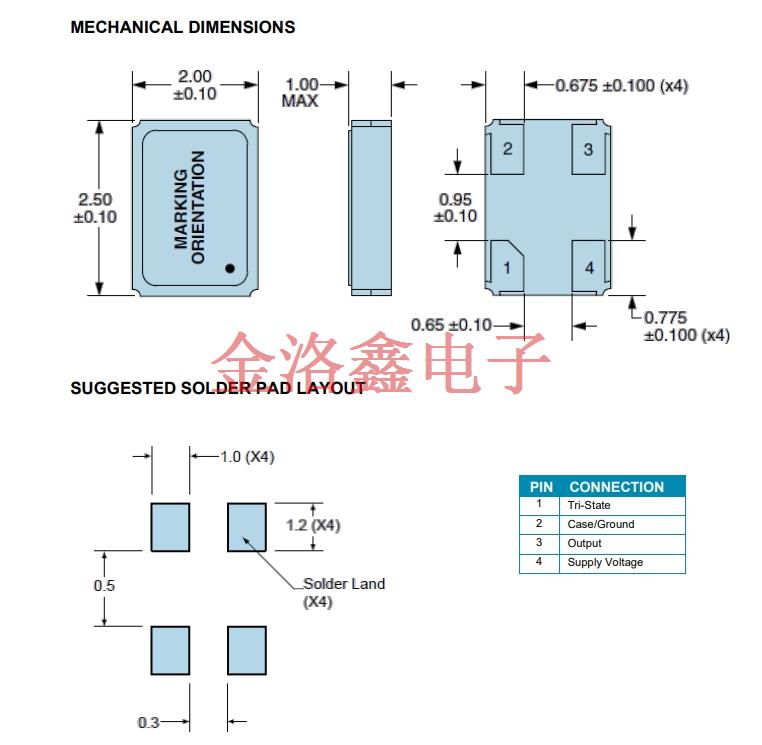

尺寸：2.50mm x 2.00mm
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
EC5645ETTTS-48.000MTR作為日蝕(Ecliptek)旗下的有源晶振,憑借品牌自研的"有源驅動校準技術",實現48.000MHz高頻信號的穩定輸出,頻率精度嚴格控制在±10ppm以內,頻率穩定度(長期)低至±5ppm/年,遠超行業內部分同類有源晶振±15ppm的精度標準,為高帶寬電子設備提供精準且持久的時鐘基準.在通信領域,可適配5G毫米波基站的信號處理單元,光纖通信晶振的高速收發模塊,48MHz高頻特性能夠支撐每秒10GB以上的數據流傳輸,減少信號同步偏差,將數據丟包率控制在0.001%以下,在工業自動化場景,為高速伺服電機控制器,機器視覺檢測系統提供時鐘信號,確保電機轉速控制精度(誤差≤0.1rpm),視覺識別響應速度(≤0.5ms),避免因頻率波動導致的生產效率下降,在消費電子領域,如4K/8K超高清電視的圖像處理模塊,電競主機的高速數據接口控制單元,其穩定頻率輸出可杜絕畫面卡頓,數據傳輸延遲等問題,為用戶帶來流暢的使用體驗,全面覆蓋通信,工業,消費電子等高頻高帶寬設備需求.
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
| 原廠型號 Originalmodel： |
          EC5645ETTTS-48.000M TR
|
品牌brand： | Ecliptek晶振 |
| Manufacturer品牌 | Ecliptek晶振 | OperatingTemperature溫度 | -40°C ~ 85°C |
| Series型號 |
  EC56
|
Current-Supply(Max) | 8mA |
| Type類型 | XO (Standard) | PackageHeight高度 | 1.00mm |
| Frequency頻率 |
  48 MHz
|
Termination 腳位 |
 4 pad
|
| 輸出方式 Output： | LVCMOS | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 |
      ±50ppm
|
安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 2.50mm x 2.00mm | 最小包裝數MPQ： | 3000 |
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
EC5645ETTTS-48.000MTR,日蝕有源晶振,2520晶體振蕩器
| EC5625ETTTS-8.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 8 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3645ETTTS-8.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 8 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3625ETTTS-32.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 32 MHz | LVCMOS | 3.3V | ±25ppm |
| EB13E2H2H-25.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-50.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-33.333M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 33.333 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-48.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-24.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 24 MHz | CMOS | 3.3V | ±50ppm |
| EC5645ETTTS-24.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 24 MHz | LVCMOS | 3.3V | ±50ppm |
| EC5645ETTTS-25.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2745ETTTS-25.000M TR | Ecliptek晶振 | EC27 | XO (Standard) | 25 MHz | LVCMOS | 2.5V | ±50ppm |
| EC3645TS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3645TTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3645ETTTS-12.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 12 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3625ETTTS-16.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 16 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3625ETTTS-27.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3645ETTTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3625ETTTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±25ppm |
| EC2645TS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2645TTS-33.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2600TS-40.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 40 MHz | LVCMOS | 3.3V | ±100ppm |
| EC2620TS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±20ppm |
| EC2645ETTS-33.333M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33.333 MHz | CMOS | 3.3V | ±50ppm |
| EQRD13K2J-156.250M TR | Ecliptek晶振 | EQRD | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| EC5625ETTTS-4.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 4 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3625TTS-27.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±25ppm |
| EC5945ETTS-26.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 26 MHz | CMOS | 1.8V | ±50ppm |
| EB13E2E2H-25.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2E2H-50.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2D2H-40.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 40 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2J2H-50.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2H2H-16.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 16 MHz | CMOS | 3.3V | ±50ppm |
| EC5625ETTTS-12.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 12 MHz | LVCMOS | 3.3V | ±25ppm |
| EC5645ETTTS-32.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 32 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2745TTS-25.000M TR | Ecliptek晶振 | EC27 | XO (Standard) | 25 MHz | LVCMOS | 2.5V | ±50ppm |
| EC3625ETTTS-10.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 10 MHz | LVCMOS | 3.3V | ±25ppm |
| EC3645ETTS-25.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 25 MHz | LVCMOS | 3.3V | ±50ppm |
| EC3645TS-50.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 50 MHz | LVCMOS | 3.3V | ±50ppm |
| EC2620TS-12.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 12 MHz | CMOS | 3.3V | ±20ppm |
| EC2620TS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz | LVCMOS | 3.3V | ±20ppm |
| EV32C6A3A1-24.576M TR | Ecliptek晶振 | EV32 | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2E2H-16.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 16 MHz | CMOS | 3.3V | ±25ppm |
| EC3600ETTS-18.432M TR | Ecliptek晶振 | EC36 | XO (Standard) | 18.432 MHz | LVCMOS | 3.3V | ±100ppm |
| EB13E2H2H-10.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 10 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-27.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 27 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-20.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 20 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2H2H-12.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 12 MHz | CMOS | 3.3V | ±50ppm |
| EC3645ETTTS-24.000M TR | Ecliptek晶振 | EC36 | XO (Standard) | 24 MHz | LVCMOS | 3.3V | ±50ppm |
| EB15E2C2H-40.000M TR | Ecliptek晶振 | EB15E2 | XO (Standard) | 40 MHz | LVCMOS | 2.5V | ±100ppm |
| EC2600TS-66.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 66 MHz | LVCMOS | 3.3V | ±100ppm |
| EC5645ETTTS-27.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 27 MHz | LVCMOS | 3.3V | ±50ppm |
| EC5645ETTTS-30.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 30 MHz | LVCMOS | 3.3V | ±50ppm |
| EC5645ETTTS-48.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 48 MHz | LVCMOS | 3.3V | ±50ppm |
| EB13E2H2H-8.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 8 MHz | CMOS | 3.3V | ±50ppm |
| EB13E2E2H-48.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 48 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2E2H-8.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 8 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2H2H-24.576M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±50ppm |
| EC5625ETTTS-10.000M TR | Ecliptek晶振 | EC56 | XO (Standard) | 10 MHz | LVCMOS | 3.3V | ±25ppm |
| EB13E2J2H-25.000M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| EB13E2H2H-14.7456M TR | Ecliptek晶振 | EB13E2 | XO (Standard) | 14.7456 MHz | CMOS | 3.3V | ±50ppm |
