KC3225L110.000H30E00-HCSL貼片晶振-6G基站晶振
頻率：110MHZ
尺寸：3.2mm x 2.5mm
KC3225L110.000H30E00-HCSL貼片晶振-6G基站晶振,HCSL貼片晶振,KC3225L-H3有源晶振,KC3225L110.000H30E00晶振,日本京瓷石英晶振,6G基站晶振,石英晶體振蕩器,頻率110MHz,電壓3.3V,工作溫度0~70°C,頻率容差50ppm, 無線網絡晶振,通信設備晶振,網絡交換機晶振,測試與測量設備晶振,存儲系統晶振.
訂購熱線：0755-27837162
KC3225L110.000H30E00-HCSL貼片晶振-6G基站晶振,HCSL貼片晶振,KC3225L-H3有源晶振,KC3225L110.000H30E00晶振,日本京瓷進口晶振,6G基站晶振,石英晶體振蕩器,頻率110MHz,電壓3.3V,工作溫度0~70°C,頻率容差50ppm, 無線網絡晶振,通信設備晶振,網絡交換機晶振,測試與測量設備晶振,存儲系統晶振.
KC3225L110.000H30E00-HCSL貼片晶振-6G基站晶振特點：
●小型陶瓷封裝類型
●LVDS輸出
●電源電壓VCC=2.5V
●±25×10 - 6可以應對
KC3225L110.000H30E00-HCSL貼片晶振-6G基站晶振 參數表
0.85Vmax
項目
符號
規格說明
條件
額定頻率
f_nom
110MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
0℃~ +70℃
頻率公差（標準）
f_tol
±50 ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電流消耗
ICC
55mA Max
待機電流
I_std
10μA Max
對稱性（占空比）
SYM
45%~55%
50ohm @crossing point
H電平輸出電壓
VOH
0.6V min
L電平輸出電壓
VOL
±0.15V max
輸出負載
RL
50Ω
HCSL Output
輸入電壓
VIH
70%Vcc Min
OE terminal
VIL
30%Vcc Max
上升下降時間
tr/tf
0.5ns Max
100ohm
起始時間
t str
10ms Max
最小工作電壓為0sec . 10ms
確定性抖動
DJ
2ps Max
Measured with Wavecrest SIA-3000
1 Sigma 抖動
JSigma
4ps Max
峰對峰抖動
JPK-PK
30ps Max
相位抖動
JPhase
1ps Max

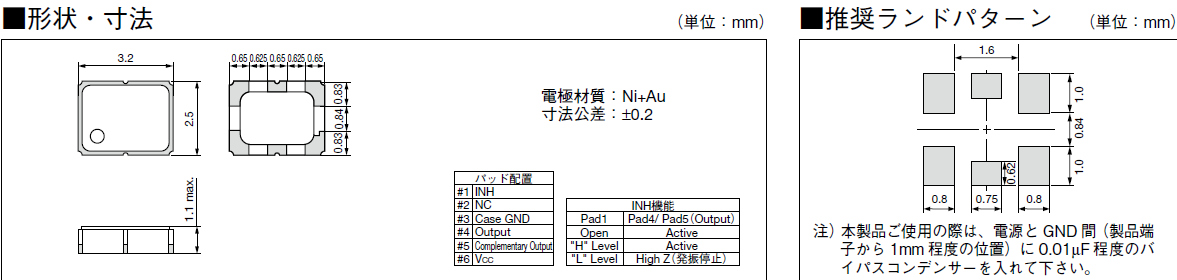

KC3225L110.000H30E00-HCSL貼片晶振-6G基站晶振尺寸圖
