LFTCXO075797Reel,IQD有源溫補晶振,工業設備晶振
頻率：20MHz
尺寸：3.20mm x 2.50mm
LFTCXO075797Reel,IQD有源溫補晶振,工業設備晶振
作為IQD英國晶振品牌旗下產品,LFTCXO075797Reel依托品牌成熟的晶振研發與生產體系,品質更具保障.采用高精度石英晶片與先進的溫補電路設計,內部元器件經過嚴格篩選,確保長期工作穩定性,外殼選用工業級金屬封裝,具備良好的防塵,防震動性能,可承受工業設備運行中的機械振動與沖擊,每批次產品均通過工業級可靠性測試(如高溫老化測試,振動測試,濕度循環測試),并符合ISO9001質量管理體系與RoHS環保標準,滿足工業設備對元器件壽命(可達10萬小時以上)與合規性的要求.
LFTCXO075797Reel,IQD有源溫補晶振,工業設備晶振
| Original model 原廠編碼 | LFTCXO075797Reel |
| Manufacturer 品牌 | IQD |
| Part Series 型號 | LFTCXO075797Reel |
| Type 類型 | TCXO |
| Frequency 頻率 | 20MHz |
| Output Type 輸出方式 | 削峰正弦波輸出 |
| Supply Voltage 電壓 | 3.3V |
| Frequency Stability 頻率穩定性 | ±280ppb |
| Operating Temperature 工作溫度 | -40° / +85°C |

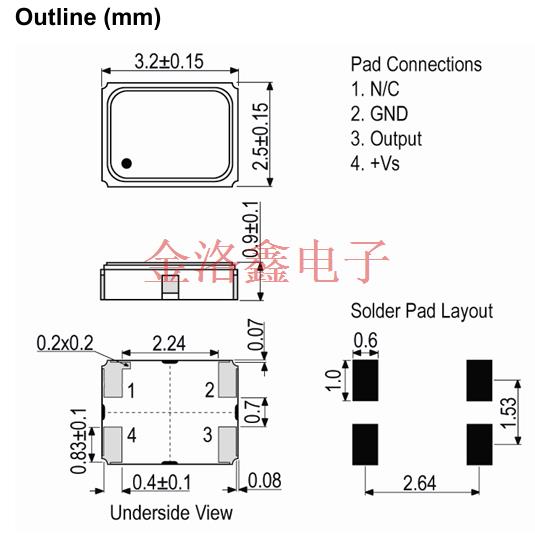

| Package Size 包裝尺寸 | 3225石英晶振 |
| Package Height 厚度 | - |
| Termination 腳位 | 4 pads |
| Package Type 封裝類型 | 4-SMD |
| Lead Free 無鉛 | Yes |
| Mounting Style 安裝方式 | Surface Mount |
| Packaging 包裝 | Tape and Reel |
LFTCXO075797Reel,IQD有源溫補晶振,工業設備晶振
LFTCXO075797Reel,IQD有源溫補晶振,工業設備晶振
| 12.87000 | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87001 | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87002 | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87034 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 4 pF | ± 20 ppm |
| 12.87080 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87081 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87083 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87086 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 6 pF | ± 10 ppm |
| 12.87090 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87095 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 10 ppm |
| 12.87105 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 6 pF | ± 10 ppm |
| 12.87107 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87109 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12 pF | ± 15 ppm |
| 12.87110 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87111 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87112 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87113 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87114 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87115 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87116 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87118 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87119 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87120 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87121 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87123 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 6 pF | ± 30 ppm |
| 12.87126 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87127 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 6 pF | ± 30 ppm |
| 12.87128 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87129 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87130 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87131 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87132 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87133 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87134 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87135 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87136 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87137 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87138 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87139 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87143 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87144 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 5.0 ppm |
| 12.87145 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87146 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 10 ppm |
| 12.87147 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87148 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87149 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87150 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87151 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 30 ppm |
| 12.87152 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87153 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87155 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87157 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87158 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87159 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87160 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87161 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87163 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87164 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 9 pF | ± 30 ppm |
| 12.87165 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87166 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
