OXEIDLJANF-0.032768,Taitien晶體振蕩器,臺產晶振,可穿戴設備晶振
頻率：32.768 kHz

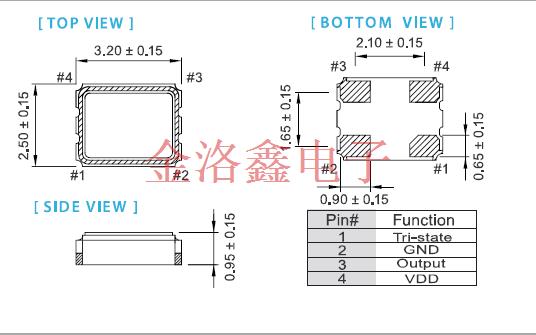

尺寸：3.20mm x 2.50mm
OXEIDLJANF-0.032768,Taitien晶體振蕩器,臺產晶振,可穿戴設備晶振,作為Taitien晶體(泰藝)專為可穿戴設備研發的關鍵計時元件,OXEIDLJANF-0.032768以0.032768MHz(32.768kHz)標準頻率為核心,完美適配智能手表,運動手環等設備的實時時鐘(RTC)需求.其臺產工藝賦予產品高一致性,頻率穩定度達±20ppm(典型值),能在可穿戴設備有限的空間內,為時間顯示,睡眠監測,運動計時等功能提供精準時鐘基準,同時低功耗設計(靜態電流低至0.5μA)有效延長設備續航,是可穿戴設備計時系統的理想選擇.
訂購熱線：0755-27837162
OXEIDLJANF-0.032768,Taitien晶體振蕩器,臺產晶振,可穿戴設備晶振
OXEIDLJANF-0.032768晶振憑借0.032768MHz的通用實時時鐘頻率,可廣泛適配各類可穿戴設備晶振,如兒童智能手表的定位計時,老人健康手環的心率監測時間同步,運動手表的多模式運動計時等.作為Taitien臺產產品,其工藝成熟度高,批次間性能差異小,兼容自動化貼片生產,能快速融入可穿戴設備生產線,幫助廠商降低研發與生產成本,提升產品量產效率.實現超低功耗運行,即使在設備待機狀態下,也能以微安級電流維持0.032768MHz頻率穩定輸出,大幅降低RTC模塊能耗,延長智能手環,智能戒指等設備的充電間隔.同時,其小巧的貼片封裝(適配可穿戴設備微型主板)與寬溫域設計(支持-40℃~+85℃),能適應不同佩戴環境,保障計時功能持續可靠.
OXEIDLJANF-0.032768,Taitien晶體振蕩器,臺產晶振,可穿戴設備晶振
| 原廠型號 Originalmodel： | OXEIDLJANF-0.032768 | 品牌brand： | Taitien |
| Manufacturer品牌 | Taitien | OperatingTemperature溫度 | -40°C ~ 85°C |
| Series型號 | OX | Current-Supply(Max) | 10μA |
| Type類型 | XO | PackageHeight高度 | 1.10mm |
| Frequency頻率 | 32.768kHz晶振 | Termination 腳位 | 4pad |
| 輸出方式 Output： | CMOS | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 2.8V ~ 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±25ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 3.20mm x 2.50mm | 最小包裝數MPQ： | 3000 |
OXEIDLJANF-0.032768,Taitien晶體振蕩器,臺產晶振,可穿戴設備晶振
OXEIDLJANF-0.032768,Taitien晶體振蕩器,臺產晶振,可穿戴設備晶振
| OCETGCJTNF-48.000000 | Taitien | OC | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| OXETDCJANF-0.032768 | Taitien | OX | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| OCETDLJANF-25.000000 | Taitien | OC | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| TZKTADSANF-26.000000 | Taitien | TZ | TCXO | 26 MHz | Clipped Sine Wave | 1.8V | ±500ppb | -30°C ~ 85°C |
| TXEABLSANF-24.000000 | Taitien | TX | VCTCXO | 24 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXEABLSANF-26.000000 | Taitien | TX | VCTCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXKTPCSANF-32.000000 | Taitien | TX | TCXO | 32 MHz | Clipped Sine Wave | 1.8V | ±1.5ppm | -20°C ~ 70°C |
| TXEAADSANF-20.000000 | Taitien | TX | VCTCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -30°C ~ 85°C |
| TXETALSANF-10.000000 | Taitien | TX | TCXO | 10 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -40°C ~ 85°C |
| TYETBCSANF-32.000000 | Taitien | TY | TCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -20°C ~ 70°C |
| TYETBLSANF-40.000000 | Taitien | TY | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TYEAPLSANF-40.000000 | Taitien | TY | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm | -40°C ~ 85°C |
| TYETACSANF-26.000000 | Taitien | TY | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| TYEAACSANF-38.400000 | Taitien | TY | VCTCXO | 38.4 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| VLCUWCWTNF-100.000000 | Taitien | VLCU | VCXO | 100 MHz | Sine Wave | 5V | ±35ppm | -20°C ~ 70°C |
| TSEAALJANF-10.000000 | Taitien | TS | VCTCXO | 10 MHz | CMOS | 3.3V | ±500ppb | -40°C ~ 85°C |
| TWETALJANF-40.000000 | Taitien | TW | TCXO | 40 MHz | CMOS | 3.3V | ±500ppb | -40°C ~ 85°C |
| TWEAKLJANF-20.000000 | Taitien | TW | VCTCXO | 20 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTETKLJANF-10.000000 | Taitien | TT | TCXO | 10 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTEAKLJANF-10.000000 | Taitien | TT | VCTCXO | 10 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTETKLSANF-10.000000 | Taitien | TT | TCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±280ppb | -40°C ~ 85°C |
| TSEATLJANF-10.000000 | Taitien | TS | VCTCXO | 10 MHz | CMOS | 3.3V | ±4.6ppm | -40°C ~ 85°C |
| TWETMCJANF-10.000000 | Taitien | TW | TCXO | 10 MHz | CMOS | 3.3V | ±100ppb | -20°C ~ 70°C |
| TTEAALJANF-50.000000 | Taitien | TT | VCTCXO | 50 MHz | CMOS | 3.3V | ±500ppb | -40°C ~ 85°C |
| NNENCLJNNF-10.000000 | Taitien | NN | OCXO | 10 MHz | CMOS | 3.3V | ±20ppb | -40°C ~ 85°C |
| NI-10M-2400 | Taitien | NI-10M-2400 | OCXO | 10 MHz | LVTTL | 5V | ±3ppb | -30°C ~ 70°C |
| NI-10M-2403 | Taitien | NI-10M-2400 | OCXO | 10 MHz | LVTTL | 5V | ±3ppb | -40°C ~ 85°C |
| NI-10M-2503 | Taitien | NI-10M-2500 | OCXO | 10 MHz | Sine Wave | 5V | ±3ppb | -40°C ~ 85°C |
| NI-100M-2900 | Taitien | NI-100M-2900 | OCXO | 100 MHz | Sine Wave | 12V | ±50ppb | -40°C ~ 85°C |
| NA-100M-6822 | Taitien | NA-100M-6800 | OCXO | 100 MHz | Sine Wave | 12V | ±100ppb | -40°C ~ 85°C |
| OCKTGLJANF-0.032768 | Taitien | OC | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| OCETGLJTNF-100.000000 | Taitien | OC | XO (Standard) | 100 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| TXETCLSANF-40.000000 | Taitien | TX | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -40°C ~ 85°C |
| TXETDDSANF-16.000000 | Taitien | TX | TCXO | 16 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -30°C ~ 85°C |
| TXETDCSANF-20.000000 | Taitien | TX | TCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -20°C ~ 70°C |
| TXETBLSANF-40.000000 | Taitien | TX | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXEABDSANF-32.000000 | Taitien | TX | VCTCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -30°C ~ 85°C |
| TXETDDSANF-30.000000 | Taitien | TX | TCXO | 30 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -30°C ~ 85°C |
| TXETBLSANF-26.000000 | Taitien | TX | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXEAPDSANF-19.200000 | Taitien | TX | VCTCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm | -30°C ~ 85°C |
| TXEAPLSANF-40.000000 | Taitien | TX | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm | -40°C ~ 85°C |
| TXEACDSANF-26.000000 | Taitien | TX | VCTCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -30°C ~ 85°C |
| TXEACDSANF-20.000000 | Taitien | TX | VCTCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -30°C ~ 85°C |
| TXETBLSANF-27.000000 | Taitien | TX | TCXO | 27 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXETBLSANF-19.200000 | Taitien | TX | TCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXETALSANF-26.000000 | Taitien | TX | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -40°C ~ 85°C |
| TXEAACSANF-40.000000 | Taitien | TX | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| TXEAADSANF-25.000000 | Taitien | TX | VCTCXO | 25 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -30°C ~ 85°C |
| TYETBLSANF-38.400000 | Taitien | TY | TCXO | 38.4 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TYETBCSANF-50.000000 | Taitien | TY | TCXO | 50 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -20°C ~ 70°C |
| TYETACSANF-32.000000 | Taitien | TY | TCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| TYETACSANF-20.000000 | Taitien | TY | TCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| PYEUCJJANF-100.000000 | Taitien | FASTXO | XO (Standard) | 100 MHz | CMOS | 2.8V ~ 3.3V | ±20ppm | -40°C ~ 105°C |
| TWEAALSANF-10.000000 | Taitien | TW | VCTCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±500ppb | -40°C ~ 85°C |
| TTETKLJANF-30.720000 | Taitien | TT | TCXO | 30.72 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTEAMCSANF-10.000000 | Taitien | TT | VCTCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±100ppb | -20°C ~ 70°C |
| OYKTGLJANF-0.032768 | Taitien | OY | XO (Standard) | 32.768 kHz | CMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| OYETDLJANF-25.000000 | Taitien | OY | XO | 25 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| TXETDDSANF-19.200000 | Taitien | TX | TCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -30°C ~ 85°C |
| TXETCLSANF-25.000000 | Taitien | TX | TCXO | 25 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -40°C ~ 85°C |
