Q 0.032768-JTX310-12.5-20-T1-HMR-LF/3215mm/Jauch無源晶振

頻率：32.768KHz

尺寸：3.2mm x 1.5mm

Q 0.032768-JTX310-12.5-20-T1-HMR-LF/3215mm/Jauch無源晶振,Q 0.032768-JTX310-12.5-20-T1-HMR-LF,3215mm兩腳貼片晶振,Jauch無源晶振,32.768KHz晶振,耐高溫晶振,物聯網晶振,汽車控制器晶振,GPS導航晶振.

訂購熱線：0755-27837162

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

Q 0.032768-JTX310-12.5-20-T1-HMR-LF/3215mm/Jauch無源晶振參數

型號		JTX310
頻率		32.768 kHz
頻率公差 at 25 °C ± 5 °C		± 20 ppm
負載電容 CL		12.5 pF
溫度常數(TC)		TC = -0.04 ppm / °C2 max. TC = -0.034 ppm / °C2 typical

頻率溫度特性Co		Δf = TC · (TA - TTP)2 in [ppm] TA = actual ambient temperature TTP = 25 °C ± 5 °C TTP = turning point temperature

工作溫度		-40 °C ~ +85 °C
并聯電容 Co		1.15 pF typical
串聯電阻最大值 (ESR)		70 kΩ
儲存溫度		-55 °C ~ +125 °C
最大驅動電平		0.5 µW
第一年老化		< ± 3 ppm

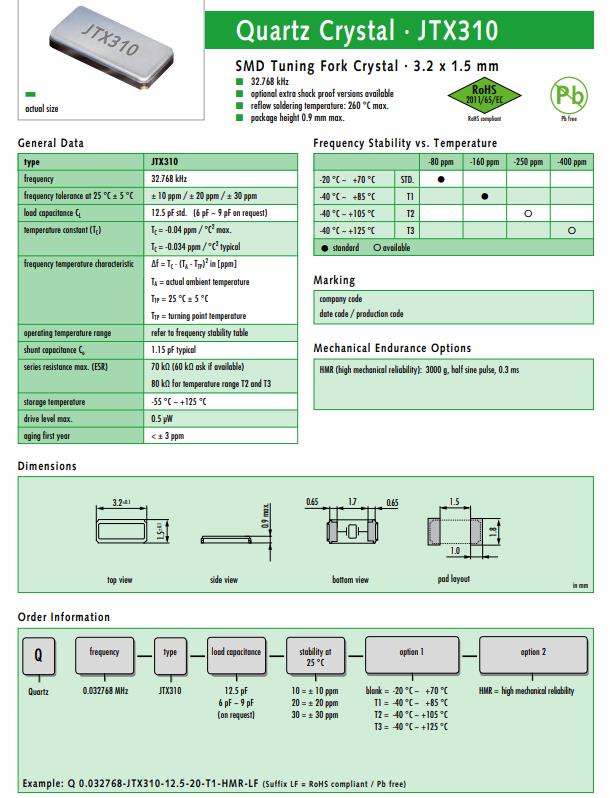

Q 0.032768-JTX310-12.5-20-T1-HMR-LF/3215mm/Jauch無源晶振規格圖

Jauch晶振原廠編碼	制造商	型號	頻率	頻率容差	負載電容	Operating Mode	工作溫度
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 105°C
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	Fundamental	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	Fundamental	-40°C ~ 85°C
