Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振
頻率：122.88MHZ
尺寸：5.0mm x 3.2mm
Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振,Skyworks晶振,Si549石英晶體振蕩器,LVDS差分晶振,進口有源晶振,549BBAA000368BCGR晶振,5032mm晶振,頻率122.88MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性10ppm,6G低抖動晶振,高穩定性晶振,FPGA/ASIC時鐘晶振,存儲器晶振,搜索加速晶振,視頻播放器晶振.
訂購熱線：0755-27837162
Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振,Skyworks晶振,Si549石英晶體振蕩器,549BBAA000368BCGR晶振,5032mm晶振,LVDS差分晶振,進口有源晶振,頻率122.88MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性10ppm,6G低抖動晶振,高穩定性晶振,FPGA/ASIC時鐘晶振,存儲器晶振,搜索加速晶振,視頻播放器晶振.
Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振特點：
•I2C可編程到任何頻率從0.2到1500 MHz，分辨率< 1 ppb
•超低抖動:95 fs類型RMS (12 kHz - 20 MHz)
•配置多達4引腳可選擇的啟動頻率
•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)
•出色的PSNR和電源抗噪性:-80 dBc類型
•3.3 V, 2.5 V和1.8 V VDD供電操作從相同的零件號
•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS輸出選項
•2.5x3.2, 3.2x5, 5x7 mm包裝選項
•樣品交付周期為1-2周
Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振參數表
項目
符號
規格說明
條件
額定頻率
f_nom
122.88MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±10 ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
121mA Max
LVDS
對稱性（占空比）
SYM
45%~55%
在輸出交叉點
輸出電壓
VOC
1.275V Max
LVDS
VO
0.9Vpp Max
輸入電壓
VIH
70%VDD Min
VIL
30%VDD Max
上升下降時間
tr/tf
350ps Max
LVDS
起始時間
t str
3ms Max
相位抖動
tpj
150fs Max
100 MHz ≤ FCLK < 200 MHz

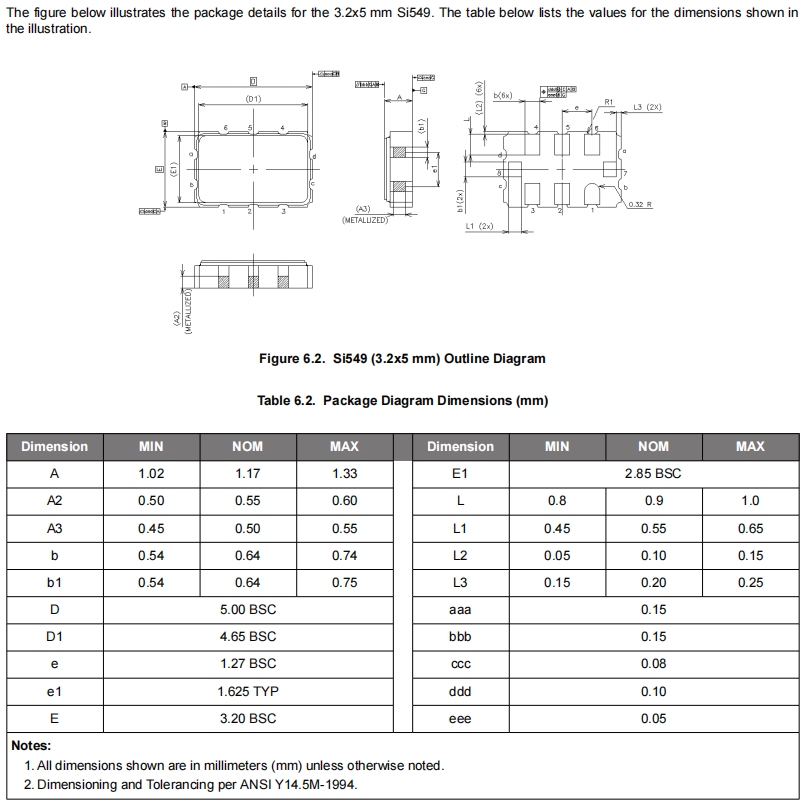

Skyworks振蕩器,LVDS差分晶振,549BBAA000368BCGR,6G低抖動晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 | 工作溫度 |
| 549BAAB000212BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACB000148ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 24.576 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AAAC000118ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCCB002128ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CCCC000141ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 56.32 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BABA000368ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 122.88 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AAAA000426ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 145 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAB001589ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BBAA001968ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 1.2 GHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BAAC001741ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 70.656 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAA000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AAAA000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAB000118ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CCAC000141ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 56.32 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CAAC000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAA001968ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 1.2 GHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACA001937ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACA000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCCB002127ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCBA000122ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 1 GHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CAAA000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BACB000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCAB000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCCB002129ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 199 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCCB000126ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CBAC000508ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549DACB001619ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ACAA000112ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CCAC000118ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549GCDC002122ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 71.135 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549AAAA001372ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 7 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCAA000133ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 500 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BCCB001125ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 156.25 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549ACAA000111ACG | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | LVPECL | 2.5V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549DAAB001963BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 304.125 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCCB002127ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CAAC000385BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549AAAA000426ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 145 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CAAC000385BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CBAC000508ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | CMOS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549DAAA000485BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 625 MHz | CML | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BCCB002128ACGR | Skyworks Solutions Inc. | Ultra™ Si549 | 200 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549BAAA000798BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 1 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000111BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 25 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549GAAA000956BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 6.78 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BAAC000115BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549ABAB000115BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 125 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
| 549BCAA000131BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 120 MHz | LVDS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549CCAC002099BCG | Skyworks Solutions Inc. | Ultra™ Si549 | 1 MHz | CMOS | 1.8V ~ 3.3V | ±7ppm | -40°C ~ 85°C |
| 549AAAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 10 MHz | LVPECL | 2.5V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549CAAC000306BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 22.5792 MHz | CMOS | 1.8V ~ 3.3V | ±20ppm | -40°C ~ 85°C |
| 549BBAA000368BCGR | Skyworks Solutions Inc. | Ultra™ Si549 | 122.88 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm | -40°C ~ 85°C |
