TZ0327A晶振,3225石英晶體,TST嘉碩電子,臺產貼片晶振
頻率：12 MHz
尺寸：3.2x2.5mm

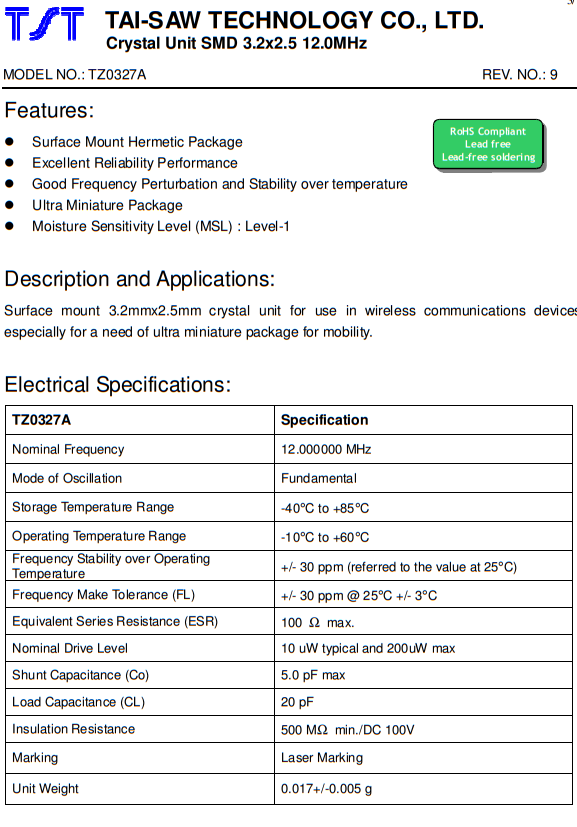

TZ0327A晶振,3225石英晶體,TST嘉碩電子,臺產貼片晶振，四腳貼片晶振，SMD貼片諧振器，無源石英晶體，編碼為：TZ0327A，頻率：12 MHz，頻率穩定性為:±30ppm，頻率公差為:±30ppm，負載電容為:20PF，小體積晶振尺寸：3.2x2.5mm，工作溫度為：--10C~+60C貼片晶振，3215mm石英晶振，超輕薄型貼片晶振，該貼片石英晶振產品外觀使用金屬材料封裝的，具有超高穩定性,高可靠性的特點，充分的密封性能,可確保其高可靠性,采用編帶包裝,外包裝采用朔膠盤,可在自動貼片機上對應自動貼裝，時常有應用于基站晶振，電腦主機晶振和的兒童電子書晶振等產品。
訂購熱線：0755-27837162
TZ0327A晶振,3225石英晶體,TST嘉碩電子,臺產貼片晶振，四腳貼片晶振，SMD貼片諧振器，無源石英晶體，編碼為：TZ0327A，頻率：12 MHz，頻率穩定性為:±30ppm，頻率公差為:±30ppm，負載電容為:20PF，小體積晶振尺寸：3.2x2.5mm，工作溫度為：--10C~+60C貼片晶振，3215mm石英晶振，超輕薄型貼片晶振，該貼片石英晶振產品外觀使用金屬材料封裝的，具有超高穩定性,高可靠性的特點，充分的密封性能,可確保其高可靠性,采用編帶包裝,外包裝采用朔膠盤,可在自動貼片機上對應自動貼裝，時常有應用于基站晶振，電腦主機晶振和智能穿戴晶振等產品。
TZ0327A晶振,3225石英晶體,TST嘉碩電子,臺產貼片晶振
| 編碼 | 品牌 | 頻率(MHz) | 負載電容(Pf) | 頻率公差/工作溫度 | 尺寸 |
| TZ0327A | TST嘉碩 | 12 | 20 | 30ppm/30ppm/-10C~+60C | 3.2x2.5x0.7 |
TZ0327A晶振,3225石英晶體,TST嘉碩電子,臺產貼片晶振
| 編碼 | 品牌 | 頻率(MHz) | 負載電容(Pf) | 頻率公差/工作溫度 | 尺寸 |
| TZ0327A | TST嘉碩 | 12 | 20 | 30ppm/30ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0327B | TST嘉碩 | 12 | 20 | 30ppm/30ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0327C | TST嘉碩 | 12 | 20 | 20ppm/20ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0327D | TST嘉碩 | 12 | 20 | 30ppm/30ppm/-10C~+70C | 3.2x2.5x0.7 |
| TZ0327E | TST嘉碩 | 12 | 20 | 15ppm/20ppm/-10C~+85C | 3.2x2.5x0.7 |
| TZ0341A | TST嘉碩 | 12 | 20 | 30ppm/30ppm/-10C~+60C | 4.0x2.5x0.8 |
| TZ0347A | TST嘉碩 | 12 | 10 | 20ppm/20ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0347B | TST嘉碩 | 12 | 10 | 10ppm/10ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0347C | TST嘉碩 | 12 | 10 | 10ppm/10ppm/-20C~+80C | 3.2x2.5x0.7 |
| TZ0347D | TST嘉碩 | 12 | 10 | 10ppm/10ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0347E | TST嘉碩 | 12 | 10 | 10ppm/10ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0358A | TST嘉碩 | 12 | 18 | 30ppm/30ppm/-10C~+60C | 5.0x3.2x0.8 |
| TZ0368A | TST嘉碩 | 12 | 18 | 30ppm/30ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0368B | TST嘉碩 | 12 | 18 | 20ppm/20ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0368C | TST嘉碩 | 12 | 18 | 30ppm/30ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0368D | TST嘉碩 | 12 | 18 | 10ppm/10ppm/-20C~+85C | 3.2x2.5x0.7 |
| TZ0368E | TST嘉碩 | 12 | 18 | 7ppm/15ppm/-40C~+85C | 3.2x2.5x0.7 |
| TZ0420A | TST嘉碩 | 12 | 9 | 10ppm/10ppm/-10C~+60C | 4.0x2.5x0.8 |
| TZ0433A | TST嘉碩 | 12 | 12 | 10ppm/25ppm/-40C~+85C | 4.0x2.5x0.8 |
| TZ0438A | TST嘉碩 | 12.8 | 8 | 10ppm/20ppm/-35C~+85C | 5.0x3.2x0.8 |
| TZ0442A | TST嘉碩 | 12 | 9 | 10ppm/10ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0449A | TST嘉碩 | 12 | 9 | 10ppm/10ppm/-20C~+70C | 4.0x2.5x0.8 |
| TZ0457A | TST嘉碩 | 12 | 20 | 10ppm/10ppm/-20C~+75C | 4.0x2.5x0.8 |
| TZ0481A | TST嘉碩 | 12 | 8 | 10ppm/10ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0515A | TST嘉碩 | 12 | 16 | 30ppm/50ppm/-10C~+60C | HC49-SMD |
| TZ0635A | TST嘉碩 | 12 | 16 | 50ppm/50ppm/-10C~+60C | 6.0x3.5x1.2 |
| TZ0683A | TST嘉碩 | 12 | 12 | 10ppm/10ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0746A | TST嘉碩 | 12.288 | 18 | 30ppm/30ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0760A | TST嘉碩 | 12 | 15 | 15ppm/15ppm/-10C~+60C | 3.2x0.5x0.7 |
| TZ0760E | TST嘉碩 | 12 | 15 | 10ppm/10ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0768A | TST嘉碩 | 12.288 | 9 | 20ppm/30ppm/-20C~+70C | 4.0x2.5x0.8 |
| TZ0809A | TST嘉碩 | 12 | 20 | 10ppm/10ppm/-10C~+70C | 3.2x2.5x0.7 |
| TZ0810A | TST嘉碩 | 12 | 9 | 10+/-10ppm/10ppm/-10C~+60C | 4.0x2.5x0.8 |
| TZ0868A | TST嘉碩 | 12 | 16 | 10ppm/10ppm/-10C ~+60C | 3.2x2.5x0.7 |
| TZ0874A | TST嘉碩 | 12 | 30 | 30ppm/30ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0901A | TST嘉碩 | 12 | 12.5 | 10ppm/10ppm/-10C~+60C | 4.0x2.5x0.8 |
| TZ1050A | TST嘉碩 | 12 | 18 | 30ppm/30ppm/-10C~+70C | 6.0x3.5x1.1 |
| TZ1158A | TST嘉碩 | 12 | 20 | 30ppm/30ppm/-20C~+70C | 6.0x3.5x1.1 |
| TZ1224A | TST嘉碩 | 12 | 22 | 30pm/30ppm/-10C~+70C | 3.2x2.5x0.7 |
| TZ1228A | TST晶體 | 12.288 | 10 | 10ppm/10ppm/-20C~+70C | 5.0x3.2x1.0 |
| TZ1293A | TST嘉碩 | 12 | 20 | 20ppm/20ppm/-20C~+70C | 5.0x3.2x0.8 |
| TZ1293E | TST嘉碩 | 12 | 20 | 10ppm/10ppm/-20C~+70C | 5.0x3.2x1.0 |
| TZ1365A | TST嘉碩 | 12.8 | 12 | 10ppm/10ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ1390A | TST嘉碩 | 12 | 18 | 30ppm/30ppm/-20C~+70C | HC49-SMD |
| TZ1444A | TST嘉碩 | 12 | 10 | 10ppm/15ppm/-30C~+85C | 3.2x2.5x0.7 |
| TZ1450A | TST嘉碩 | 12 | 32 | 10ppm/10ppm/-20C~+80C | 3.2x2.5x0.7 |
| TZ1457A | TST嘉碩 | 12.8 | 10 | 10ppm/10ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ1527A | TST嘉碩 | 12.288 | 20 | 20ppm/20ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ1562A | TST嘉碩 | 12.8 | 20 | 10ppm/15ppm/-40C~+85C | 4.0x2.5x0.8 |
| TZ1631A | TST嘉碩 | 12 | 16pF | 30ppm/50ppm/-20C~+70C | HC49-SMD |
| TZ1712A | TST嘉碩 | 12 | 12 | 20ppm/10ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ1723A | TST嘉碩 | 12 | 13 | 50ppm/50ppm/-40C~+125C | 5.0x3.2x1.0 |
| TZ1732A | TST嘉碩 | 12 | 10 | 20ppm/20ppm/-30C~+85C | 5.0x3.2x1.0 |
| TZ1733A | TST嘉碩 | 12 | 20 | 30ppm/30ppm/-10C~+70C | HC49US |
| TZ1832A | TST嘉碩 | 12 | 20 | 100ppm/100ppm/-20C~+70C | 8.0x3.0 |
| TZ1901A | TST嘉碩 | 12 | 10 | 10ppm/20ppm/-20C~+70C | 2.5x2.0x0.6 |
| TZ1901C | TST嘉碩 | 12 | 10 | 20ppm/30ppm/-20C~+85C | 2.5x2.0x0.6 |
| TZ1901D | TST嘉碩 | 12 | 10 | 10ppm/30ppm/-40C~+85C | 2.5x2.0x0.6 |
| TZ1901E | TST嘉碩 | 12 | 10 | 30ppm/30ppm/-40C~+85C | 2.5x2.0x0.6 |
| TZ1908A | TST嘉碩 | 12.8 | 16pF | 15ppm/15ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ1917B | TST嘉碩 | 12.8 | 20 | 10ppm/15ppm/-40C~+85C | 3.2x2.5x0.7 |
| TZ1962A | TST嘉碩 | 12.8 | 20 | 3ppm/NA/-55C~+125C | HC43U |
