XRCHH26M000F1QD8P0|26MHz|2520mm|-30~85°C
頻率：26MHZ

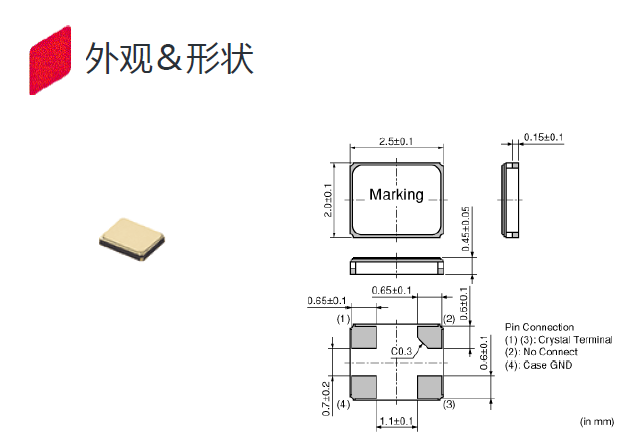

尺寸：2.5mm×2.0mm
XRCHH26M000F1QD8P0|26MHz|2520mm|-30~85°C ,XRCHH26M000F1QD8P0晶振,頻率26MHz,尺寸2520mm,工作溫度-30~85°C,數碼相機晶振,無線通訊設備晶振,超小體積貼片晶振,藍牙音響耳機晶振,電腦主板晶振,網絡終端晶振.
XRCHH26M000F1QD8P0|26MHz|2520mm|-30~85°C ,XRCHH26M000F1QD8P0晶振,頻率26MHz,尺寸2520mm,工作溫度-30~85°C,數碼相機晶振,無線通訊設備晶振,超小體積貼片晶振,藍牙音響耳機晶振,電腦主板晶振,網絡終端晶振.
XRCHH26M000F1QD8P0|26MHz|2520mm|-30~85°C
| 型號 | TAS-2520F |
| 頻率 | 26.0000MHz |
| 頻率公差 | ±10ppm max.(25±3℃) |
| 工作溫度范圍 | -30℃ to 85℃ |
| 頻率溫度特性 | ±15ppm max. |
| 頻率老化 | ±1ppm max./year |
| 清洗 | Notavailable |
| 負載電容量 | 8pF |
| 等效串聯電阻(max.) | 60Ω |
| 驅動電平(max.) | 60μW |
| 形狀 | SMD |
XRCHH26M000F1QD8P0|26MHz|2520mm|-30~85°C
| 原廠編碼 | 型號 | 頻率 | 頻率公差 | 頻率溫度特性 | 負載電容量 | 工作溫度 |
| XRCHH16M000F1QB7P0 | TAS-2520F | 16.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH20M000F1QB1P0 | TAS-2520F | 20.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH26M000F1QD8P0 | TAS-2520F | 26.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH36M000F1QA3P0 | TAS-2520F | 36.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH27M000F1QB3P0 | TAS-2520F | 27.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH28M000F1QB3P0 | TAS-2520F | 28.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH29M000F1QB3P0 | TAS-2520F | 29.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH30M000F1QB3P0 | TAS-2520F | 30.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH31M000F1QB3P0 | TAS-2520F | 31.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH32M000F1QB3P0 | TAS-2520F | 32.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH33M000F1QB3P0 | TAS-2520F | 33.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH34M000F1QB3P0 | TAS-2520F | 34.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH35M000F1QB3P0 | TAS-2520F | 35.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH42M000F1QB3P0 | TAS-2520F | 42.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH37M000F1QB3P0 | TAS-2520F | 37.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH38M000F1QB3P0 | TAS-2520F | 38.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH39M000F1QB3P0 | TAS-2520F | 39.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH40M000F1QB3P0 | TAS-2520F | 40.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH48M000F1QB3P0 | TAS-2520F | 48.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
| XRCHH52M000F1QA2P0 | TAS-2520F | 52.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 8pF | -30℃ to 85℃ |
