Silicon品牌,550CD74M2500DGR,6G光模塊晶振
頻率：74.25MHz
尺寸：7.0mm x 5.0mm
Silicon品牌,550CD74M2500DGR,6G光模塊晶振,Silicon晶振,Si550壓控晶振,VCXO晶振,550CD74M2500DGR晶振,有源晶振,石英晶體振蕩器,CMOS輸出晶振,貼片晶振,7050mm晶振,SMD晶振,頻率74.25MHz,電壓2.5V,頻率穩定性50ppm,工作溫度-40~85°C,低抖動晶振,高可靠性晶振,無鉛環保晶振,6G光模塊晶振,低抖動時鐘生成晶振,時鐘和數據恢復晶振.
訂購熱線：0755-27837162
Silicon品牌,550CD74M2500DGR,6G光模塊晶振,Silicon晶振,Si550壓控晶振,VCXO晶振,550CD74M2500DGR晶振,有源晶振,石英晶體振蕩器,CMOS輸出晶振,貼片晶振,7050mm晶振,SMD晶振,頻率74.25MHz,電壓2.5V,頻率穩定性50ppm,工作溫度-40~85°C,低抖動晶振,高可靠性晶振,無鉛環保晶振,6G光模塊晶振,低抖動時鐘生成晶振,時鐘和數據恢復晶振.

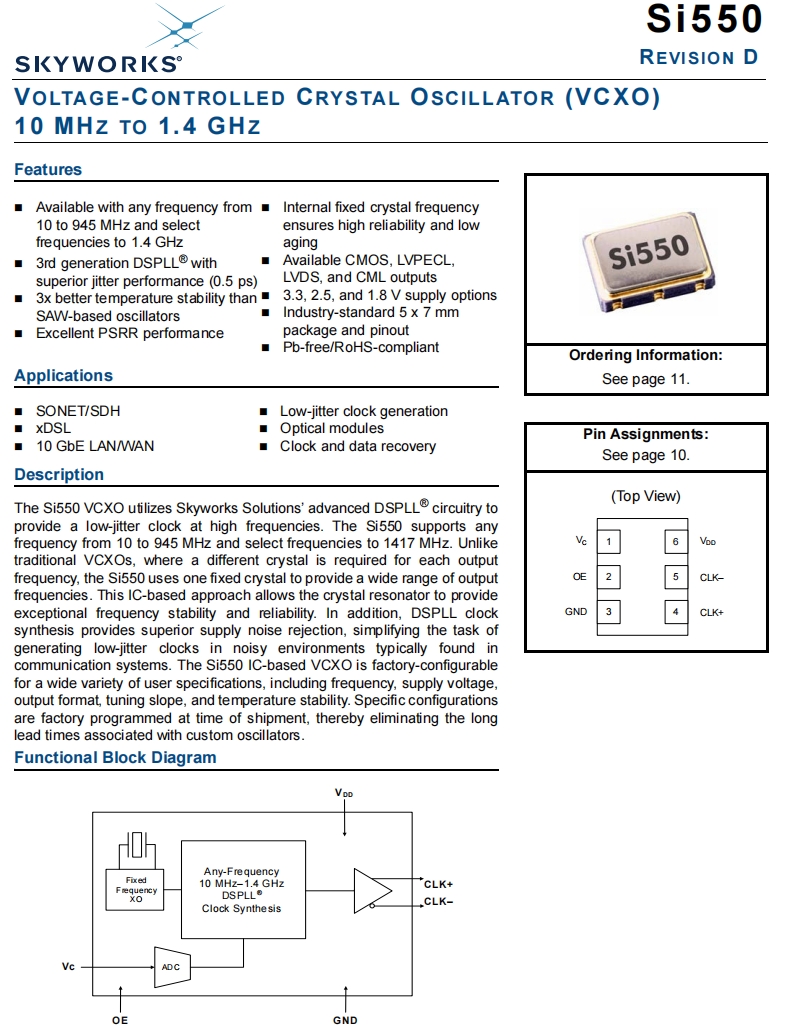

Silicon品牌,550CD74M2500DGR,6G光模塊晶振特點：
-可與任何頻率從10到945 MHz和選擇頻率到1.4 GHz
-第三代抖動性能優異的DSPLL®(0.5 ps)
-比基于saw的振蕩器有更好的溫度穩定性
-出色的PSRR性能
-內部固定晶頻，可靠性高，老化率低
-支持CMOS、LVPECL、LVDS、CML輸出
-3.3、2.5、1.8 V供電選項
-行業標準的5 × 7mm封裝和引腳
-Pb-free /通過無鉛認證
Silicon品牌,550CD74M2500DGR,6G光模塊晶振規格表
0.26ps Typ
0.26ps Typ
項目
符號
規格說明
條件
額定頻率
f_nom
74.25MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±50ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
98mA Max
CMOS
對稱性（占空比）
SYM
45%~55%
在輸出交叉點
CMOS輸出選項
VOH
0.8 x VDD Min
IOH = 32 mA
VOL
0.4V Max
IOL = 32 mA
輸入電壓
VIH
0.75×VDD Min
VIL
0.5V Max
上升下降時間
tr/tf
1ns Max
CMOS with CL = 15 pF
起始時間
t str
10ms Max
相位抖動
tpj
Kv = 33 ppm/V
12 kHz to 20 MHz (OC-48)
50 kHz to 80 MHz (OC-192)

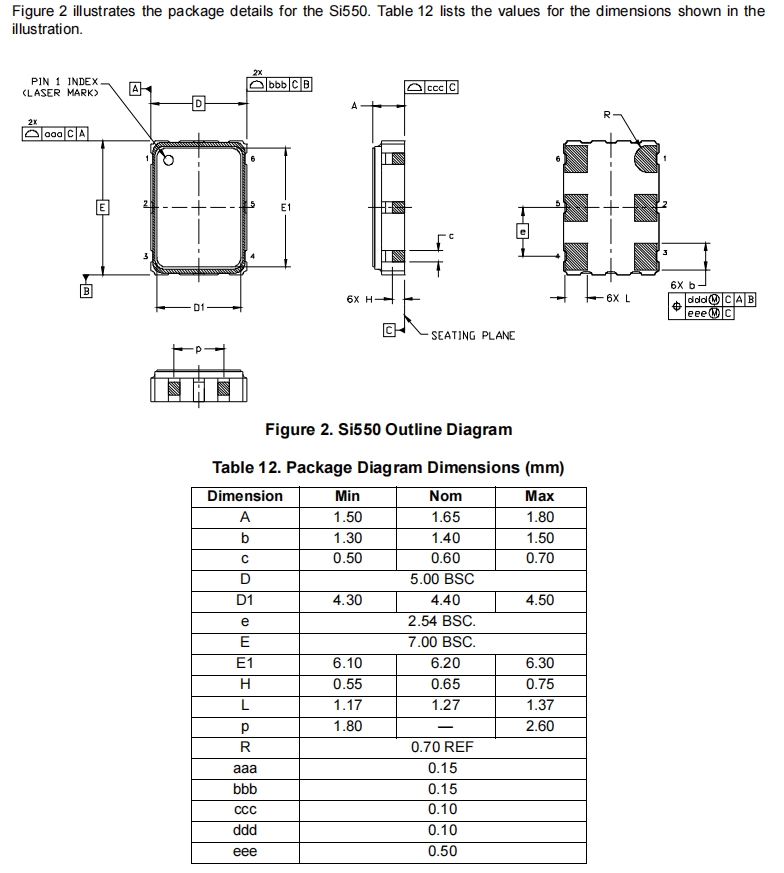

Silicon品牌,550CD74M2500DGR,6G光模塊晶振尺寸圖
