可編程有源晶振X1G005311003400專用于5G移動通訊設備

來源：金洛鑫瀏覽：- 發布日期：2022-10-14 15:35:55【大中小】

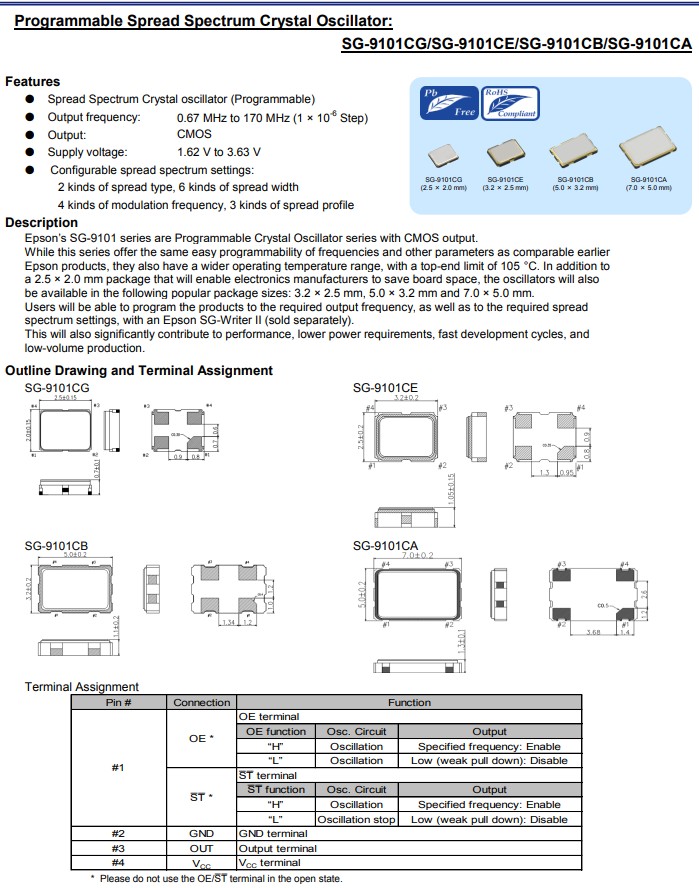

愛普生晶振SG-9101CB系列是具有CMOS輸出的可編程石英晶體振蕩器。雖然該系列提供了與早期類似的頻率和其它參數的同樣容易的可編程性Epson產品，寬工作溫度范圍-40℃至+85℃/105℃。此外這款振蕩器采用5.0x3.2mm封裝，有助于電子制造商節省電路板空間，同時還提供以下常見封裝尺寸:3.2x2.5mm、2.5x2.0mm和7.0x5.0mm四腳貼片晶振。用戶可以使用Epson SG-Writer II(單獨銷售)將產品編程為所需的輸出頻率以及所需的擴頻設置。這也將大大有助于提高性能、降低功耗要求、縮短開發周期和小批量生產。該系列被廣泛用于5G移動通訊設備，無線模塊，工業控制，消費電子，智能安防，物聯網，車載電子，光電技術及各種變頻調速設備等通訊設備。

可編程有源晶振X1G005311003400專用于5G移動通訊設備

愛普生晶振	頻率	型號	尺寸(長寬高)	輸出波	電源電壓	工作溫度
X1G005311001100	65.536000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311001200	22.996140MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311001300	14.747720MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311001400	32.959000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311001500	16.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311001600	33.025840MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311001700	32.959000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311001800	10.500000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311001900	18.432000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311002000	18.432000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311002100	18.432000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311002200	18.432000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311002300	25.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311002400	50.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311002500	27.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311002600	40.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311002700	19.660800MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311002800	25.175000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311002900	10.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311003000	10.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311003100	12.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311003200	16.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311003300	36.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311003400	26.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311003500	33.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311003600	33.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311003700	33.330000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311003800	40.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311003900	16.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311004000	25.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311004100	62.500000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311004200	33.330000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311004300	19.600000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C

X1G005311004400	26.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311004500	40.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311004600	16.666000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311004700	60.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311004800	40.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311004900	54.480000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311005000	71.901000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311005100	32.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311005200	26.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311005300	47.990000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311005400	66.660000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311005500	32.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311005600	80.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311005700	33.333300MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311005800	45.325000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311005900	16.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311006000	25.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311006100	62.500000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311006200	33.333300MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311006300	66.660000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311006400	16.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311006500	66.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311006600	12.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311006700	12.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311006800	25.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311006900	19.990800MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311007000	39.680000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311007100	25.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311007200	40.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311007300	33.330000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311007400	20.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311007500	12.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311007600	20.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311007700	20.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311007800	16.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311007900	16.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311008000	66.666667MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311008100	33.333300MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311008200	27.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311008300	20.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311008400	20.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311008500	54.480000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311008600	64.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311008700	66.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311008800	70.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311008900	70.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311009000	25.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311009100	20.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311009200	40.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311009300	65.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005311009400	24.500000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311009500	25.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311009600	25.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005311009700	56.000000MHz	SG-9101CB	5.00x3.20x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C

可編程有源晶振X1G005311003400專用于5G移動通訊設備

可編程晶振，很多人依然陌生的一頭霧水，其實在各種精密的電子儀器上，可編程晶振已得到廣泛的應用了。在普及可編程晶振的時候，也有人對這款‘新型產品’有不少的知識盲區，例如可編程晶振無源和有源晶振都會燒錄嗎？可編程現在被普及且廣泛使用的只有有源晶振，因為可編程晶振可定制所以支持封裝標準也較多，從國際封裝QFN封裝到7050、5032、3225、2520甚至更小的2016，客戶都可以按需選擇，同理也支持1.8V、 2.5V、2.8V、3.0V、3.3V等多種工作電壓匹配。還有客戶會把可編程晶振和溫補晶振混淆，其實可編程晶振內部集成了溫度補償電路，本身也具備溫度自動補償功能。
