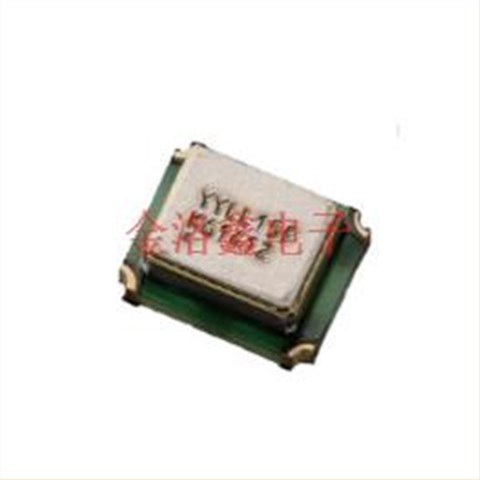

KT2520K26000CGU30T,KYOCERA京瓷熱敏晶振,2520石英晶體振蕩器

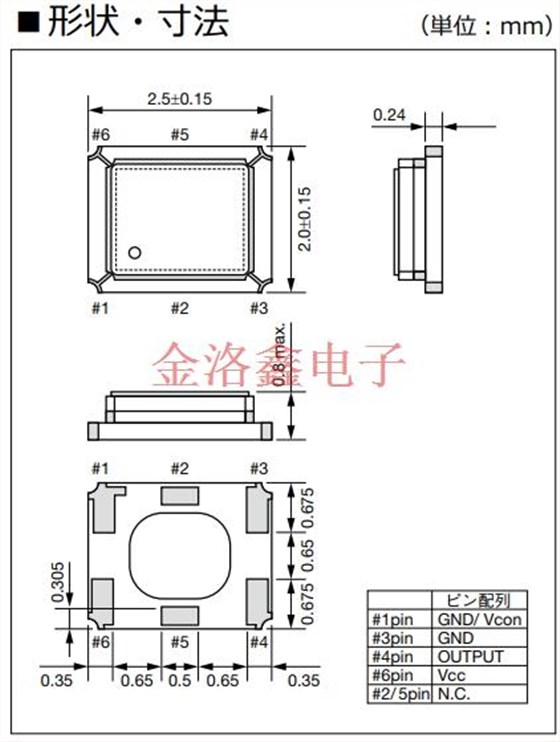

KT2520K26000CGU30T的型號蘊含著豐富的規格信息:"2520"明確標示了其封裝尺寸為2.5mm×2.0mm,屬于2520系列石英晶體振蕩器的標準規格。這一尺寸相比更小的2016規格略大,但仍保持了小型化的優勢,能夠適配于對空間有一定要求但無需極致緊湊設計的電子設備,如小型基站,工業傳感器模塊,汽車電子控制單元等.
作為表面貼裝型器件,KT2520K26000CGU30T采用標準化的貼片設計,可與其他表面貼裝元器件兼容自動化生產線,實現高效批量焊接,不僅提升了生產效率,還能通過減少人工干預降低誤差,確保產品性能的一致性。其標稱頻率為26MHz,這一頻率在通信設備的射頻模塊,數據處理單元中應用廣泛,能夠?yàn)樾盘?hào)的調制解調,數據傳輸提供穩定的時鐘基準.
作為表面貼裝型器件,KT2520K26000CGU30T采用標準化的貼片設計,可與其他表面貼裝元器件兼容自動化生產線,實現高效批量焊接,不僅提升了生產效率,還能通過減少人工干預降低誤差,確保產品性能的一致性。其標稱頻率為26MHz,這一頻率在通信設備的射頻模塊,數據處理單元中應用廣泛,能夠?yàn)樾盘?hào)的調制解調,數據傳輸提供穩定的時鐘基準.
KT2520K26000CGU30T,KYOCERA京瓷熱敏晶振,2520石英晶體振蕩器
| 原廠型號Original model ： | KT2520K26000CGU30T | 品牌 brand ： | Cardinal晶振 |
| Manufacturer品牌 | 京瓷晶振 | Operating Temperature溫度 | -10 ~ +75°C |
| Series型號 | KT2520K | Current - Supply (Max) | - |
| Type 類型 | TCXO溫補晶振 | Package Height高度 | 0.8mm |
| Frequency 頻率 | 26M | Termination腳位 | 6 pads |
| 輸出方式Output： | 削峰正弦波 | Package Type封裝類型 | 6-SMD |
| Voltage - Supply電壓 | 3.0V | Packaging包裝 | Tape and Reel |
| Frequency Stability頻率穩定度 | ±1.5ppm | 安裝方式Installation ： | Surface mount |
| Size / Dimension 尺寸 | 2520mm | 最小包裝數 MPQ ： | 3000 |
KT2520K26000CGU30T,KYOCERA京瓷熱敏晶振,2520石英晶體振蕩器
KT2520K26000CGU30T,KYOCERA京瓷熱敏晶振,2520石英晶體振蕩器
| KC2016K1.50000C10E00 | 2.0 x 1.6mm | 0.8 | 1.5 | -10 | 70 | ± 50 | CMOS |
| KC2016K1.50000C16E00 | 2.0 x 1.6mm | 0.8 | 1.5 | -40 | 105 | ± 50 | CMOS |
| KC2016K1.50000C1GE00 | 2.0 x 1.6mm | 0.8 | 1.5 | -40 | 85 | ± 50 | CMOS |
| KC2016K1.50000C1SE00 | 2.0 x 1.6mm | 0.8 | 1.5 | -10 | 70 | ± 30 | CMOS |
| KC2016K1.50000C1UE00 | 2.0 x 1.6mm | 0.8 | 1.5 | -10 | 70 | ± 25 | CMOS |
| KC2016K1.84320C10E00 | 2.0 x 1.6mm | 0.8 | 1.8432 | -10 | 70 | ± 50 | CMOS |
| KC2016K1.84320C16E00 | 2.0 x 1.6mm | 0.8 | 1.8432 | -40 | 105 | ± 50 | CMOS |
| KC2016K1.84320C1GE00 | 2.0 x 1.6mm | 0.8 | 1.8432 | -40 | 85 | ± 50 | CMOS |
| KC2016K1.84320C1SE00 | 2.0 x 1.6mm | 0.8 | 1.8432 | -10 | 70 | ± 30 | CMOS |
| KC2016K1.84320C1UE00 | 2.0 x 1.6mm | 0.8 | 1.8432 | -10 | 70 | ± 25 | CMOS |
| KC2016K10.0000C10E00 | 2.0 x 1.6mm | 0.8 | 10 | -10 | 70 | ± 50 | CMOS |
| KC2016K10.0000C16E00 | 2.0 x 1.6mm | 0.8 | 10 | -40 | 105 | ± 50 | CMOS |
| KC2016K10.0000C1GE00 | 2.0 x 1.6mm | 0.8 | 10 | -40 | 85 | ± 50 | CMOS |
| KC2016K10.0000C1SE00 | 2.0 x 1.6mm | 0.8 | 10 | -10 | 70 | ± 30 | CMOS |
| KC2016K10.0000C1UE00 | 2.0 x 1.6mm | 0.8 | 10 | -10 | 70 | ± 25 | CMOS |
| KC2016K10.2400C10E00 | 2.0 x 1.6mm | 0.8 | 10.24 | -10 | 70 | ± 50 | CMOS |
| KC2016K10.2400C16E00 | 2.0 x 1.6mm | 0.8 | 10.24 | -40 | 105 | ± 50 | CMOS |
| KC2016K10.2400C1GE00 | 2.0 x 1.6mm | 0.8 | 10.24 | -40 | 85 | ± 50 | CMOS |
| KC2016K10.2400C1SE00 | 2.0 x 1.6mm | 0.8 | 10.24 | -10 | 70 | ± 30 | CMOS |
| KC2016K10.2400C1UE00 | 2.0 x 1.6mm | 0.8 | 10.24 | -10 | 70 | ± 25 | CMOS |
| KC2016K10.5554C10E00 | 2.0 x 1.6mm | 0.8 | 10.5554 | -10 | 70 | ± 50 | CMOS |
| KC2016K10.5554C16E00 | 2.0 x 1.6mm | 0.8 | 10.5554 | -40 | 105 | ± 50 | CMOS |
| KC2016K10.5554C1GE00 | 2.0 x 1.6mm | 0.8 | 10.5554 | -40 | 85 | ± 50 | CMOS |
| KC2016K10.5554C1SE00 | 2.0 x 1.6mm | 0.8 | 10.5554 | -10 | 70 | ± 30 | CMOS |
| KC2016K10.5554C1UE00 | 2.0 x 1.6mm | 0.8 | 10.5554 | -10 | 70 | ± 25 | CMOS |
| KC2016K100.000C10E00 | 2.0 x 1.6mm | 0.8 | 100 | -10 | 70 | ± 50 | CMOS |
| KC2016K100.000C16E00 | 2.0 x 1.6mm | 0.8 | 100 | -40 | 105 | ± 50 | CMOS |
| KC2016K100.000C1GE00 | 2.0 x 1.6mm | 0.8 | 100 | -40 | 85 | ± 50 | CMOS |
| KC2016K100.000C1SE00 | 2.0 x 1.6mm | 0.8 | 100 | -10 | 70 | ± 30 | CMOS |
| KC2016K100.000C1UE00 | 2.0 x 1.6mm | 0.8 | 100 | -10 | 70 | ± 25 | CMOS |
| KC2016K11.2896C10E00 | 2.0 x 1.6mm | 0.8 | 11.2896 | -10 | 70 | ± 50 | CMOS |
| KC2016K11.2896C16E00 | 2.0 x 1.6mm | 0.8 | 11.2896 | -40 | 105 | ± 50 | CMOS |
| KC2016K11.2896C1GE00 | 2.0 x 1.6mm | 0.8 | 11.2896 | -40 | 85 | ± 50 | CMOS |
| KC2016K11.2896C1SE00 | 2.0 x 1.6mm | 0.8 | 11.2896 | -10 | 70 | ± 30 | CMOS |
| KC2016K11.2896C1UE00 | 2.0 x 1.6mm | 0.8 | 11.2896 | -10 | 70 | ± 25 | CMOS |
| KC2016K12.0000C10E00 | 2.0 x 1.6mm | 0.8 | 12 | -10 | 70 | ± 50 | CMOS |
| KC2016K12.0000C16E00 | 2.0 x 1.6mm | 0.8 | 12 | -40 | 105 | ± 50 | CMOS |
| KC2016K12.0000C1GE00 | 2.0 x 1.6mm | 0.8 | 12 | -40 | 85 | ± 50 | CMOS |
| KC2016K12.0000C1SE00 | 2.0 x 1.6mm | 0.8 | 12 | -10 | 70 | ± 30 | CMOS |
| KC2016K12.0000C1UE00 | 2.0 x 1.6mm | 0.8 | 12 | -10 | 70 | ± 25 | CMOS |
| KC2016K12.2880C10E00 | 2.0 x 1.6mm | 0.8 | 12.288 | -10 | 70 | ± 50 | CMOS |
| KC2016K12.2880C16E00 | 2.0 x 1.6mm | 0.8 | 12.288 | -40 | 105 | ± 50 | CMOS |
| KC2016K12.2880C1GE00 | 2.0 x 1.6mm | 0.8 | 12.288 | -40 | 85 | ± 50 | CMOS |
| KC2016K12.2880C1SE00 | 2.0 x 1.6mm | 0.8 | 12.288 | -10 | 70 | ± 30 | CMOS |
| KC2016K12.2880C1UE00 | 2.0 x 1.6mm | 0.8 | 12.288 | -10 | 70 | ± 25 | CMOS |
| KC2016K12.4560C10E00 | 2.0 x 1.6mm | 0.8 | 12.456 | -10 | 70 | ± 50 | CMOS |
| KC2016K12.4560C16E00 | 2.0 x 1.6mm | 0.8 | 12.456 | -40 | 105 | ± 50 | CMOS |
| KC2016K12.4560C1GE00 | 2.0 x 1.6mm | 0.8 | 12.456 | -40 | 85 | ± 50 | CMOS |
| KC2016K12.4560C1SE00 | 2.0 x 1.6mm | 0.8 | 12.456 | -10 | 70 | ± 30 | CMOS |
| KC2016K12.4560C1UE00 | 2.0 x 1.6mm | 0.8 | 12.456 | -10 | 70 | ± 25 | CMOS |
| KC2016K12.5000C10E00 | 2.0 x 1.6mm | 0.8 | 12.5 | -10 | 70 | ± 50 | CMOS |
| KC2016K12.5000C16E00 | 2.0 x 1.6mm | 0.8 | 12.5 | -40 | 105 | ± 50 | CMOS |
| KC2016K12.5000C1GE00 | 2.0 x 1.6mm | 0.8 | 12.5 | -40 | 85 | ± 50 | CMOS |
| KC2016K12.5000C1SE00 | 2.0 x 1.6mm | 0.8 | 12.5 | -10 | 70 | ± 30 | CMOS |
| KC2016K12.5000C1UE00 | 2.0 x 1.6mm | 0.8 | 12.5 | -10 | 70 | ± 25 | CMOS |
| KC2016K125.000C10E00 | 2.0 x 1.6mm | 0.8 | 125 | -10 | 70 | ± 50 | CMOS |
| KC2016K125.000C16E00 | 2.0 x 1.6mm | 0.8 | 125 | -40 | 105 | ± 50 | CMOS |
| KC2016K125.000C1GE00 | 2.0 x 1.6mm | 0.8 | 125 | -40 | 85 | ± 50 | CMOS |
| KC2016K125.000C1SE00 | 2.0 x 1.6mm | 0.8 | 125 | -10 | 70 | ± 30 | CMOS |
| KC2016K125.000C1UE00 | 2.0 x 1.6mm | 0.8 | 125 | -10 | 70 | ± 25 | CMOS |
