ECS-184-18-1X|HC-49UX晶振|ECS無源 晶振|18.432MHz
頻率：18.432MHZ
尺寸：11.35×13.46mm
ECS-184-18-1X|HC-49UX晶振|ECS無源 晶振|18.432MHz,ECS-184-18-1X晶振,HC-49UX晶振,ECS無源晶振,頻率18.432MHz,兩腳插件晶振,石英晶體諧振器,儲存卡晶振,家用電視機頂盒晶振,家電影音系統晶振,攝像頭晶振,數字水表晶振,ECS-480-S-1X,ECS-36-18-1X,ECS-240-S-1X,ECS-196.6-20-1X.
ECS-184-18-1X|HC-49UX晶振|ECS無源 晶振|18.432MHz,ECS-184-18-1X晶振,HC-49UX晶振,ECS無源晶振,頻率18.432MHz,兩腳插件晶振,石英晶體諧振器,儲存卡晶振,家用電視機頂盒晶振,家電影音系統晶振,攝像頭晶振,數字水表晶振.

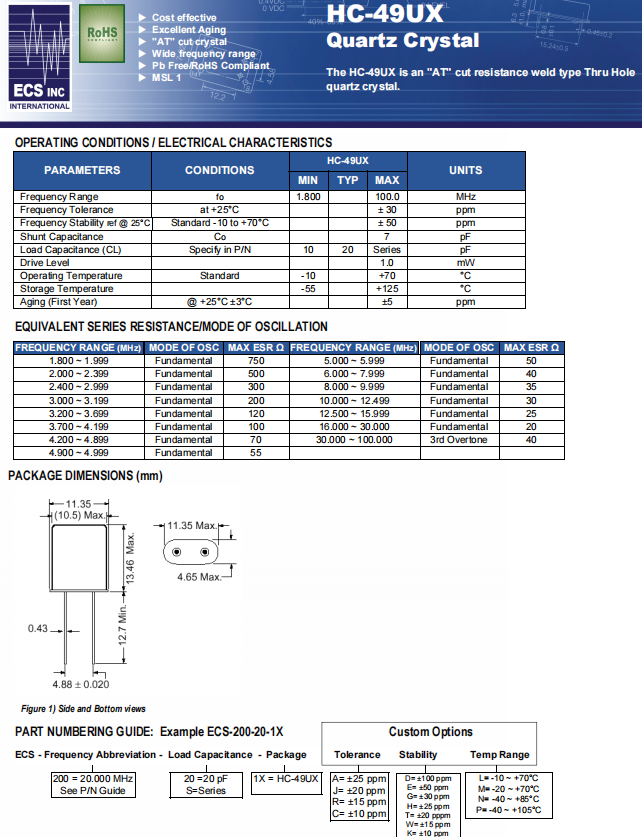

ECS-184-18-1X|HC-49UX晶振|ECS無源 晶振|18.432MHz 參數表
參數
條件
HC-49UX
頻率
18.432MHz
頻率公差
at +25°C
± 30PPM
頻率穩定性
-40°C to +85°C
± 50PPM
負載電容
Specify in P/N
18pF
激勵功率
500 μW Max
工作溫度
-10°C to +70°C
保存溫度
-55°C to +125°C
并聯電容
7.0 pF
老化
@ +25°C ±3°C
±5ppm

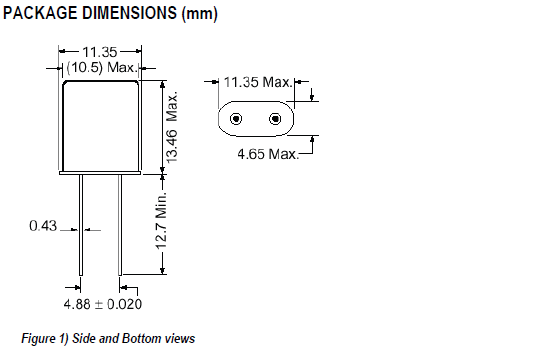

ECS-184-18-1X|HC-49UX晶振|ECS無源 晶振|18.432MHz 尺寸圖
| ECS原廠編碼 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 | 工作溫度 |
| ECS-100-S-1X | HC-49UX | 10MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-110.5-20-1X | HC-49UX | 11.0592MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-110.5-32-1X | HC-49UX | 11.0592MHz | ±50ppm | ±30ppm | 32pF | -10°C ~ 70°C |
| ECS-110.5-S-1X | HC-49UX | 11.0592MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-110-S-1X | HC-49UX | 11MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-120-32-1X | HC-49UX | 12MHz | ±50ppm | ±30ppm | 32pF | -10°C ~ 70°C |
| ECS-120-S-1X | HC-49UX | 12MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-122.8-20-1X | HC-49UX | 12.288MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-122.8-S-1X | HC-49UX | 12.288MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-143-S-1X | HC-49UX | 14.31818MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-147.4-20-1X | HC-49UX | 14.7456MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-147.4-S-1X | HC-49UX | 14.7456MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-150-S-1X | HC-49UX | 15MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-160-20-1X | HC-49UX | 16MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-160-S-1X | HC-49UX | 16MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-180-20-1X | HC-49UX | 18MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-18-13-1X | HC-49UX | 1.8432MHz | ±50ppm | ±30ppm | 13pF | -10°C ~ 70°C |
| ECS-184-18-1X | HC-49UX | 18.432MHz | ±50ppm | ±30ppm | 18pF | -10°C ~ 70°C |
| ECS-184-20-1X | HC-49UX | 18.432MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-184-S-1X | HC-49UX | 18.432MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-18-S-1X | HC-49UX | 1.8432MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-196.6-20-1X | HC-49UX | 19.6608MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-196.6-S-1X | HC-49UX | 19.6608MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-20.48-12-1X | HC-49UX | 2.048MHz | ±50ppm | ±30ppm | 12pF | -10°C ~ 70°C |
| ECS-200-20-1X | HC-49UX | 20MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-200-S-1X | HC-49UX | 20MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-20-20-1X | HC-49UX | 2MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-20-S-1X | HC-49UX | 2MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-221-S-1X | HC-49UX | 22.1184MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-240-20-1X | HC-49UX | 24MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-240-S-1X | HC-49UX | 24MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-24-32-1X | HC-49UX | 2.4576MHz | ±50ppm | ±30ppm | 32pF | -10°C ~ 70°C |
| ECS-25-S-1X | HC-49UX | 2.5MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-30-S-1X | HC-49UX | 3MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-32-17-1X | HC-49UX | 3.2768MHz | ±50ppm | ±30ppm | 17pF | -10°C ~ 70°C |
| ECS-35-17-1X | HC-49UX | 3.579545MHz | ±50ppm | ±30ppm | 17pF | -10°C ~ 70°C |
| ECS-35-S-1X | HC-49UX | 3.579545MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-36-18-1X | HC-49UX | 3.6864MHz | ±50ppm | ±30ppm | 18pF | -10°C ~ 70°C |
| ECS-36-S-1X | HC-49UX | 3.6864MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-39-17-1X | HC-49UX | 3.93216MHz | ±50ppm | ±30ppm | 17pF | -10°C ~ 70°C |
| ECS-40.3-20-1X | HC-49UX | 4.032MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-40.3-S-1X | HC-49UX | 4.032MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-40-20-1X | HC-49UX | 4MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-40-S-1X | HC-49UX | 4MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-41-20-1X | HC-49UX | 4.096MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-42-12-1X | HC-49UX | 4.194304MHz | ±50ppm | ±30ppm | 12pF | -10°C ~ 70°C |
| ECS-44-20-1X | HC-49UX | 4.433618MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-480-S-1X | HC-49UX | 48MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-49-20-1X | HC-49UX | 4.9152MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-49-S-1X | HC-49UX | 4.9152MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-50-20-1X | HC-49UX | 5MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-50-S-1X | HC-49UX | 5MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-51-20-1X | HC-49UX | 5.068MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-51-S-1X | HC-49UX | 5.068MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-60-32-1X | HC-49UX | 6MHz | ±50ppm | ±30ppm | 32pF | -10°C ~ 70°C |
| ECS-60-S-1X | HC-49UX | 6MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-65-12-1X | HC-49UX | 6.5536MHz | ±50ppm | ±30ppm | 12pF | -10°C ~ 70°C |
| ECS-73-20-1X | HC-49UX | 7.3728MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-73-S-1X | HC-49UX | 7.3728MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-80-18-1X | HC-49UX | 8MHz | ±50ppm | ±30ppm | 18pF | -10°C ~ 70°C |
| ECS-80-20-1X | HC-49UX | 8MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-80-32-1X | HC-49UX | 8MHz | ±50ppm | ±30ppm | 32pF | -10°C ~ 70°C |
| ECS-80-S-1X | HC-49UX | 8MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-92.1-20-1X | HC-49UX | 9.216MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-92.1-S-1X | HC-49UX | 9.216MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-98.3-20-1X | HC-49UX | 9.8304MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-98.3-S-1X | HC-49UX | 9.8304MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
