當前位置：首頁 » 貼片晶振 » QTCC576LWD9-156.250MHZ,7050差分晶振,156.25M高頻晶振

prevnext

QTCC576LWD9-156.250MHZ,7050差分晶振,156.25M高頻晶振

頻率：156.25M

尺寸：7050mm

QTCC576LWD9-156.250MHZ,7050差分晶振,156.25M高頻晶振,在技術細節上兼顧功能性與實用性:7050封裝內部采用密封陶瓷結構,能有效隔絕外界濕度,粉塵等環境干擾,同時提升器件抗振動,抗沖擊能力;差分輸出接口支持100Ω標準差分阻抗匹配,可通過外部電阻微調,適配不同傳輸距離的應用場景.

訂購熱線：0755-27837162

JLX-1

QTCC576LWD9-156.250MHZ,7050差分晶振,156.25M高頻晶振

QTCC576LWD9-156.250MHZ晶振針對高頻數據傳輸場景專項優化:在5G毫米波基站中,156.25M高頻信號可支撐高速數據調制解調的時序同步,保障信號傳輸速率與穩定性;在數據中心交換機中,差分輸出特性能確保多端口數據交互時的時鐘一致性,避免數據傳輸延遲或丟失;此外,還可應用于高端測試儀器(如示波器,信號發生器),AI服務器系統晶振等設備,為其高頻數據處理,精準信號檢測功能提供可靠的時序保障,同時7050封裝也能適配設備小型化設計需求.

JLX-2

QTCC576LWD9-156.250MHZ,7050差分晶振,156.25M高頻晶振

原廠型號 Originalmodel：	QTCC576LWD9-156.250MHZ	品牌brand：	Q-TECH品牌
Manufacturer品牌	Q-TECH品牌	OperatingTemperature溫度	-55~125度
Series型號	QTCC576L	Current-Supply(Max)	-
Type類型	XO	PackageHeight高度	1.5mm
Frequency頻率	156.25M	Termination 腳位	6-pad
輸出方式 Output：	LVDS輸出晶振	PackageType 封裝類型	6-Smd
Voltage-Supply電壓	3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	50PPM	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	7050mm	最小包裝數MPQ：	1000

JLX-3

QTCC576LWD9-156.250MHZ,7050差分晶振,156.25M高頻晶振

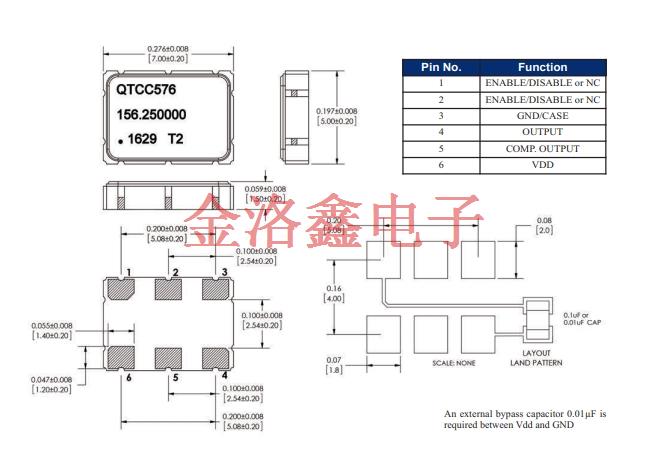

QTCC576-

JLXNR-4

QTCC576LWD9-156.250MHZ,7050差分晶振,156.25M高頻晶振

NI-10M-3510	Taitien	NI-10M-3500	OCXO	10 MHz	CMOS	5V	±0.2ppb
NI-10M-3560	Taitien	NI-10M-3500	OCXO	10 MHz	CMOS	5V	±0.1ppb
OXETECJANF-40.000000	Taitien	OX	XO	40 MHz	CMOS	2.8V ~ 3.3V	±30ppm
OXETGCJANF-25.000000	Taitien	OX	XO	25 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGLJANF-24.576000	Taitien	OX	XO	24.576 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETHEJANF-12.000000	Taitien	OX	XO	12 MHz	CMOS	2.8V ~ 3.3V	±100ppm
OXETGCJANF-36.000000	Taitien	OX	XO	36 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGLJANF-40.000000	Taitien	OX	XO	40 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGCJANF-16.000000	Taitien	OX	XO	16 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-24.576000	Taitien	OX	XO	24.576 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-27.000000	Taitien	OX	XO	27 MHz	CMOS	3.3V	±50ppm
OXETGLJANF-16.000000	Taitien	OX	XO	16 MHz	CMOS	3.3V	±50ppm
OXKTGLJANF-19.200000	Taitien	OX	XO	19.2 MHz	CMOS	1.8V	±50ppm
OXKTGLJANF-26.000000	Taitien	OX	XO	26 MHz	CMOS	1.8V	±50ppm
OXETGCJANF-50.000000	Taitien	OX	XO	50 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-54.000000	Taitien	OX	XO	54 MHz	CMOS	3.3V	±50ppm
OXETGLJANF-27.000000	Taitien	OX	XO	27 MHz	CMOS	3.3V	±50ppm
OXKTGLKANF-26.000000	Taitien	OX	XO	26 MHz	CMOS	1.8V	±50ppm
OCETDCJTNF-66.000000MHZ	Taitien	OC	XO	66 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXETECJANF-27.000000	Taitien	OX	XO	27 MHz	CMOS	2.8V ~ 3.3V	±30ppm
OXETGJJANF-7.680000	Taitien	OX	XO	7.68 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OYETCCJANF-12.288000	Taitien	OY	XO	12.288 MHz	CMOS	2.8V ~ 3.3V	±20ppm
OXETGLJANF-38.880000	Taitien	OX	XO	38.88 MHz	CMOS	3.3V	±50ppm
OCETDCKANF-12.800000	Taitien	OC	XO	12.8 MHz	CMOS	3.3V	±25ppm
OCETECJANF-25.000000	Taitien	OC	XO	25 MHz	CMOS	3.3V	±30ppm
OCETCCJANF-12.000000	Taitien	OC	XO	12 MHz	CMOS	3.3V	±20ppm
OCETCCJANF-25.000000	Taitien	OC	XO	25 MHz	CMOS	3.3V	±20ppm
OCETDCKTNF-50.000000	Taitien	OC	XO	50 MHz	CMOS	3.3V	±25ppm
OCETDLJANF-2.048000	Taitien	OC	XO	2.048 MHz	CMOS	3.3V	±25ppm
OCETELJANF-8.000000	Taitien	OC	XO	8 MHz	CMOS	3.3V	±30ppm
OCETGCJANF-12.000000	Taitien	OC	XO	12 MHz	CMOS	3.3V	±50ppm
OCETGCJANF-24.576000	Taitien	OC	XO	24.576 MHz	CMOS	3.3V	±50ppm
OCETGCJANF-4.000000	Taitien	OC	XO	4 MHz	CMOS	3.3V	±50ppm
OCETGCJTNF-100.000000	Taitien	OC	XO	100 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-50.000000	Taitien	OC	XO	50 MHz	CMOS	3.3V	±50ppm
OCETGLKANF-20.000000	Taitien	OC	XO	20 MHz	CMOS	3.3V	±50ppm
OCETGLKANF-25.000000	Taitien	OC	XO	25 MHz	CMOS	3.3V	±50ppm
OCETHCJTNF-100.000000	Taitien	OC	XO	100 MHz	CMOS	1.8V	±100ppm
OCKTGLJANF-20.000000	Taitien	OC	XO	20 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-30.000000	Taitien	OC	XO	30 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-12.000000	Taitien	OC	XO	12 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-31.250000	Taitien	OC	XO	31.25 MHz	CMOS	1.8V	±50ppm
OCETDCJANF-12.000000	Taitien	OC	XO	12 MHz	CMOS	3.3V	±25ppm
OCETDCJTNF-50.000000	Taitien	OC	XO	50 MHz	CMOS	3.3V	±25ppm
OCETGCJANF-33.333000	Taitien	OC	XO	33.333 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-66.667000	Taitien	OC	XO	66.667 MHz	CMOS	3.3V	±50ppm
OCETGLJANF-27.000000	Taitien	OC	XO	27 MHz	CMOS	3.3V	±50ppm
OCETGLJANF-33.333000	Taitien	OC	XO	33.333 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-66.000000	Taitien	OC	XO	66 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-80.000000	Taitien	OC	XO	80 MHz	CMOS	3.3V	±50ppm
OCJTDCJANF-25.000000	Taitien	OC	XO	25 MHz	CMOS	2.5V	±25ppm
OCKTGLJANF-24.000000	Taitien	OC	XO	24 MHz	CMOS	1.8V	±50ppm
OXETGLJANF-12.000000	Taitien	OX	XO	12 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETDLJANF-8.704000	Taitien	OX	XO	8.704 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXKTGCJANF-37.125000	Taitien	OX	XO	37.125 MHz	CMOS	1.8V	±50ppm
OXETCLJANF-26.000000	Taitien	OX	XO	26 MHz	CMOS	2.8V ~ 3.3V	±20ppm
OXETDLJANF-25.000000	Taitien	OX	XO	25 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXETGLJANF-48.000000	Taitien	OX	XO	48 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXJTDLJANF-25.000000	Taitien	OX	XO	25 MHz	CMOS	2.5V	±25ppm
OXJTGLJANF-25.000000	Taitien	OX	XO	25 MHz	CMOS	2.5V	±50ppm
