TWEAALSANF-10.000000,TW型高精度晶振,蜂窩網絡晶振,5G基站晶振

頻率：10 MHz

尺寸：5.00mm x 3.20mm

TWEAALSANF-10.000000,TW型高精度晶振,蜂窩網絡晶振,5G基站晶振的核心優勢在于TW型高精度技術,通過特殊的晶體切割工藝與溫補控制方案,可實時補償環境溫度,電源電壓波動對頻率的影響,確保在5G基站復雜運行環境中,頻率偏差始終控制在極小范圍.10.000000MHz頻率信號為基站的時間同步協議(如PTP)提供精準支撐,避免因時鐘偏差導致的網絡時延,掉話等問題,同時兼容多頻段蜂窩電話設備晶振需求,適配不同運營商的基站部署場景.

訂購熱線：0755-27837162

TWEAALSANF-10.000000,TW型高精度晶振,蜂窩網絡晶振,5G基站晶振

臺產晶振針對蜂窩網絡對時鐘同步的嚴苛要求,TWEAALSANF-10.000000晶振憑借TW型高精度技術,實現極低相位噪聲(典型值-150dBc/Hz@1kHz),減少信號傳輸過程中的干擾與失真,保障4G/5G蜂窩網絡的語音通話清晰度與數據傳輸速率.10.000000MHz標準頻率可直接接入基站基帶單元(BBU)與射頻單元(RRU),無需復雜信號轉換,適配主流基站設備廠商的硬件設計,為蜂窩網絡基礎設施提供高可靠時鐘解決方案.

JLX-2

TWEAALSANF-10.000000,TW型高精度晶振,蜂窩網絡晶振,5G基站晶振

原廠型號 Originalmodel：	TWEAALSANF-10.000000	品牌brand：	Taitien
Manufacturer品牌	Taitien	OperatingTemperature溫度	-40°C ~ 85°C
Series型號	TW高性能晶體振蕩器	Current-Supply(Max)	3.5mA
Type類型	VCTCXO	PackageHeight高度	1.65mm
Frequency頻率	10 MHz	Termination 腳位	4pad
輸出方式 Output：	Clipped Sine Wave	PackageType 封裝類型	4-SMD
Voltage-Supply電壓	3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±500ppb	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	5.00mm x 3.20mm	最小包裝數MPQ：	1000

JLX-3

TWEAALSANF-10.000000,TW型高精度晶振,蜂窩網絡晶振,5G基站晶振

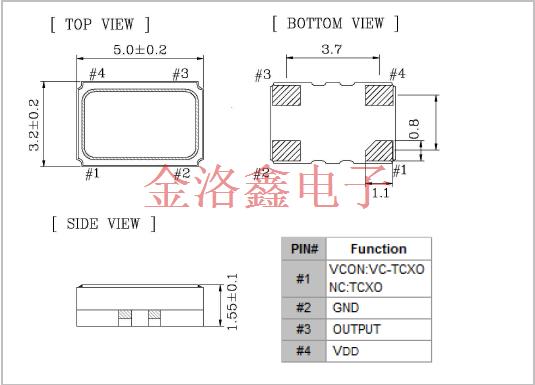

TW 5032

JLXNR-4

TWEAALSANF-10.000000,TW型高精度晶振,蜂窩網絡晶振,5G基站晶振

OCETGCJTNF-48.000000	Taitien	OC	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
OXETDCJANF-0.032768	Taitien	OX	XO (Standard)	32.768 kHz	CMOS	3.3V	±25ppm	-20°C ~ 70°C
OCETDLJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
TZKTADSANF-26.000000	Taitien	TZ	TCXO	26 MHz	Clipped Sine Wave	1.8V	±500ppb	-30°C ~ 85°C
TXEABLSANF-24.000000	Taitien	TX	VCTCXO	24 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEABLSANF-26.000000	Taitien	TX	VCTCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXKTPCSANF-32.000000	Taitien	TX	TCXO	32 MHz	Clipped Sine Wave	1.8V	±1.5ppm	-20°C ~ 70°C
TXEAADSANF-20.000000	Taitien	TX	VCTCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-30°C ~ 85°C
TXETALSANF-10.000000	Taitien	TX	TCXO	10 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-40°C ~ 85°C
TYETBCSANF-32.000000	Taitien	TY	TCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-20°C ~ 70°C
TYETBLSANF-40.000000	Taitien	TY	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TYEAPLSANF-40.000000	Taitien	TY	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-40°C ~ 85°C
TYETACSANF-26.000000	Taitien	TY	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TYEAACSANF-38.400000	Taitien	TY	VCTCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
VLCUWCWTNF-100.000000	Taitien	VLCU	VCXO	100 MHz	Sine Wave	5V	±35ppm	-20°C ~ 70°C
TSEAALJANF-10.000000	Taitien	TS	VCTCXO	10 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
TWETALJANF-40.000000	Taitien	TW	TCXO	40 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
TWEAKLJANF-20.000000	Taitien	TW	VCTCXO	20 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTETKLJANF-10.000000	Taitien	TT	TCXO	10 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTEAKLJANF-10.000000	Taitien	TT	VCTCXO	10 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTETKLSANF-10.000000	Taitien	TT	TCXO	10 MHz	Clipped Sine Wave	3.3V	±280ppb	-40°C ~ 85°C
TSEATLJANF-10.000000	Taitien	TS	VCTCXO	10 MHz	CMOS	3.3V	±4.6ppm	-40°C ~ 85°C
TWETMCJANF-10.000000	Taitien	TW	TCXO	10 MHz	CMOS	3.3V	±100ppb	-20°C ~ 70°C
TTEAALJANF-50.000000	Taitien	TT	VCTCXO	50 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
NNENCLJNNF-10.000000	Taitien	NN	OCXO	10 MHz	CMOS	3.3V	±20ppb	-40°C ~ 85°C
NI-10M-2400	Taitien	NI-10M-2400	OCXO	10 MHz	LVTTL	5V	±3ppb	-30°C ~ 70°C
NI-10M-2403	Taitien	NI-10M-2400	OCXO	10 MHz	LVTTL	5V	±3ppb	-40°C ~ 85°C
NI-10M-2503	Taitien	NI-10M-2500	OCXO	10 MHz	Sine Wave	5V	±3ppb	-40°C ~ 85°C
NI-100M-2900	Taitien	NI-100M-2900	OCXO	100 MHz	Sine Wave	12V	±50ppb	-40°C ~ 85°C
NA-100M-6822	Taitien	NA-100M-6800	OCXO	100 MHz	Sine Wave	12V	±100ppb	-40°C ~ 85°C
OCKTGLJANF-0.032768	Taitien	OC	XO (Standard)	32.768 kHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
OCETGLJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
TXETCLSANF-40.000000	Taitien	TX	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-40°C ~ 85°C
TXETDDSANF-16.000000	Taitien	TX	TCXO	16 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETDCSANF-20.000000	Taitien	TX	TCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-20°C ~ 70°C
TXETBLSANF-40.000000	Taitien	TX	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEABDSANF-32.000000	Taitien	TX	VCTCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-30°C ~ 85°C
TXETDDSANF-30.000000	Taitien	TX	TCXO	30 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETBLSANF-26.000000	Taitien	TX	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEAPDSANF-19.200000	Taitien	TX	VCTCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-30°C ~ 85°C
TXEAPLSANF-40.000000	Taitien	TX	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-40°C ~ 85°C
TXEACDSANF-26.000000	Taitien	TX	VCTCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-30°C ~ 85°C
TXEACDSANF-20.000000	Taitien	TX	VCTCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-30°C ~ 85°C
TXETBLSANF-27.000000	Taitien	TX	TCXO	27 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXETBLSANF-19.200000	Taitien	TX	TCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXETALSANF-26.000000	Taitien	TX	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-40°C ~ 85°C
TXEAACSANF-40.000000	Taitien	TX	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TXEAADSANF-25.000000	Taitien	TX	VCTCXO	25 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-30°C ~ 85°C
TYETBLSANF-38.400000	Taitien	TY	TCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TYETBCSANF-50.000000	Taitien	TY	TCXO	50 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-20°C ~ 70°C
TYETACSANF-32.000000	Taitien	TY	TCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TYETACSANF-20.000000	Taitien	TY	TCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
PYEUCJJANF-100.000000	Taitien	FASTXO	XO (Standard)	100 MHz	CMOS	2.8V ~ 3.3V	±20ppm	-40°C ~ 105°C
TWEAALSANF-10.000000	Taitien	TW	VCTCXO	10 MHz	Clipped Sine Wave	3.3V	±500ppb	-40°C ~ 85°C
TTETKLJANF-30.720000	Taitien	TT	TCXO	30.72 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTEAMCSANF-10.000000	Taitien	TT	VCTCXO	10 MHz	Clipped Sine Wave	3.3V	±100ppb	-20°C ~ 70°C
OYKTGLJANF-0.032768	Taitien	OY	XO (Standard)	32.768 kHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C
OYETDLJANF-25.000000	Taitien	OY	XO	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
TXETDDSANF-19.200000	Taitien	TX	TCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETCLSANF-25.000000	Taitien	TX	TCXO	25 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-40°C ~ 85°C
