BQCSQ-32K76F–YCBHT,BQCSQ晶振,數據通信領域晶振,1610貼片晶振
頻率：32.768kHz
尺寸：1610mm
BQCSQ-32K76F–YCBHT,BQCSQ晶振,數據通信領域晶振,1610貼片晶振,Bliley晶振BQCSQ系進口晶振不僅覆蓋32.768kHz低頻段,還延伸至10MHz~50MHz高頻范圍,專為數據通信設備的高速信號處理場景設計.以BQCSQ-32K76F–YCBHT為基礎衍生的高頻型號,采用與1610封裝一致的小型化設計,可靈活集成于光模塊,5G基帶單元等緊湊設備中.該系列晶振具備低相位噪聲特性(@1kHz偏移:-115dBc/Hz),能減少數據傳輸中的信號干擾,降低誤碼率,提升通信鏈路穩定性.同時,支持12pF,20pF等多規格負載電容,與主流通信芯片(如高通,華為海思基帶芯片)高度兼容,無需調整電路即可快速適配,縮短數據通信設備研發周期.
訂購熱線：0755-27837162
BQCSQ-32K76F–YCBHT,BQCSQ晶振,數據通信領域晶振,1610貼片晶振

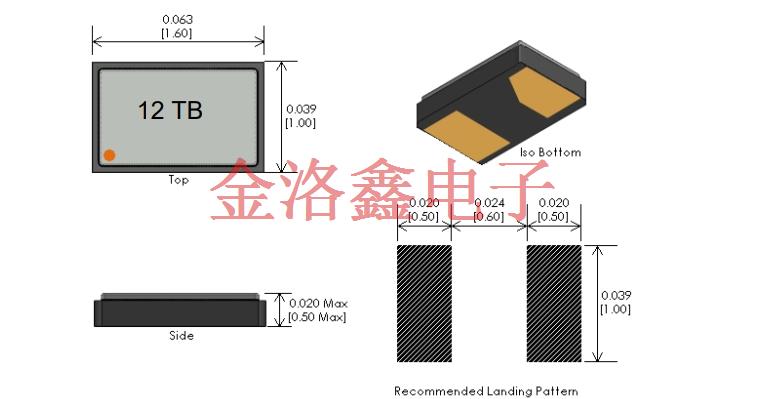

作為Bliley百利晶振數據通信領域研發的核心晶振,BQCSQ-32K76F–YCBHT以32.768kHz標準頻率,為路由器,交換機等數據通信設備的實時時鐘(RTC)系統提供精準時序支撐.其采用1610貼片封裝(1.6mm×1.0mm),是目前小型化封裝的代表性產品,僅占傳統封裝1/3的PCB空間,完美適配數據通信設備高密度電路板布局需求.超低工作電流≤1.2μA,能顯著降低設備整體功耗,尤其適配需長期運行的通信基站備用時鐘模塊.同時,頻率公差控制在±15PPM(常溫),在-40℃~+85℃工業級溫度范圍內穩定輸出,即便在通信機房溫度波動環境下,仍能保障設備時間同步與日志記錄的精準性.
BQCSQ-32K76F–YCBHT,BQCSQ晶振,數據通信領域晶振,1610貼片晶振
| 原廠型號 Original model ： | BQCSQ-32K76F–YCBHT | 品牌 brand ： | Bliley晶振 |
| 品牌 brand ： | Bliley石英晶振 | ESR（等效串聯電阻） Resistance) | - |
| 型號名稱 Model name： | BQCSQ | 溫度 Operating Temperature | -40°C to +85?C |
| Type 系列： | kHz Crystal | 腳位 Termination： | 2 pad |
| 頻率 frequency ： | 32.768kHz | 封裝類型 Package Type： | 2-SMD |
| Frequency Stability頻率穩定度 | - | 高度 Package Height： | 0.5mm |
| frequency tolerance頻率容差 | ±10ppm | 最小包裝數 MPQ ： | 3000 |
| Load capacitance 負載電容 | 9pF | 包裝 Packaging： | Tape and Reel |
| Size / Dimension 尺寸 | 1.6x1.0mm | 安裝方式 Mounting Style： | Surface Mount |
BQCSQ-32K76F–YCBHT,BQCSQ晶振,數據通信領域晶振,1610貼片晶振
BQCSQ-32K76F–YCBHT,BQCSQ晶振,數據通信領域晶振,1610貼片晶振
| OCETGCJTNF-48.000000 | Taitien | OC | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm |
| OXETDCJANF-0.032768 | Taitien | OX | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±25ppm |
| OCETDLJANF-25.000000 | Taitien | OC | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| TZKTADSANF-26.000000 | Taitien | TZ | TCXO | 26 MHz | Clipped Sine Wave | 1.8V | ±500ppb |
| TXEABLSANF-24.000000 | Taitien | TX | VCTCXO | 24 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXEABLSANF-26.000000 | Taitien | TX | VCTCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXKTPCSANF-32.000000 | Taitien | TX | TCXO | 32 MHz | Clipped Sine Wave | 1.8V | ±1.5ppm |
| TXEAADSANF-20.000000 | Taitien | TX | VCTCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TXETALSANF-10.000000 | Taitien | TX | TCXO | 10 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TYETBCSANF-32.000000 | Taitien | TY | TCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TYETBLSANF-40.000000 | Taitien | TY | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TYEAPLSANF-40.000000 | Taitien | TY | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm |
| TYETACSANF-26.000000 | Taitien | TY | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TYEAACSANF-38.400000 | Taitien | TY | VCTCXO | 38.4 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| VLCUWCWTNF-100.000000 | Taitien | VLCU | VCXO | 100 MHz | Sine Wave | 5V | ±35ppm |
| TSEAALJANF-10.000000 | Taitien | TS | VCTCXO | 10 MHz | CMOS | 3.3V | ±500ppb |
| TWETALJANF-40.000000 | Taitien | TW | TCXO | 40 MHz | CMOS | 3.3V | ±500ppb |
| TWEAKLJANF-20.000000 | Taitien | TW | VCTCXO | 20 MHz | CMOS | 3.3V | ±280ppb |
| TTETKLJANF-10.000000 | Taitien | TT | TCXO | 10 MHz | CMOS | 3.3V | ±280ppb |
| TTEAKLJANF-10.000000 | Taitien | TT | VCTCXO | 10 MHz | CMOS | 3.3V | ±280ppb |
| TTETKLSANF-10.000000 | Taitien | TT | TCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±280ppb |
| TSEATLJANF-10.000000 | Taitien | TS | VCTCXO | 10 MHz | CMOS | 3.3V | ±4.6ppm |
| TWETMCJANF-10.000000 | Taitien | TW | TCXO | 10 MHz | CMOS | 3.3V | ±100ppb |
| TTEAALJANF-50.000000 | Taitien | TT | VCTCXO | 50 MHz | CMOS | 3.3V | ±500ppb |
| NNENCLJNNF-10.000000 | Taitien | NN | OCXO | 10 MHz | CMOS | 3.3V | ±20ppb |
| NI-10M-2400 | Taitien | NI-10M-2400 | OCXO | 10 MHz | LVTTL | 5V | ±3ppb |
| NI-10M-2403 | Taitien | NI-10M-2400 | OCXO | 10 MHz | LVTTL | 5V | ±3ppb |
| NI-10M-2503 | Taitien | NI-10M-2500 | OCXO | 10 MHz | Sine Wave | 5V | ±3ppb |
| NI-100M-2900 | Taitien | NI-100M-2900 | OCXO | 100 MHz | Sine Wave | 12V | ±50ppb |
| NA-100M-6822 | Taitien | NA-100M-6800 | OCXO | 100 MHz | Sine Wave | 12V | ±100ppb |
| OCKTGLJANF-0.032768 | Taitien | OC | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±50ppm |
| OCETGLJTNF-100.000000 | Taitien | OC | XO (Standard) | 100 MHz | CMOS | 3.3V | ±50ppm |
| TXETCLSANF-40.000000 | Taitien | TX | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm |
| TXETDDSANF-16.000000 | Taitien | TX | TCXO | 16 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm |
| TXETDCSANF-20.000000 | Taitien | TX | TCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm |
| TXETBLSANF-40.000000 | Taitien | TX | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXEABDSANF-32.000000 | Taitien | TX | VCTCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXETDDSANF-30.000000 | Taitien | TX | TCXO | 30 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm |
| TXETBLSANF-26.000000 | Taitien | TX | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXEAPDSANF-19.200000 | Taitien | TX | VCTCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm |
| TXEAPLSANF-40.000000 | Taitien | TX | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm |
| TXEACDSANF-26.000000 | Taitien | TX | VCTCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm |
| TXEACDSANF-20.000000 | Taitien | TX | VCTCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm |
| TXETBLSANF-27.000000 | Taitien | TX | TCXO | 27 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXETBLSANF-19.200000 | Taitien | TX | TCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXETALSANF-26.000000 | Taitien | TX | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TXEAACSANF-40.000000 | Taitien | TX | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TXEAADSANF-25.000000 | Taitien | TX | VCTCXO | 25 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TYETBLSANF-38.400000 | Taitien | TY | TCXO | 38.4 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TYETBCSANF-50.000000 | Taitien | TY | TCXO | 50 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TYETACSANF-32.000000 | Taitien | TY | TCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TYETACSANF-20.000000 | Taitien | TY | TCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| PYEUCJJANF-100.000000 | Taitien | FASTXO | XO (Standard) | 100 MHz | CMOS | 2.8V ~ 3.3V | ±20ppm |
| TWEAALSANF-10.000000 | Taitien | TW | VCTCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
| TTETKLJANF-30.720000 | Taitien | TT | TCXO | 30.72 MHz | CMOS | 3.3V | ±280ppb |
| TTEAMCSANF-10.000000 | Taitien | TT | VCTCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±100ppb |
| OYKTGLJANF-0.032768 | Taitien | OY | XO (Standard) | 32.768 kHz | CMOS | 1.8V | ±50ppm |
| OYETDLJANF-25.000000 | Taitien | OY | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| TXETDDSANF-19.200000 | Taitien | TX | TCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm |
| TXETCLSANF-25.000000 | Taitien | TX | TCXO | 25 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm |
